FRC800 K1 A (FAHJ) - Honda 20" Tiller, Made in Japan (SN: FAHJ-1100001 - FAHJ-9999999) CONTROL Parts Diagram

20" Tiller, Made in Japan

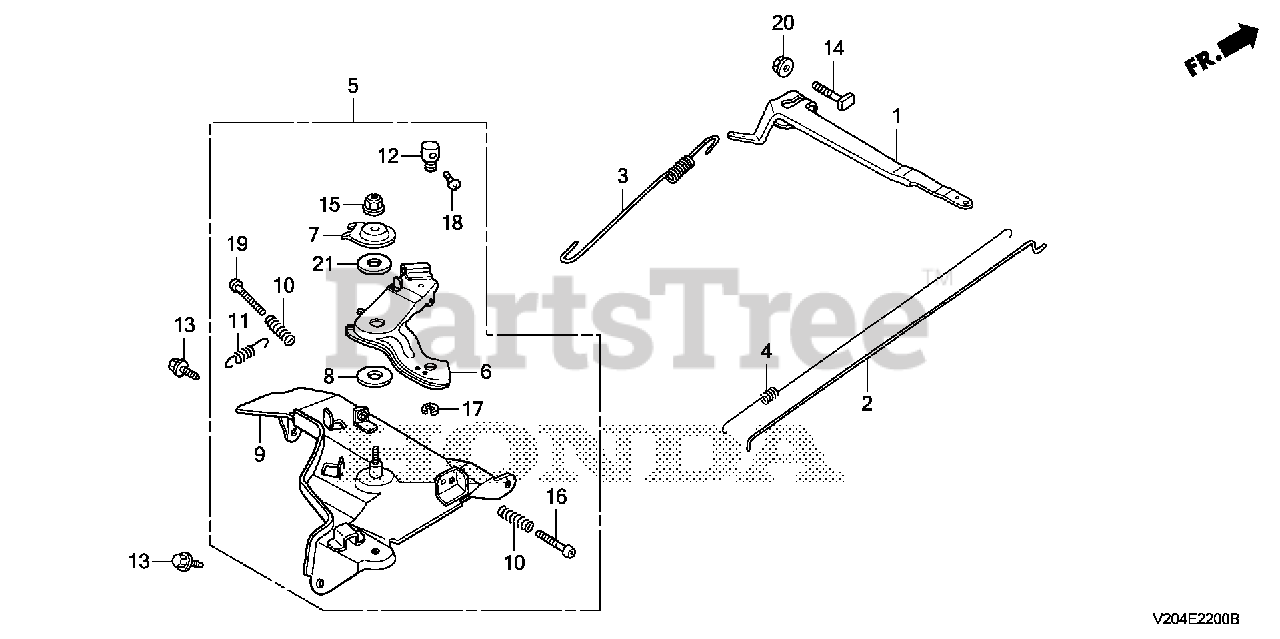

CONTROL Parts Diagram

  • Title

1

Honda 16551-ZE2-000

ARM, GOVERNOR

$18.99

$

Usually ships in 3-6 days

0

2

Honda 16555-ZE2-000

ROD, GOVERNOR

$5.49

$

In Stock, only 1 left!

0

3

Honda 16561-ZE2-000

SPRING, GOVERNOR (L=145.0MM) (WIRE DIAMETER 1.0MM)

$5.99

$

In Stock, only 1 left!

0

4

Honda 16562-ZE2-000

SPRING, THROTTLE RETURN

$4.99

$

In Stock, only 1 left!

0

5

Honda 16500-Z8V-305

CONTROL ASSY. (COO)
(Superseded to 16500-Z8V-A00)

$61.99

$

Usually ships in 3-6 days

0

6

Honda 16571-ZE2-A00

LEVER, CONTROL

$10.99

$

Usually ships in 3-6 days

0

7

Honda 16575-ZE2-W00

WASHER, CONTROL LEVER

$5.49

$

Usually ships in 3-6 days

0

8

Honda 16578-ZE1-000

SPACER, CONTROL LEVER

$5.49

$

In Stock, only 4 left!

0

9

Honda 16580-Z8V-A00

BASE, CONTROL

$28.99

$

Usually ships in 3-6 days

0

10

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

$4.99

$

In Stock, Qty 7

0

11

Honda 16592-883-310

SPRING, CABLE RETURN

$3.49

$

In Stock, only 2 left!

0

12

Honda 16617-ZJ1-840

HOLDER, CABLE

$5.99

$

Usually ships in 3-6 days

0

13

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

14

Honda 90015-Z5T-000

BOLT, GOVERNOR ARM

$0.99

$

Usually ships in 3-6 days

0

15

Honda 90114-SA0-000

NUT, SELF-LOCK (6MM)

$4.49

$

Usually ships in 3-6 days

0

16

Honda 93500-05025-0A

SCREW, PAN (5X25)

$1.49

$

Usually ships in 3-6 days

0

17

Honda 90605-230-000

CIRCLIP (5MM)

$3.99

$

In Stock, only 3 left!

0

18

Honda 93500-04006-0H

SCREW, PAN (4X6)

$1.49

$

In Stock, Qty 8

0

19

Honda 93500-05028-0A

SCREW, PAN (5X28)

$1.49

$

In Stock, Qty 5

0

20

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

21

Honda 16574-ZE1-000

SPRING, LEVER

$4.49

$

In Stock, only 2 left!

0
