FRC800 K1 A (FAHJ) - Honda 20" Tiller, Made in Japan (SN: FAHJ-1100001 - FAHJ-9999999) CARBURETOR Parts Diagram

20" Tiller, Made in Japan

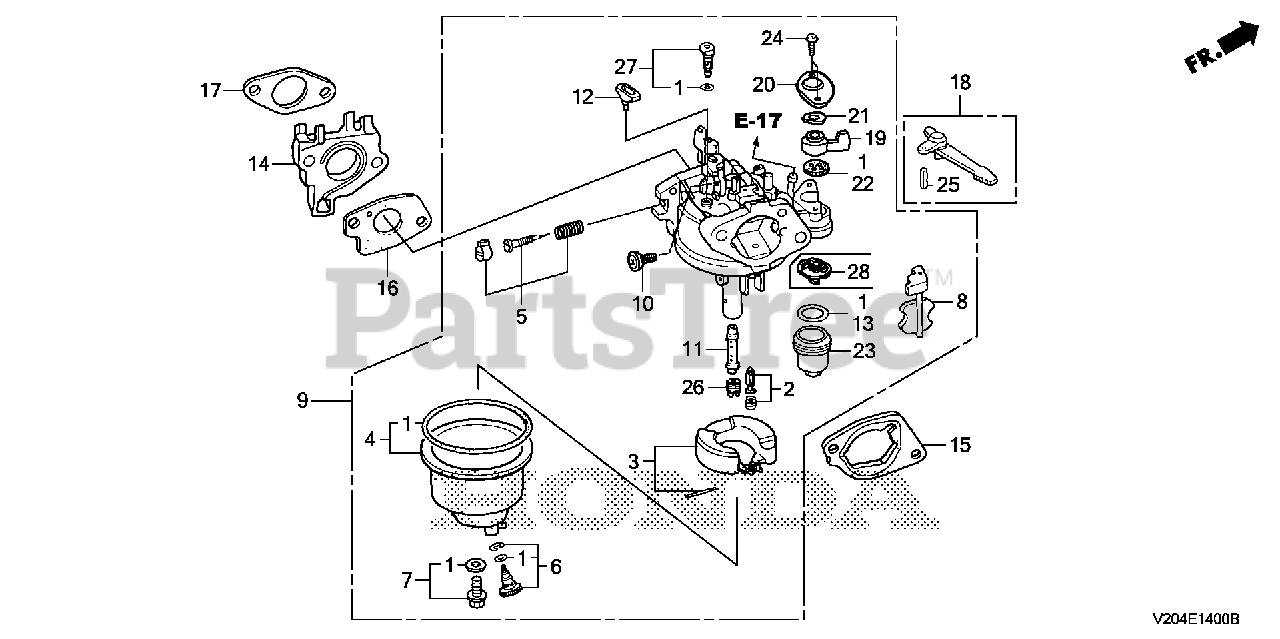

CARBURETOR Parts Diagram

  • Title
1

Honda 16010-ZE2-A20

GASKET SET

$20.99

$

In Stock, only 1 left!

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT

$45.99

$

In Stock, only 1 left!

0

3

$55.99

$

Usually ships in 3-6 days

0

4

Honda 16015-Z1C-H61

CHAMBER SET, FLOAT

$16.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZH7-W01

SCREW SET, PILOT

$21.99

$

Usually ships in 3-6 days

0

6

Honda 16024-ZH7-A20

SCREW SET, DRAIN

$11.99

$

Usually ships in 3-6 days

0

7

$5.99

$

In Stock, only 2 left!

0

8

$37.99

$

Usually ships in 3-6 days

0

9

Honda 16100-Z8V-A01

CARBURETOR ASSY. (BE80U A)

$197.99

$

Usually ships in 3-6 days

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

11

Honda 16166-Z8S-901

NOZZLE, MAIN

$27.99

$

Usually ships in 3-6 days

0

12

Honda 16172-ZE3-W10

COLLAR, SETTING

$10.99

$

Usually ships in 3-6 days

0

13

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

$7.49

$

In Stock, only 2 left!

0

14

Honda 16211-ZE2-010

SEE PART DETAILS - PRI; INSULATOR, CARBURETOR

$10.99

$

In Stock, Qty 11

0

15

Honda 16220-ZA0-702

SPACER, CARBURETOR

$11.99

$

In Stock, only 4 left!

0

16

Honda 16221-Z5K-000

GASKET, CARBURETOR

$1.49

$

In Stock, Qty 20+

0

17

Honda 16212-Z5K-000

GASKET, INSULATOR

$0.99

$

In Stock, Qty 19

0

18

Honda 16610-ZE1-000

LEVER, CHOKE (STD)

$11.99

$

In Stock, Qty 8

0

19

Honda 16953-ZE1-812

LEVER, PETCOCK

$10.99

$

In Stock, Qty 10

0

20

Honda 16954-ZE1-812

PLATE, LEVER SETTING

$4.49

$

In Stock, only 1 left!

0

21

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER

$4.49

$

Usually ships in 3-6 days

0

22

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK

$4.49

$

In Stock, Qty 20+

0

23

Honda 16967-ZE0-811

CUP, FUEL STRAINER

$23.99

$

In Stock, only 3 left!

0

24

Honda 93500-03006-0H

SCREW, PAN (3X6)

$1.49

$

In Stock, only 3 left!

0

25

Honda 94305-20122

PIN, SPRING (2X12)

$2.49

$

In Stock, only 4 left!

0

26

Honda 99101-ZH8-0920

JET, MAIN (#92)

Note: (Optional).

$8.49

$

In Stock, only 1 left!

0

26

Honda 99101-ZH8-0950

JET, MAIN (#95)

Note: (Optional).

$7.99

$

In Stock, Qty 11

0

26

Honda 99101-ZH8-0980

JET, MAIN (#98)

$7.99

$

In Stock, only 1 left!

0

27

Honda 99204-ZA0-0380

JET SET, PILOT (#38)

$17.99

$

Usually ships in 3-6 days

0

28

Honda 16959-Z5T-901

FILTER, CUP

$8.99

$

In Stock, only 1 left!

0
