FRC800 K1 A (FAHJ) - Honda 20" Tiller, Made in Japan (SN: FAHJ-1100001 - FAHJ-9999999) CAMSHAFT Parts Diagram

20" Tiller, Made in Japan

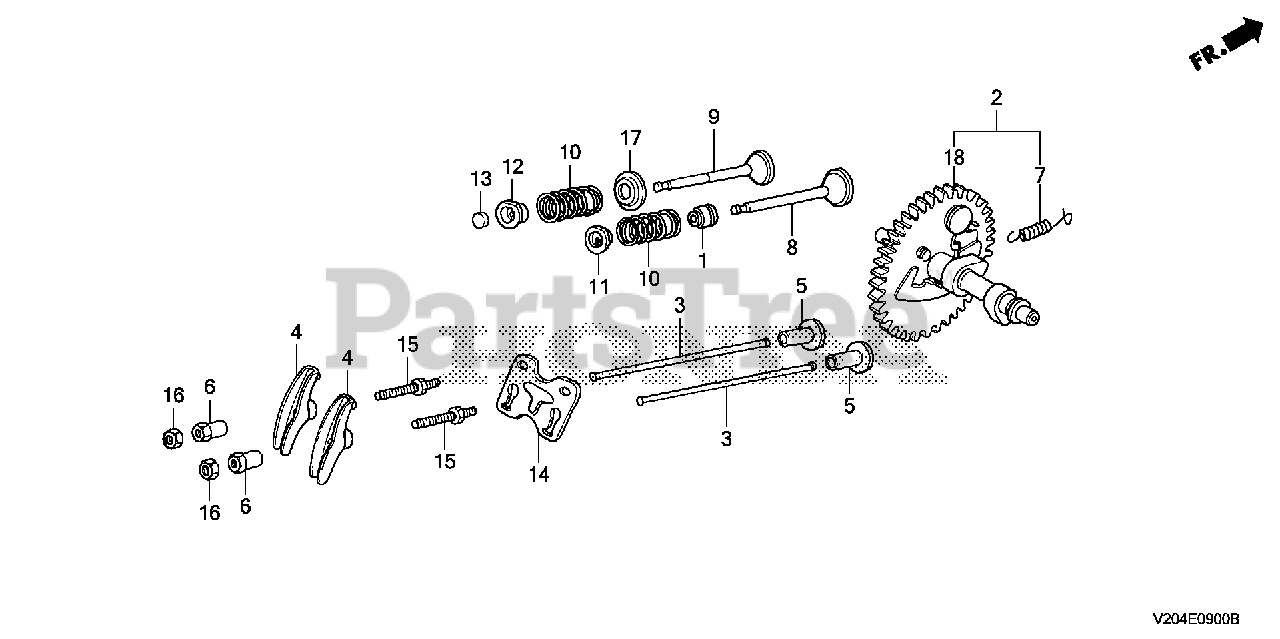

CAMSHAFT Parts Diagram

  • Title

1

Honda 12209-ZE8-003

SEAL, VALVE STEM

$9.49

$

In Stock, Qty 15

0

3

Honda 14410-Z1D-000

ROD, PUSH

$8.99

$

Usually ships in 3-6 days

0

4

Honda 14431-ZE2-010

SEE PART DETAILS - PRI; ARM, VALVE ROCKER

$10.99

$

In Stock, Qty 20+

0

5

Honda 14441-ZE2-000

LIFTER, VALVE

$18.99

$

In Stock, only 2 left!

0

6

Honda 14451-ZE1-013

SEE PART DETAILS - SUP; PIVOT, ROCKER ARM
(Superseded to 14451-Z4M-000)

$6.49

$

In Stock, Qty 12

0

6

Honda 14451-Z4M-000

SEE PART DETAILS - PRI; PIVOT, ROCKER ARM

$6.49

$

In Stock, Qty 12

0

8

Honda 14711-Z5K-000

VALVE, IN.
(Superseded to 14711-Z5K-900)

Note: Use up to Engine SN 1014838.

$8.99

$

In Stock, Qty 11

0

8

Honda 14711-Z5K-900

VALVE, IN.

Note: Use from Engine SN 1014839.

$8.99

$

In Stock, Qty 11

0

9

Honda 14721-Z5K-000

VALVE, EX.
(Superseded to 14721-Z5K-900)

Note: Use up to Engine SN 1014838.

$11.99

$

In Stock, only 2 left!

0

9

Honda 14721-Z5K-900

VALVE, EX.

Note: Use from Engine SN 1014839.

$11.99

$

In Stock, only 2 left!

0

10

Honda 14751-Z1C-000

SPRING, VALVE

$5.99

$

In Stock, only 2 left!

0

11

Honda 14771-Z8S-000

SEE PART DETAILS - PRI; RETAINER, IN. VALVE SPRING

$2.99

$

In Stock, Qty 10

0

12

Honda 14771-Z8S-000

SEE PART DETAILS - PRI; RETAINER, IN. VALVE SPRING (EXHAUST SIDE)

$2.99

$

In Stock, Qty 10

0

14

Honda 14791-Z1D-000

GUIDE, PUSH ROD

$0.99

$

In Stock, only 4 left!

0

15

Honda 90012-ZE0-010

BOLT, PIVOT (8MM)

$9.49

$

In Stock, only 2 left!

0

16

Honda 90206-ZE1-000

NUT, PIVOT ADJUSTING

$4.49

$

In Stock, Qty 12

0

17

Honda 14775-ZE2-010

SEAT, VALVE SPRING

$4.49

$

In Stock, Qty 12

0

18

Honda 14100-Z5K-910

CAMSHAFT (STD) (PRESS FIT CAM)
(Superseded to 14100-Z5K-911)

$90.99

$

In Stock, only 3 left!

0
