FRC800 K1 A (FAHJ) - Honda 20" Tiller, Made in Japan (SN: FAHJ-1100001 - FAHJ-9999999) BELT COVER + PULLEY Parts Diagram

20" Tiller, Made in Japan

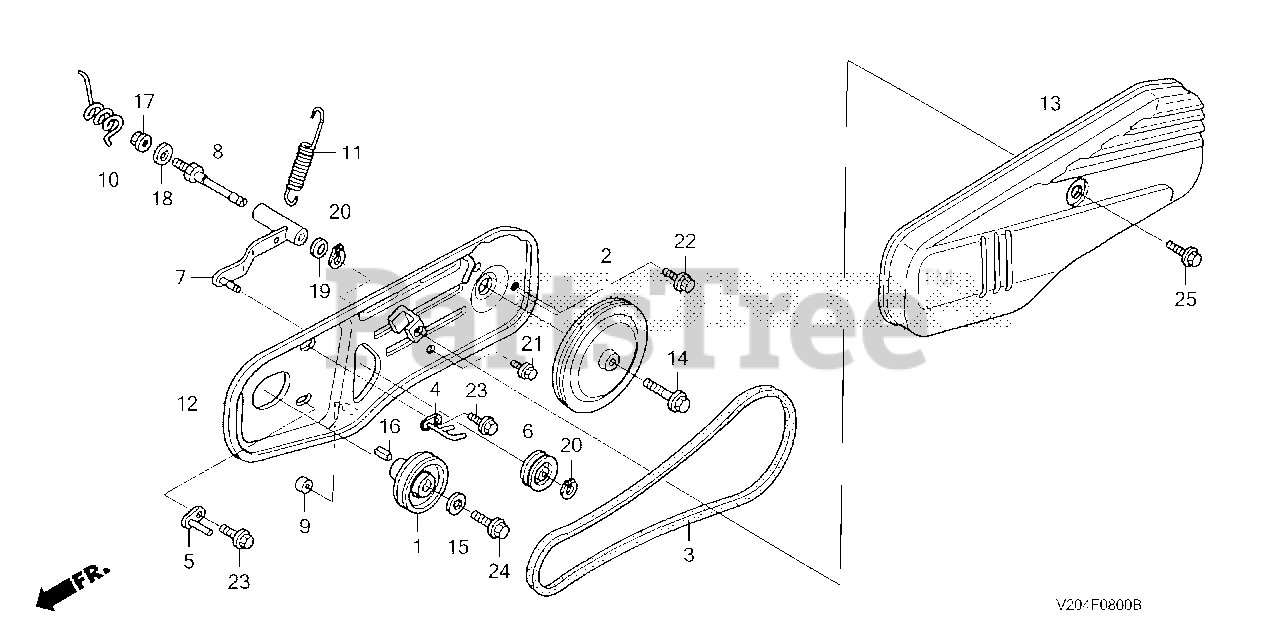

BELT COVER + PULLEY Parts Diagram

  • Title

1

Honda 22411-765-000

PULLEY, DRIVE (80MM)

$54.99

$

In Stock, only 1 left!

0

2

Honda 22422-765-000

PULLEY, DRIVEN (165MM)

$89.99

$

Usually ships in 3-6 days

0

3

Honda 22431-765-631

V-BELT (SB-48)

$86.99

$

In Stock, only 2 left!

0

4

Honda 22441-V20-003

STOPPER, BELT

$11.99

$

Usually ships in 3-6 days

0

5

Honda 22442-790-700

STOPPER A, BELT

$16.99

$

In Stock, only 1 left!

0

6

Honda 22465-V20-003

ROLLER, TENSIONER

$65.99

$

Usually ships in 3-6 days

0

7

Honda 22520-V20-003ZA

ARM, TENSION *NH105* (MAT BLACK)

$41.99

$

Usually ships in 3-6 days

0

8

Honda 22523-V20-013

SHAFT, TENSIONER ARM

$36.99

$

Usually ships in 3-6 days

0

9

Honda 22526-790-000

STOPPER, TENSIONER ARM

$7.49

$

Usually ships in 3-6 days

0

10

Honda 22529-V20-003

SPRING, TENSIONER ARM RETURN

$5.99

$

Usually ships in 3-6 days

0

11

Honda 22531-790-000

SPRING, BELT TENSIONER

$23.99

$

Usually ships in 3-6 days

0

12

Honda 50651-V20-821ZA

COVER, BELT (INNER) *R280* (POWER RED)

$64.99

$

Usually ships in 3-6 days

0

13

Honda 63611-790-000ZB

COVER, BELT *R280* (POWER RED)

$125.99

$

Usually ships in 3-6 days

0

14

Honda 90101-733-000

BOLT, FLANGE (8X18)

$4.99

$

In Stock, only 1 left!

0

15

Honda 90534-706-010

WASHER, LOCK (8.5X35X4.5)

$7.49

$

Usually ships in 3-6 days

0

16

Honda 90752-V20-003

KEY (7X7X30)

$3.99

$

Usually ships in 3-6 days

0

17

Honda 94050-10080

NUT, FLANGE (10MM)

$3.99

$

In Stock, Qty 20+

0

18

Honda 94101-10800

WASHER, PLAIN (10MM)

$2.99

$

Usually ships in 3-6 days

0

19

Honda 94101-12800

WASHER, PLAIN (12MM)

$1.99

$

Usually ships in 3-6 days

0

20

Honda 94510-12000

CIRCLIP, OUTER (12MM)

$2.99

$

In Stock, only 3 left!

0

21

Honda 95701-06010-08

BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 20+

0

22

Honda 95701-08012-08

BOLT, FLANGE (8X12)

$2.49

$

Usually ships in 3-6 days

0

23

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.49

$

In Stock, only 3 left!

0

24

Honda 95701-08028-08

BOLT, FLANGE (8X28)

$2.99

$

In Stock, Qty 5

0

25

Honda 95701-10016-08

BOLT, FLANGE (10X16)

$3.49

$

Usually ships in 3-6 days

0
