FRC800 K1 A (FAHJ) - Honda 20" Tiller, Made in Japan (SN: FAHJ-1100001 - FAHJ-9999999) AIR CLEANER Parts Diagram

20" Tiller, Made in Japan

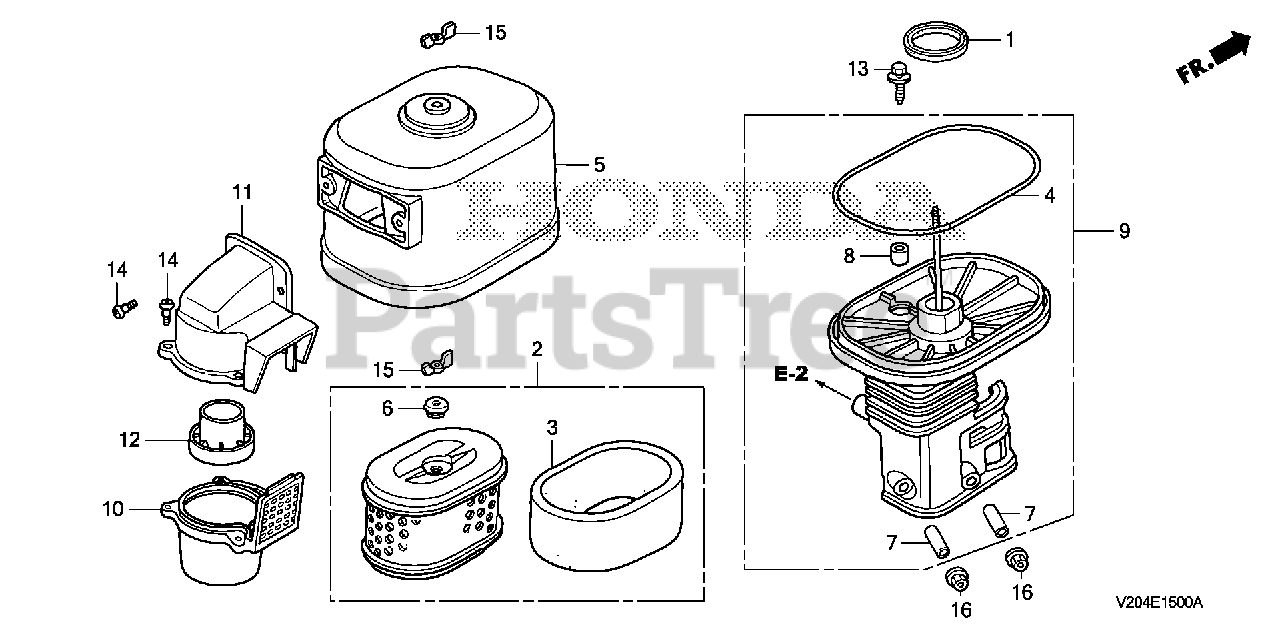

AIR CLEANER Parts Diagram

  • Title

1

Honda 16271-ZE2-010

GASKET, ELBOW

$3.49

$

In Stock, Qty 11

0

2

Honda 17210-ZE3-010

SEE PART DETAILS - SUP; ELEMENT, AIR CLEANER
(Superseded to 17210-ZE3-505)

$21.99

$

In Stock, Qty 20+

0

2

Honda 17210-ZE3-505

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER

$21.99

$

In Stock, Qty 20+

0

3

Honda 17218-ZE3-505

FILTER (OUTER)
(Superseded to 17218-ZE3-000)

$

$

Not available

4

Honda 17219-HA2-405

SEE PART DETAILS - PRI; SEAL, AIR CLEANER COVER

$8.49

$

In Stock, only 1 left!

0

4

Honda 17219-KL4-000

SEE PART DETAILS - SUP; SEAL, AIR CLEANER COVER
(Superseded to 17219-HA2-405)

$8.49

$

In Stock, only 1 left!

0

5

Honda 17230-ZE3-841

COVER, AIR CLEANER (CYCLONE)

$44.99

$

In Stock, only 1 left!

0

6

Honda 17232-891-000

GROMMET, AIR CLEANER

$5.99

$

In Stock, Qty 16

0

7

Honda 17238-ZE2-310

COLLAR, AIR CLEANER

$4.99

$

In Stock, Qty 10

0

8

Honda 17239-ZE3-840

COLLAR B, AIR CLEANER

$3.99

$

Usually ships in 3-6 days

0

9

Honda 17410-ZE3-840

SEE PART DETAILS - SUP; ELBOW, AIR CLEANER
(Superseded to 17410-ZE3-841)

Note: Use up to Engine SN 1012735.

$35.99

$

In Stock, only 1 left!

0

9

Honda 17410-ZE3-841

SEE PART DETAILS - PRI; ELBOW, AIR CLEANER

$35.99

$

In Stock, only 1 left!

0

10

Honda 17470-ZE3-842

SEE PART DETAILS - PRI; CASE, PRE AIR CLEANER

$26.99

$

In Stock, only 1 left!

0

11

Honda 17475-ZE3-841

CAP, PRE AIR CLEANER

$27.99

$

In Stock, only 1 left!

0

12

Honda 17476-ZE3-841

GUIDE, PRE AIR CLEANER

$18.99

$

In Stock, only 1 left!

0

13

Honda 90009-Z1C-000

BOLT-WASHER (6X22)

$2.49

$

Usually ships in 3-6 days

0

14

Honda 90142-MB0-000

SCREW, PAN (5X16.5)

$3.49

$

In Stock, only 4 left!

0

15

Honda 90325-044-000

NUT, TOOL BOX SETTING

$5.49

$

In Stock, Qty 20+

0

16

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0
