FRC800 AC (FAHJ) - Honda 20" Tiller, Made in Japan (SN: FAHJ-1000001 - FAHJ-9999999) CYLINDER HEAD Parts Diagram

20" Tiller, Made in Japan

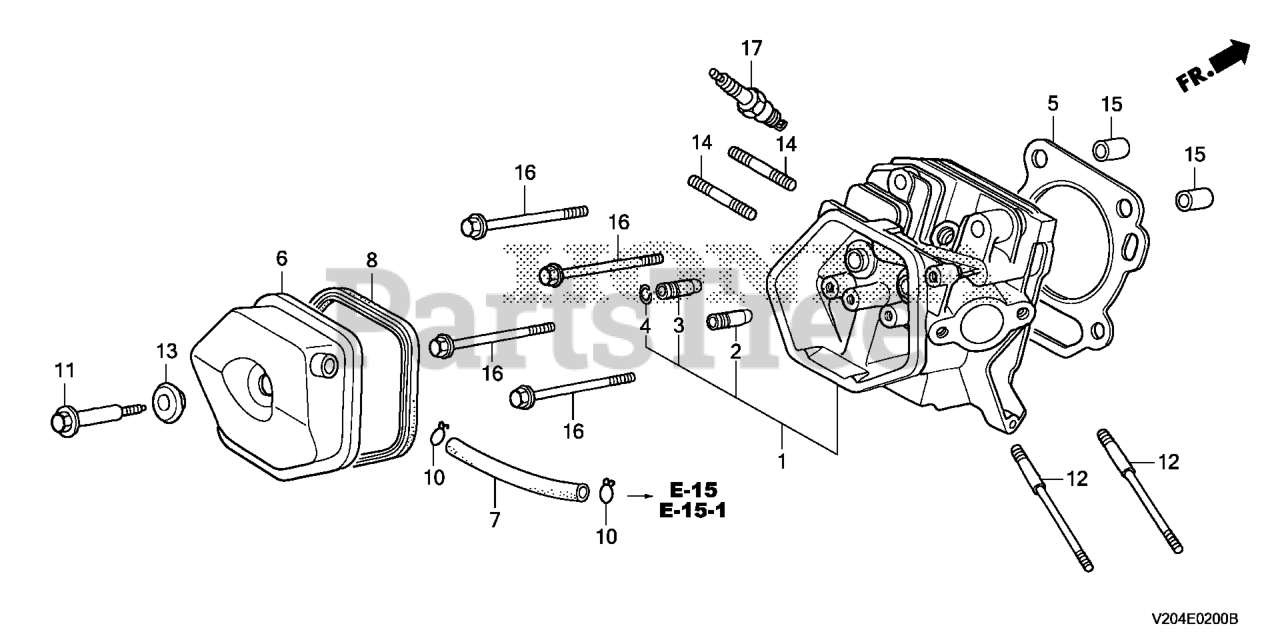

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12200-ZH9-405

SEE PART DETAILS - PRI; CYLINDER HEAD

$332.99

$

Usually ships in 3-6 days

0

2

Honda 12204-ZE2-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OS) (Honda Code 4179164).

$

$

Not available

3

Honda 12205-ZE2-305

SEE PART DETAILS - PRI; GUIDE, EX. VALVE (OS) (Honda Code 2089563).

$

$

Not available

4

Honda 12216-ZE2-300

CLIP, VALVE GUIDE (Honda Code 2089597).

$2.49

$

In Stock, Qty 5

0

5

Honda 12251-ZE2-800

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD (Honda Code 3678539).
(Superseded to 12251-ZE2-801)

$14.99

$

Usually ships in 3-6 days

0

5

Honda 12251-ZE2-801

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD

$14.99

$

Usually ships in 3-6 days

0

6

Honda 12310-ZE3-791

COVER, HEAD (BREATHER TUBE JOINT)

$50.99

$

Usually ships in 3-6 days

0

7

Honda 12315-ZE3-840

TUBE, BREATHER (Honda Code 2660413).

$6.99

$

Usually ships in 3-6 days

0

8

Honda 12391-ZE2-020

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD COVER (Honda Code 4300893).

$11.99

$

In Stock, Qty 6

0

10

Honda 17316-611-000

CLIP, BREATHER TUBE (Honda Code 0340984).

$13.99

$

Usually ships in 3-6 days

0

11

Honda 90014-ZE2-000

BOLT, HEAD COVER (Honda Code 2027035).

$6.99

$

In Stock, only 1 left!

0

12

Honda 90042-ZE2-000

BOLT, STUD (8X123) (Honda Code 2027043).

$8.99

$

In Stock, only 2 left!

0

13

Honda 90441-ZE2-010

SEE PART DETAILS - PRI; WASHER, HEAD COVER (Honda Code 2293918).

$6.49

$

In Stock, Qty 6

0

14

Honda 92900-08032-0E

SEE PART DETAILS - PRI; BOLT 2, STUD (8X32) (Honda Code 2663433).

$2.99

$

In Stock, Qty 9

0

15

Honda 94301-12200

SEE PART DETAILS - PRI; PIN A, DOWEL (12X20) (Honda Code 0165324).

$3.49

$

Usually ships in 3-6 days

0

16

Honda 95701-10080-00

SEE PART DETAILS - PRI; BOLT, FLANGE (10X80) (Honda Code 2545341).

$4.49

$

In Stock, only 3 left!

0

17

Honda 98079-56846

SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK) (Honda Code 1441112).

$3.49

$

In Stock, Qty 20+

0

17

Honda 98079-56855

SPARK PLUG (W20EPR-U) (DENSO) (Honda Code 1441120).

$3.99

$

In Stock, only 1 left!

0
