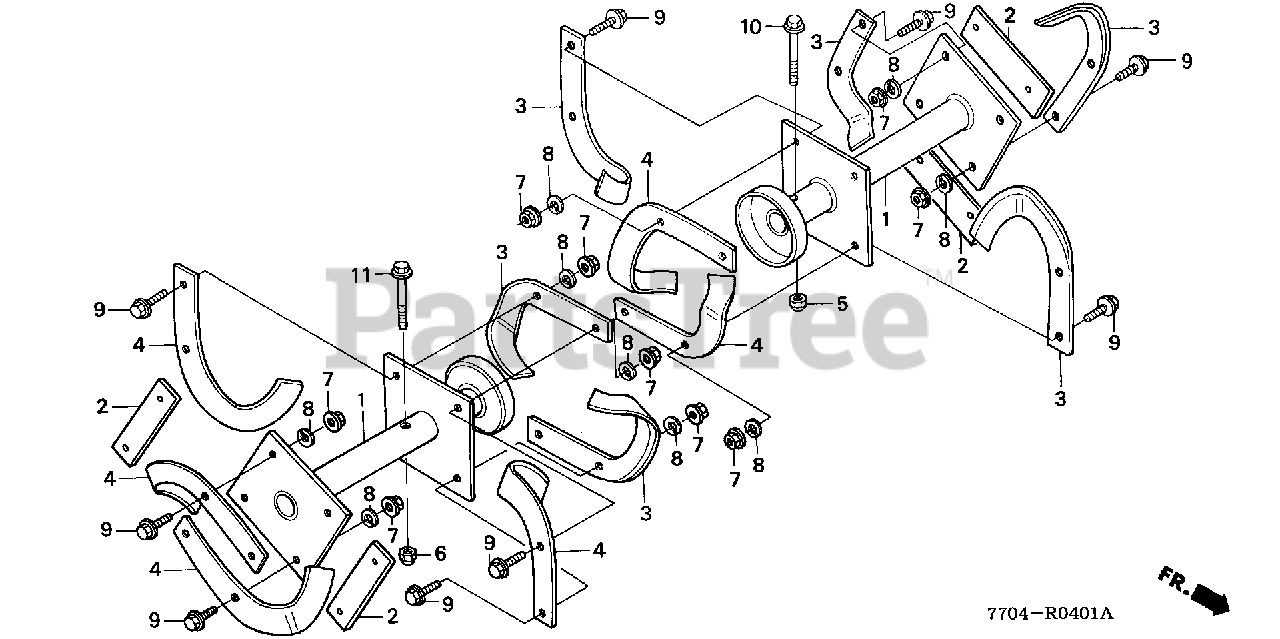

FR800 AC/C (FZAW) - Honda 20" Tiller, Made in Japan (SN: FZAW-2110001 - FZAW-9999999) ROTARY TINE (2) Parts Diagram

20" Tiller, Made in Japan

ROTARY TINE (2) Parts Diagram

  • Title
1

Honda 72110-770-890

SHAFT, ROTARY PIPE

$119.99

$

Usually ships in 3-6 days

0

2

Honda 72114-770-890

PLATE, TINE

$22.99

$

Usually ships in 3-6 days

0

3

Honda 72461-770-891

TINE A, ROTARY

$23.99

$

Usually ships in 3-6 days

0

4

Honda 72465-770-891

TINE B, ROTARY

$23.99

$

Usually ships in 3-6 days

0

5

Honda 90110-679-003

NUT, SELF-LOCK (8MM)

$8.49

$

In Stock, only 4 left!

0

6

Honda 90303-692-003

NUT, SELF-LOCK (10MM)

$9.99

$

In Stock, only 1 left!

0

7

Honda 94050-10080

NUT, FLANGE (10MM)

$3.99

$

In Stock, Qty 20+

0

8

Honda 94111-10800

WASHER, SPRING (10MM)

$1.99

$

In Stock, only 1 left!

0

9

Honda 95701-10030-08

BOLT, FLANGE (10X30)

$2.99

$

In Stock, Qty 8

0

10

Honda 95801-08050-08

BOLT, FLANGE (8X50)

$1.99

$

Usually ships in 3-6 days

0

11

Honda 95801-10050-08

BOLT, FLANGE (10X50)

$3.99

$

Usually ships in 3-6 days

0
