FR800 AC/C (FZAW) - Honda 20" Tiller, Made in Japan (SN: FZAW-2110001 - FZAW-9999999) FR800 CYLINDER HEAD Parts Diagram

20" Tiller, Made in Japan

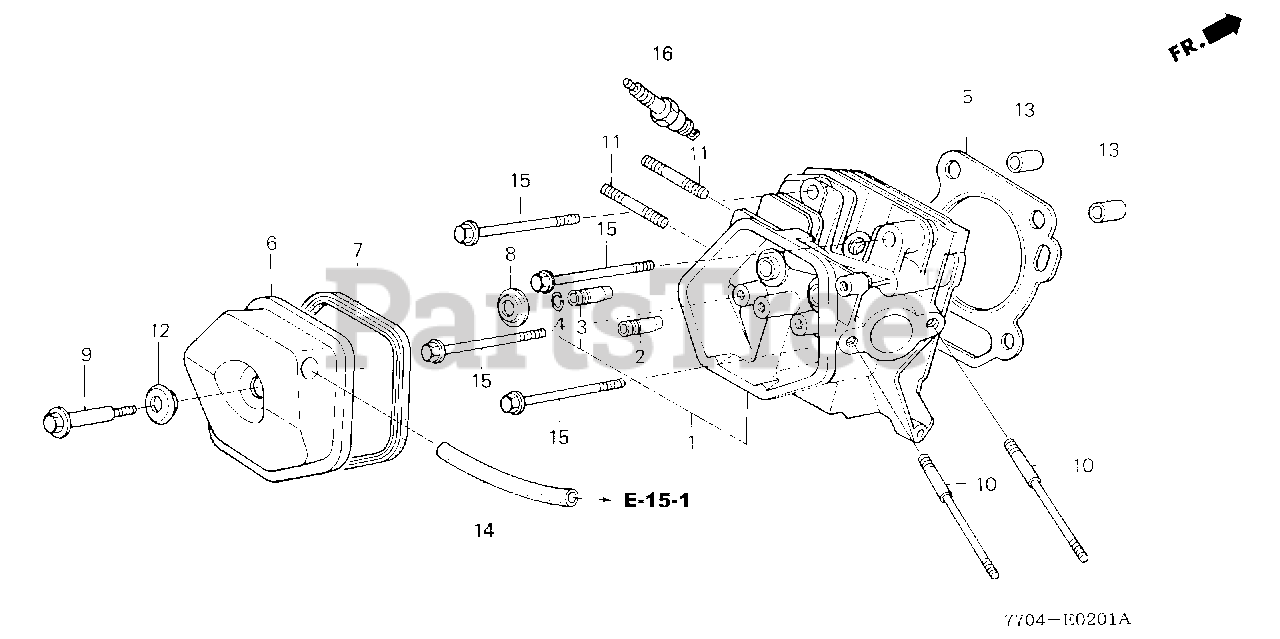

FR800 CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12200-ZH9-405

CYLINDER HEAD

$356.99

$

Usually ships in 3-6 days

0

2

Honda 12204-ZE2-306

GUIDE, VALVE (OVER SIZE)

Note: (Optional).

$

$

Not available

3

Honda 12205-ZE2-305

GUIDE, EX. VALVE (OVER SIZE)

Note: (Optional).

$

$

Not available

4

Honda 12216-ZE2-300

CLIP, VALVE GUIDE

$2.49

$

In Stock, Qty 5

0

5

Honda 12251-ZE2-800

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD
(Superseded to 12251-ZE2-801)

$15.99

$

Usually ships in 3-6 days

0

5

Honda 12251-ZE2-801

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD

$15.99

$

Usually ships in 3-6 days

0

6

Honda 12310-ZE2-020

COVER, HEAD

$61.99

$

In Stock, only 1 left!

0

7

Honda 12391-ZE2-020

SEE PART DETAILS - PRI; GASKET, HEAD COVER

$12.99

$

In Stock, Qty 20+

0

8

Honda 14775-ZE2-010

SEAT, VALVE SPRING

$3.99

$

In Stock, only 2 left!

0

9

Honda 90014-ZE2-000

BOLT, HEAD COVER

$6.99

$

In Stock, only 1 left!

0

10

Honda 90042-ZE2-000

BOLT, STUD (8X123)

$9.49

$

Usually ships in 3-6 days

0

11

Honda 92900-08032-0E

SEE PART DETAILS - PRI; BOLT, STUD (8X32)

$2.99

$

In Stock, Qty 20+

0

12

Honda 90441-ZE2-010

WASHER, HEAD COVER

$6.99

$

In Stock, Qty 12

0

13

Honda 94301-12200

PIN, DOWEL (12X20)

$3.49

$

Usually ships in 3-6 days

0

14

Honda 95005-11001-30M

BULK HOSE, VACUUM (11X1000) (11X100)

$38.99

$

Usually ships in 3-6 days

0

15

Honda 95701-10080-00

BOLT, FLANGE (10X80)

$4.49

$

In Stock, only 3 left!

0

16

Honda 98079-55846

SPARK PLUG (BPR5ES) (NGK)

$3.99

$

In Stock, Qty 20+

0

16

Honda 98079-55855

SPARK PLUG (W16EPR-U) (DENSO)

$3.49

$

Usually ships in 3-6 days

0
