FR800 AC/C (FZAW) - Honda 20" Tiller, Made in Japan (SN: FZAW-2110001 - FZAW-9999999) CHANGE LEVER Parts Diagram

20" Tiller, Made in Japan

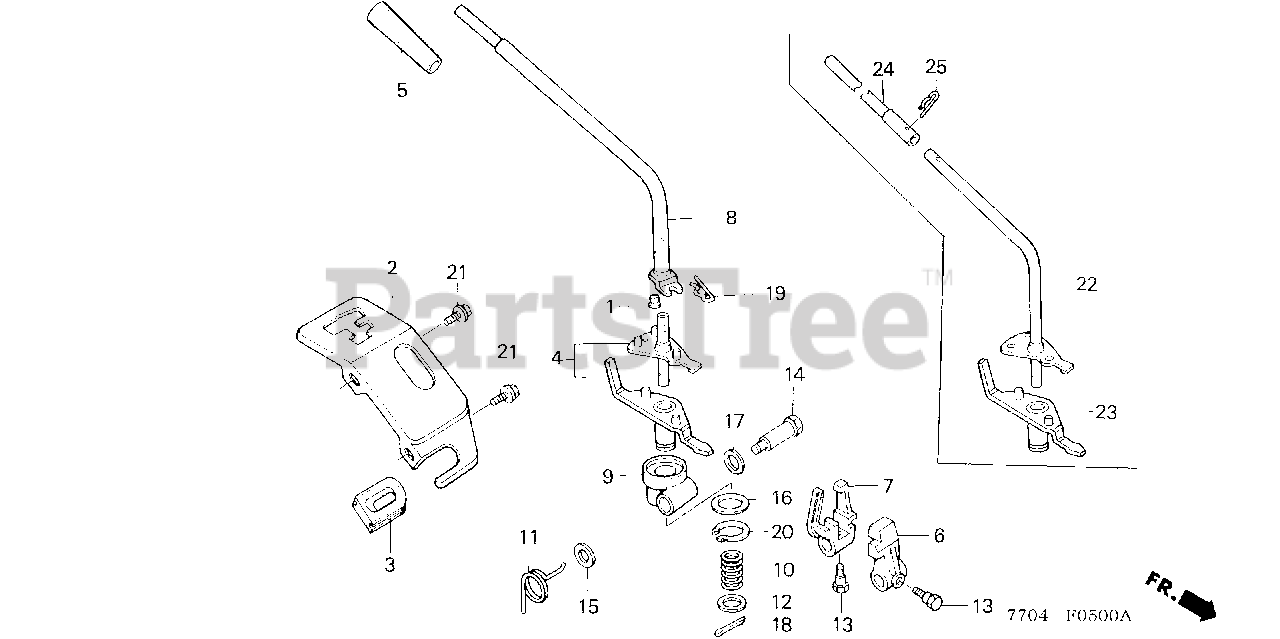

CHANGE LEVER Parts Diagram

  • Title

2

Honda 21311-734-634ZA

COVER, CHANGE *NH35M* (CLOUD SILVER METALLIC)

$21.99

$

Usually ships in 3-6 days

0

3

Honda 21319-727-640

GROMMET, CABLE

$6.49

$

Usually ships in 3-6 days

0

5

Honda 24411-734-A00

GRIP, CHANGE LEVER (ORANGE)

$8.99

$

Usually ships in 3-6 days

0

6

Honda 24431-734-000

ARM A, CHANGE

$

$

Not available

7

Honda 24441-734-020

ARM B, CHANGE

$

$

Not available

9

Honda 24461-734-020

SEE PART DETAILS - PRI; HOLDER, SELECT LEVER

$30.99

$

Usually ships in 3-6 days

0

10

Honda 24462-734-000

SPRING, CHANGE LEVER SETTING

$3.49

$

In Stock, only 3 left!

0

11

Honda 24466-734-000

SPRING, CHANGE LEVER RETURN

$6.49

$

Usually ships in 3-6 days

0

12

Honda 47539-SA5-003

WASHER (NOT AVAILABLE)

$

$

Not available

13

Honda 90021-700-010

SCREW, FORK SETTING

$2.99

$

In Stock, Qty 5

0

14

Honda 90082-770-700

BOLT, SELECT LEVER HOLDER

$6.99

$

Usually ships in 3-6 days

0

15

Honda 90402-822-000

WASHER, HEAD (8MM)

$1.99

$

Usually ships in 3-6 days

0

16

Honda 90452-155-000

WASHER (18.2X26X1)

$

$

Not available

17

Honda 90472-723-000

WASHER, PLAIN (12MM)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 94201-30180

PIN, SPLIT (3.0X18)

$1.49

$

In Stock, Qty 20+

0

20

Honda 94510-18000

CIRCLIP, OUTER (18MM)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 13

0

22

Honda 24410-770-701

LEVER, CHANGE

$56.99

$

Usually ships in 3-6 days

0

23

Honda 24400-770-700

LEVER ASSY., CHANGE

$

$

Not available

24

Honda 24445-770-781

BAR, CHANGE

$86.99

$

In Stock, only 1 left!

0

25

Honda 94201-25300

PIN, SPLIT (2.5X30)

$1.49

$

Usually ships in 3-6 days

0
