FR800 AC/B (FZAW) - Honda 20" Tiller, Made in Japan (SN: FZAW-2100001 - FZAW-2109999) TRANSMISSION CASE Parts Diagram

20" Tiller, Made in Japan

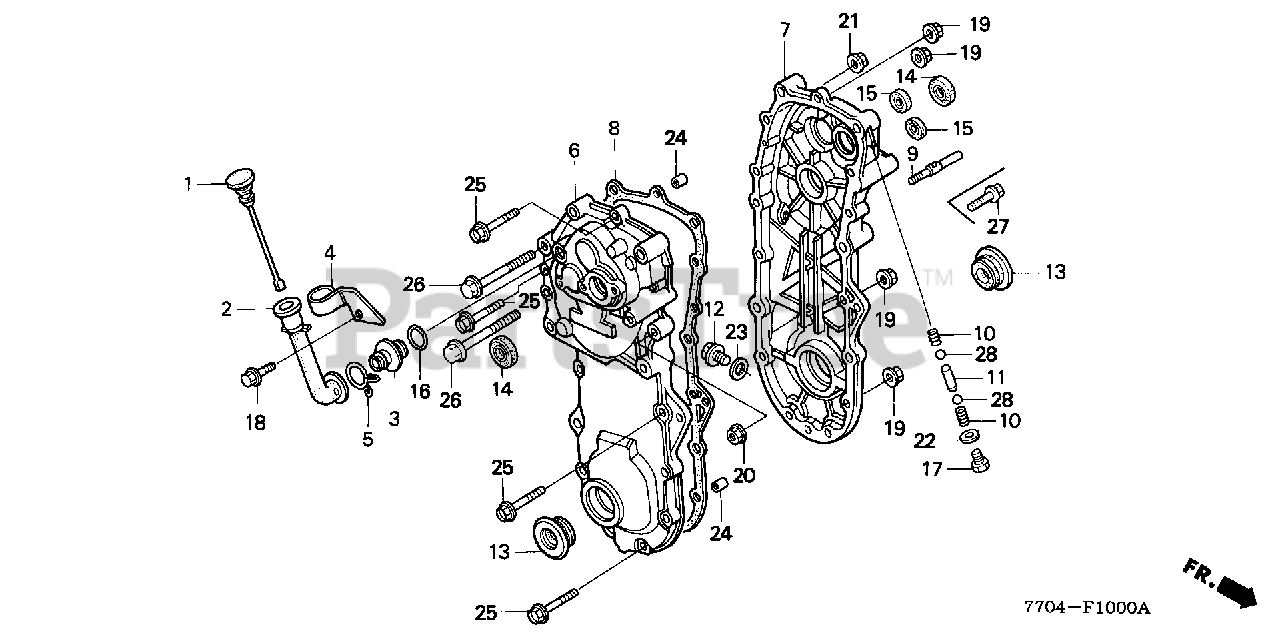

TRANSMISSION CASE Parts Diagram

  • Title
1

Honda 15621-723-750

DIPSTICK, OIL

$

$

Not available

2

Honda 15631-723-751

PIPE, OIL FILLER

$

$

Not available

3

Honda 15645-723-751

JOINT, OIL PIPE

$19.99

$

Usually ships in 3-6 days

0

4

Honda 15646-723-980

STAY, OIL PIPE

$

$

Not available

5

Honda 17348-673-000

CLIP, AIR HOSE (20.5MM)

$13.99

$

In Stock, only 1 left!

0

6

Honda 21111-734-630

CASE, R. TRANSMISSION

$

$

Not available

7

Honda 21211-734-632

CASE, L. TRANSMISSION

$665.99

$

Usually ships in 3-6 days

0

8

Honda 21281-734-J01

SEE PART DETAILS - PRI; GASKET, TRANSMISSION CASE

$

$

Not available

10

Honda 24271-765-000

SPRING, BALL SETTING

$2.49

$

Usually ships in 3-6 days

0

11

Honda 24481-719-000

PIECE, INTERLOCK

$

$

Not available

12

Honda 90131-883-000

SEE PART DETAILS - SUP; BOLT, DRAIN PLUG (12X15)

$

$

Not available

12

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (12X15)

$4.99

$

In Stock, Qty 12

0

13

Honda 91251-734-003

SEAL, WATER (25X46X8.5)

$40.99

$

Usually ships in 3-6 days

0

14

Honda 91201-862-003

OIL SEAL (17X30X8)

$15.99

$

Usually ships in 3-6 days

0

15

Honda 91253-706-003

OIL SEAL (12X22X6)

$12.99

$

Usually ships in 3-6 days

0

16

Honda 91303-800-000

O-RING (16MM)

$2.99

$

In Stock, only 1 left!

0

17

Honda 92101-08010-0A

BOLT, HEX. (8X10)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 93404-06016-00

BOLT-WASHER (6X16)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

20

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

21

Honda 94050-10000

NUT, FLANGE (10MM)

$1.99

$

In Stock, Qty 6

0

22

Honda 94102-08000

WASHER, PLAIN (8MM)

$1.49

$

Usually ships in 3-6 days

0

23

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 20+

0

24

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

25

Honda 95701-06035-00

BOLT, FLANGE (6X35)

$2.49

$

In Stock, only 2 left!

0

26

Honda 95701-10090-00

BOLT, FLANGE (10X90)

$3.99

$

Usually ships in 3-6 days

0

27

Honda 95801-08050-00

BOLT, FLANGE (8X50)

$4.49

$

Usually ships in 3-6 days

0

28

Honda 96211-08000

BALL, STEEL (#8) (1/4)

$1.99

$

Usually ships in 3-6 days

0
