FR800 AC/A (FZAW) - Honda 20" Tiller, Made in Japan (SN: FZAW-2000001 - FZAW-2099999) FR800 ENGINE BED Parts Diagram

20" Tiller, Made in Japan

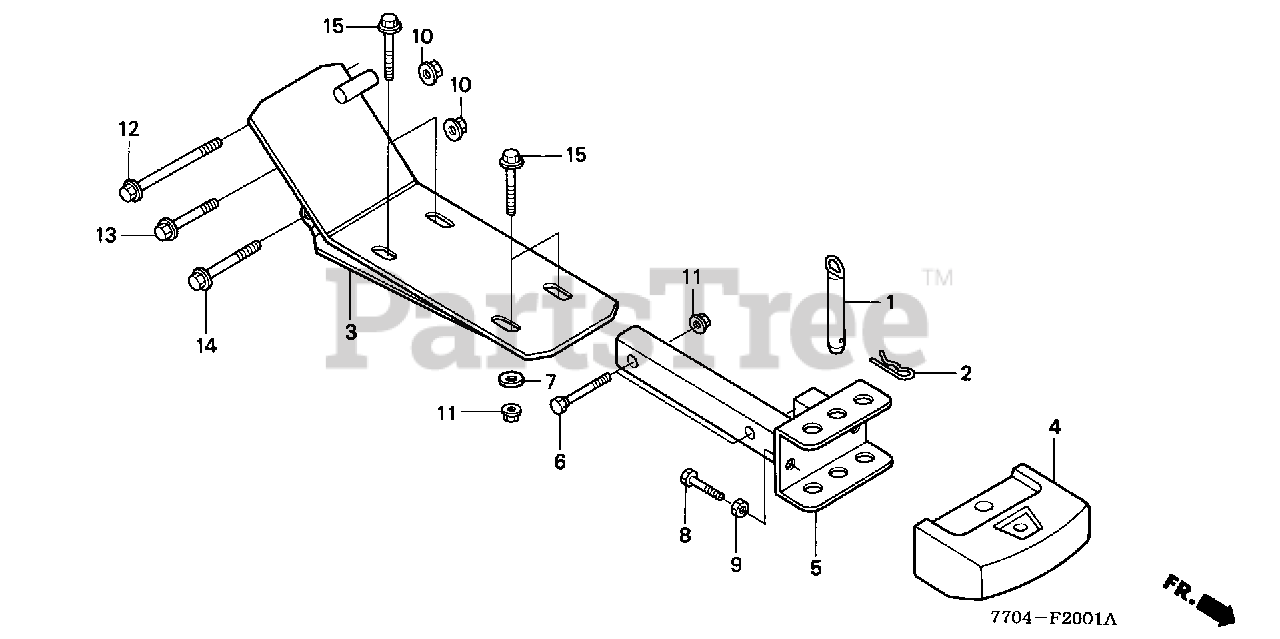

FR800 ENGINE BED Parts Diagram

  • Title

1

Honda 50620-723-000

PIN, HITCH

Note: (Optional).

$23.99

$

Usually ships in 3-6 days

0

2

Honda 50641-719-000

SEE PART DETAILS - PRI; PIN, LOCK

Note: (Optional).

$4.99

$

In Stock, only 2 left!

0

3

Honda 51110-770-700

BED, ENGINE

$469.99

$

Usually ships in 3-6 days

0

4

Honda 59301-703-000ZE

WEIGHT, FR. (8KG) *R280* (POWER RED)

Note: (Optional).

$107.99

$

Usually ships in 3-6 days

0

5

Honda 59431-734-000

HITCH, FR.

Note: (Optional).

$145.99

$

Usually ships in 3-6 days

0

6

Honda 90104-728-000

BOLT, HITCH

Note: (Optional).

$6.99

$

Usually ships in 3-6 days

0

7

Honda 90501-579-020

WASHER, EX. MANIFOLD

$7.49

$

Usually ships in 3-6 days

0

8

Honda 92201-08032-0A

BOLT, HEX. (8X32)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

9

Honda 94002-08000-0S

SEE PART DETAILS - PRI; NUT, HEX. (8MM)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

10

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

11

Honda 94050-10000

NUT, FLANGE (10MM)

$1.99

$

In Stock, Qty 6

0

12

Honda 95701-08080-00

BOLT, FLANGE (8X80)

$2.49

$

Usually ships in 3-6 days

0

13

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40)

$1.99

$

In Stock, Qty 20+

0

14

Honda 95701-08055-00

BOLT, FLANGE (8X55)

$3.49

$

In Stock, only 2 left!

0

15

Honda 95701-10045-00

BOLT, FLANGE (10X45)

$3.99

$

Usually ships in 3-6 days

0
