FR800 A (FZAW) - Honda 20" Tiller, Made in Japan (SN: FZAW-2000001 - FZAW-2099999) TRANSMISSION GEAR Parts Diagram

20" Tiller, Made in Japan

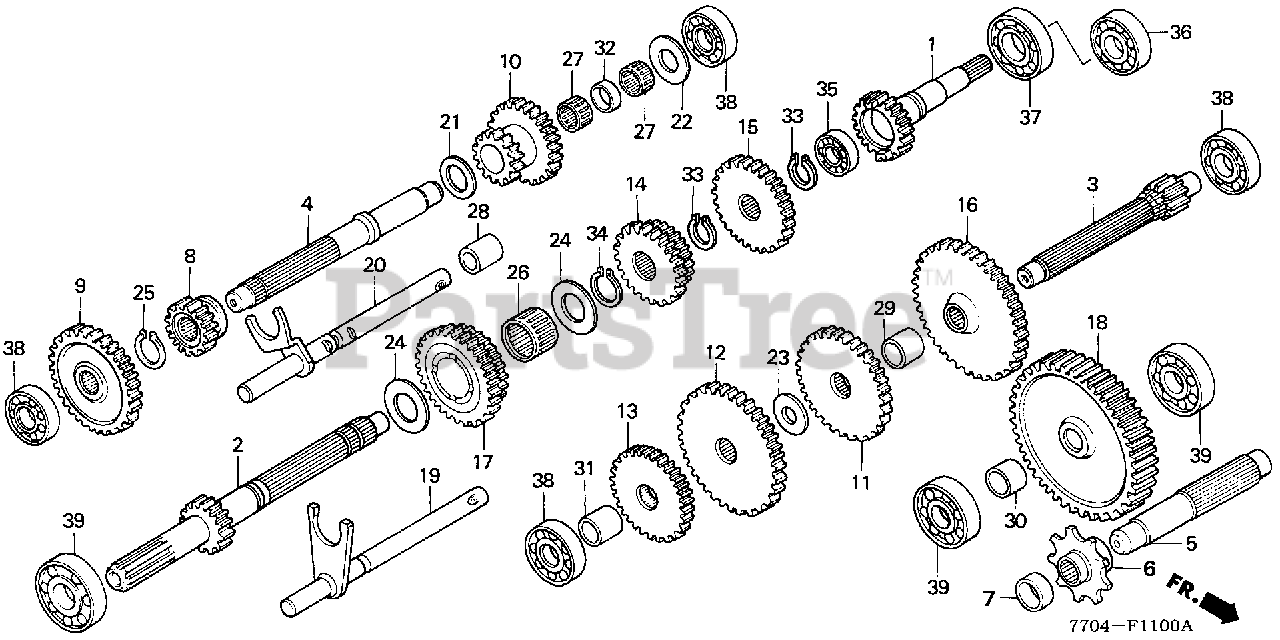

TRANSMISSION GEAR Parts Diagram

  • Title

1

Honda 23112-734-000

SHAFT, INPUT (22T)

$

$

Not available

2

Honda 23151-770-000

SHAFT, P.T.O.

$156.99

$

Usually ships in 3-6 days

0

3

Honda 23221-734-000

COUNTERSHAFT (11T)

$

$

Not available

4

Honda 23231-734-000

SHAFT, AUXILIARY

$119.99

$

Usually ships in 3-6 days

0

5

Honda 23251-734-000

SHAFT, FINAL

$

$

Not available

6

Honda 23252-733-000

SPROCKET, DRIVE (9T)

$59.99

$

Usually ships in 3-6 days

0

7

Honda 23253-734-000

COLLAR A, FINAL SHAFT

$7.99

$

Usually ships in 3-6 days

0

8

Honda 23412-734-000

GEAR, CHANGE (17T)

$38.99

$

Usually ships in 3-6 days

0

9

Honda 23415-734-A11

GEAR, REVERSE IDLE (34T)

$

$

Not available

10

Honda 23417-734-000

GEAR, AUXILIARY IDLE (25T/17T)

$

$

Not available

11

Honda 23421-734-630

GEAR, COUNTERSHAFT FIRST (33T)

$71.99

$

Usually ships in 3-6 days

0

12

Honda 23423-734-000

GEAR, COUNTERSHAFT SECOND (39T)

$

$

Not available

13

Honda 23431-770-000

GEAR, FIRST DRIVEN (36T)

$76.99

$

Usually ships in 3-6 days

0

14

Honda 23451-734-630

GEAR, CHANGE (26T/15T)

$77.99

$

Usually ships in 3-6 days

0

15

Honda 23455-770-000

GEAR, REDUCTION DRIVEN (30T)

$78.99

$

Usually ships in 3-6 days

0

16

Honda 23461-734-000

GEAR, SECOND IDLE (45T)

$

$

Not available

17

Honda 23461-770-000

GEAR, FIRST IDLE (23T/30T)

$147.99

$

Usually ships in 3-6 days

0

18

Honda 23581-734-010

GEAR, FINAL (54T)

$

$

Not available

19

Honda 24110-734-000

SHAFT, GEARSHIFT FORK (A)

$

$

Not available

20

Honda 24120-734-000

SHAFT, GEARSHIFT FORK (B)

$

$

Not available

21

Honda 90446-357-000

WASHER, THRUST (17.2MM)

$4.99

$

In Stock, only 1 left!

0

22

Honda 90451-166-000

WASHER, THRUST (15MM)

$

$

Not available

23

Honda 90505-734-000

WASHER, THRUST (17.2X25)

$4.49

$

Usually ships in 3-6 days

0

24

Honda 90454-428-000

WASHER, THRUST (20MM)

$3.49

$

Usually ships in 3-6 days

0

25

Honda 90601-001-000

CIRCLIP, OUTER (17MM)

$1.99

$

Usually ships in 3-6 days

0

26

Honda 91051-727-000

BEARING, NEEDLE (20X24X17)

$34.99

$

Usually ships in 3-6 days

0

27

Honda 91051-734-003

BEARING, NEEDLE (17X21X13)

$19.99

$

Usually ships in 3-6 days

0

28

Honda 91552-734-000

COLLAR, FORK SHAFT

$6.49

$

Usually ships in 3-6 days

0

29

Honda 91553-734-000

COLLAR, COUNTERSHAFT (A)

$5.99

$

Usually ships in 3-6 days

0

30

Honda 91554-734-010

COLLAR, FINAL SHAFT (20.8X25.4X11.0)

$5.99

$

Usually ships in 3-6 days

0

31

Honda 91555-734-000

COLLAR, COUNTERSHAFT (B)

$5.99

$

Usually ships in 3-6 days

0

32

Honda 91558-734-000

COLLAR, AUXILIARY IDLE GEAR

$3.99

$

Usually ships in 3-6 days

0

33

Honda 94510-18000

CIRCLIP, OUTER (18MM)

$1.99

$

Usually ships in 3-6 days

0

34

Honda 94510-20000

CIRCLIP (OUTER) (20MM)

$1.99

$

Usually ships in 3-6 days

0

35

Honda 91051-770-701

BEARING, RADIAL BALL (6001SPL)

$18.99

$

Usually ships in 3-6 days

0

36

Honda 96100-60030-00

BEARING, RADIAL BALL (6003)

$12.99

$

Usually ships in 3-6 days

0

37

Honda 96100-60040-00

BEARING, RADIAL BALL (6004)

$20.99

$

In Stock, only 2 left!

0

38

Honda 96100-62020-00

BEARING, RADIAL BALL (6202)

$12.99

$

Usually ships in 3-6 days

0

39

Honda 96100-62030-00

BEARING, RADIAL BALL (6203)

$11.99

$

Usually ships in 3-6 days

0
