FR800 A (FZAW) - Honda 20" Tiller, Made in Japan (SN: FZAW-2000001 - FZAW-2099999) CARBURETOR Parts Diagram

20" Tiller, Made in Japan

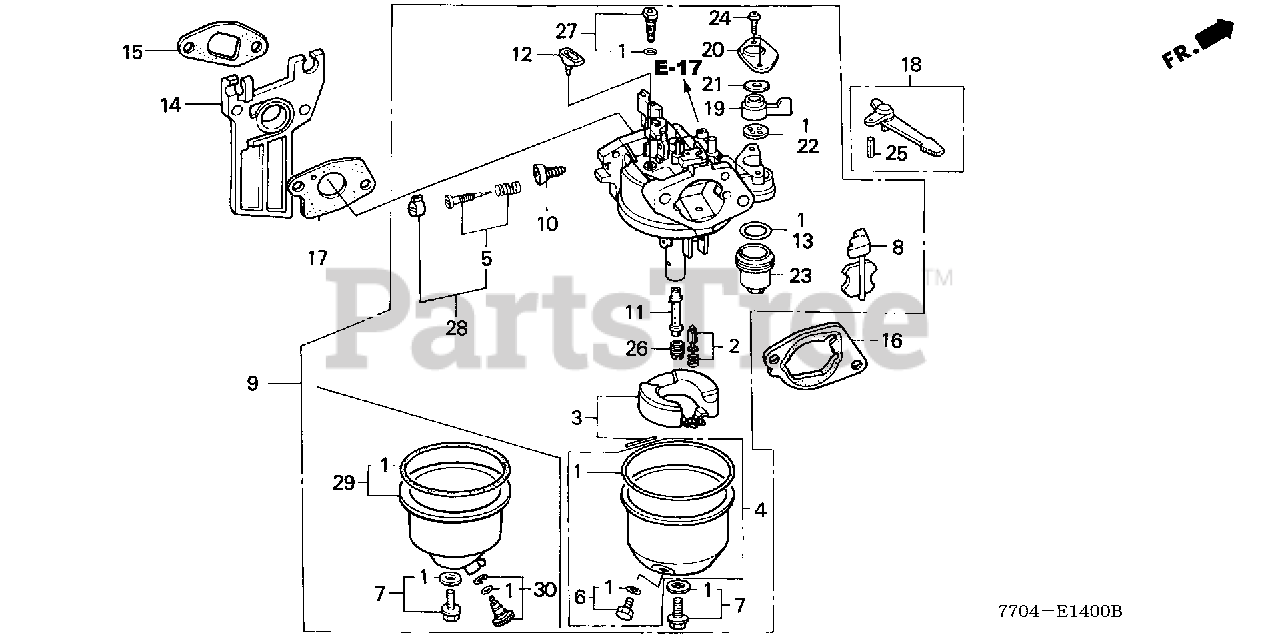

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZE2-A20

GASKET SET (CARBURETOR NO.)

Note: Use from Engine SN BE15K A.

$20.99

$

In Stock, only 2 left!

0

1

Honda 16010-ZE2-812

SEE PART DETAILS - PRI; GASKET SET (CARBURETOR NO.) (INCLUDES 16173-001-004)

Note: Use up to Engine SN BE15G A.

$19.99

$

In Stock, Qty 11

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT

$45.99

$

Usually ships in 3-6 days

0

3

Honda 16013-ZA0-931

FLOAT SET

$51.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE2-A20

CHAMBER SET, FLOAT (CARBURETOR NO.)

Note: Use from Engine SN BE15K A.

$57.99

$

Usually ships in 3-6 days

0

4

Honda 16015-ZE8-005

CHAMBER SET, FLOAT

Note: Use up to Engine SN BE15G A.

$46.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZE0-005

SCREW SET, PILOT

$15.99

$

In Stock, only 1 left!

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN (CARBURETOR NO.)

Note: Use up to Engine SN BE15G A.

$10.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZE0-005

SCREW SET
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

7

Honda 16028-ZK7-S91

SCREW SET

$13.99

$

In Stock, only 1 left!

0

8

Honda 16044-ZE2-005

CHOKE SET

$37.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZE2-A01

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE15K B)
(Superseded to 16100-ZE2-A02)

Note: Use from Engine SN 3036576.

$121.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZE2-A02

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE15K C)

Note: Use from Engine SN 3036576.

$121.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZE2-W31

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE15G B)
(Superseded to 16100-ZE2-W32)

Note: Use up to Engine SN 3036575.

$122.99

$

In Stock, only 1 left!

0

9

Honda 16100-ZE2-W32

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE15G C)

Note: Use up to Engine SN 3036575.

$122.99

$

In Stock, only 1 left!

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZE2-015

NOZZLE, MAIN

$35.99

$

Usually ships in 3-6 days

0

13

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

$7.49

$

In Stock, only 3 left!

0

14

Honda 16211-ZE2-000

SEE PART DETAILS - SUP; INSULATOR, CARBURETOR
(Superseded to 16211-ZE2-010)

$10.99

$

In Stock, Qty 9

0

15

Honda 16223-ZA0-800

GASKET, INSULATOR

$2.99

$

In Stock, Qty 9

0

16

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR

$11.99

$

In Stock, Qty 8

0

17

Honda 16221-ZA0-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

18

Honda 16610-ZE1-000

LEVER, CHOKE (STD)

$11.99

$

In Stock, Qty 6

0

19

Honda 16953-ZE1-811

SEE PART DETAILS - SUP; LEVER, PETCOCK (CARBURETOR NO.)
(Superseded to 16953-ZE1-406)

Note: Use up to Engine SN BE15K A.

$14.99

$

Usually ships in 3-6 days

0

19

Honda 16953-ZE1-812

LEVER, PETCOCK (CARBURETOR NO.)

Note: Use from Engine SN BE15K B.

$10.99

$

In Stock, Qty 9

0

20

Honda 16954-ZE1-812

PLATE, LEVER SETTING (CARBURETOR NO.)

Note: Use up to Engine SN BE15K A.

$4.49

$

In Stock, only 1 left!

0

20

Honda 16954-ZE1-812

PLATE, LEVER SETTING (CARBURETOR NO.)

Note: Use from Engine SN BE15K B.

$4.49

$

In Stock, only 1 left!

0

21

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER

$4.49

$

Usually ships in 3-6 days

0

22

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK

$4.49

$

In Stock, Qty 20+

0

23

Honda 16967-ZE0-811

CUP, FUEL STRAINER

$23.99

$

In Stock, only 2 left!

0

24

Honda 93500-03006-0H

SCREW, PAN (3X6)

Note: Use from Engine SN BE15K B.

$1.49

$

In Stock, only 3 left!

0

24

Honda 93500-03008-1G

SCREW, PAN (3X8) (CARBURETOR NO.)

Note: Use up to Engine SN BE15K A.

$

$

Currently unavailable

25

Honda 94305-20122

PIN, SPRING (2X12)

$2.49

$

In Stock, only 3 left!

0

26

Honda 99101-ZF5-0800

JET, MAIN (#80) (CARBURETOR NO.)

Note: (Optional). Use up to Engine SN BE15K A.

$11.99

$

Usually ships in 3-6 days

0

26

Honda 99101-ZH8-0800

JET, MAIN (#80) (CARBURETOR NO.)

Note: (Optional). Use from Engine SN BE15K B.

$8.49

$

Usually ships in 3-6 days

0

26

Honda 99101-ZH8-0820

SEE PART DETAILS - PRI; JET, MAIN (#82) (CARBURETOR NO.)

Note: (Optional). Use up to Engine SN BE15K A.

$8.49

$

Usually ships in 3-6 days

0

26

Honda 99101-ZH8-0850

SEE PART DETAILS - PRI; JET, MAIN (#85) (CARBURETOR NO.)

Note: Use up to Engine SN BE15K A.

$8.49

$

Usually ships in 3-6 days

0

27

Honda 99204-ZE2-0380

JET SET, PILOT (#38)

$23.99

$

Usually ships in 3-6 days

0

30

Honda 16024-ZH7-A20

SCREW SET, DRAIN (CARBURETOR NO.)

Note: Use from Engine SN BE15K A.

$11.99

$

Usually ships in 3-6 days

0
