FR750 AC (FZCG) - Honda Tiller, Made in Japan (SN: FZCG-1000001 - FZCG-1019999) HANDLEBAR Parts Diagram

Tiller, Made in Japan

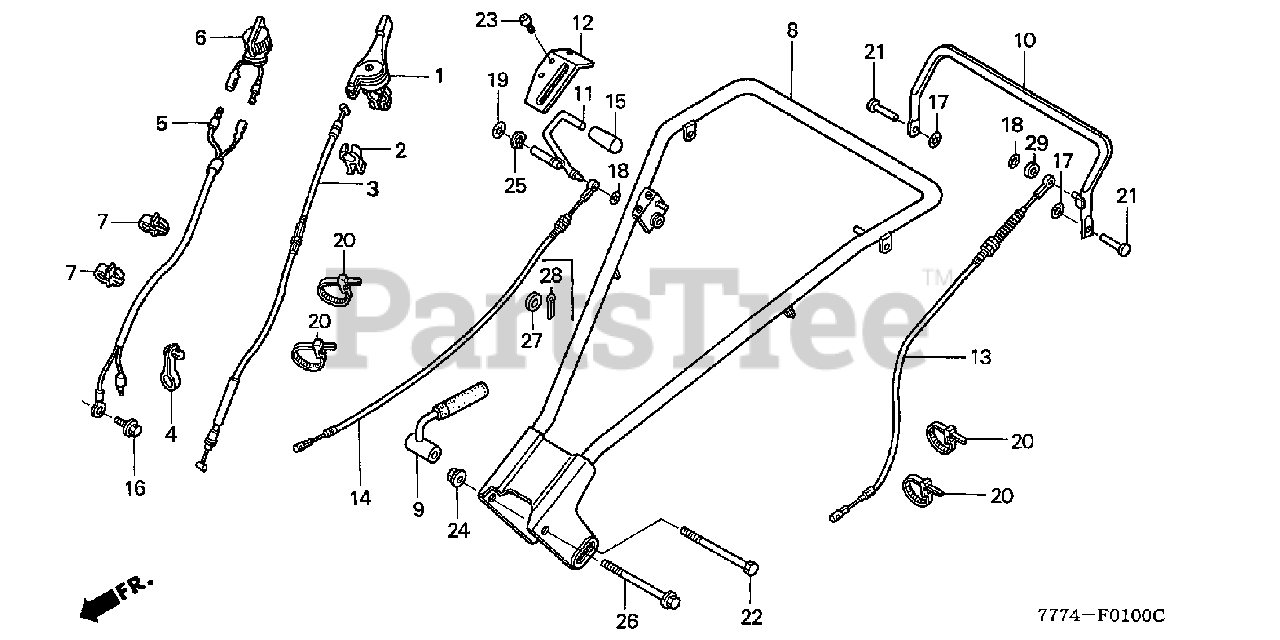

HANDLEBAR Parts Diagram

  • Title

1

Honda 17850-723-013

LEVER ASSY., THROTTLE

$23.99

$

Usually ships in 3-6 days

0

2

Honda 17851-777-003

CLIP, THROTTLE

$2.49

$

In Stock, only 3 left!

0

3

Honda 17910-777-003

CABLE, THROTTLE

$33.99

$

Usually ships in 3-6 days

0

4

Honda 17922-777-003

CLAMP, THROTTLE CABLE

$1.99

$

Usually ships in 3-6 days

0

5

Honda 35112-777-003

WIRE, ENGINE STOP SWITCH

$51.99

$

Usually ships in 3-6 days

0

6

Honda 35120-777-003

SWITCH ASSY., ENGINE STOP

$46.99

$

Usually ships in 3-6 days

0

7

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE

$2.99

$

In Stock, only 1 left!

0

8

Honda 53110-777-610ZB

PIPE, HANDLE *NH105* (MAT BLACK)

$546.99

$

Usually ships in 3-6 days

0

9

Honda 53140-777-003

LEVER, HANDLE ADJUSTER

$

$

Not available

10

Honda 54410-777-003

LEVER, CLUTCH

$

$

Not available

11

Honda 54475-V16-003ZA

LEVER, DIFFERENTIAL LOCK (#15-#20) *NH105* (MAT BLACK)

Note: Use from Frame SN 1007940.

$

$

Not available

11

Honda 54475-777-611

LEVER, DIFFERENTIAL LOCK

Note: Use up to Frame SN 1007939.

$

$

Not available

12

Honda 54478-777-611

COVER, DIFFERENTIAL LOCK

$

$

Not available

13

Honda 54510-777-003

CABLE, CLUTCH

$75.99

$

Usually ships in 3-6 days

0

14

Honda 54525-777-611

CABLE, DIFFERENTIAL LOCK

$

$

Not available

15

Honda 76426-777-000

GRIP, HEIGHT ADJUST LEVER

$

$

Not available

16

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 19

0

17

Honda 90503-777-003

WASHER, SPECIAL (8MM)

$3.49

$

Usually ships in 3-6 days

0

18

Honda 90506-777-003

WASHER, SPECIAL (6MM)

Note: Use up to Frame SN 1007939.

$3.99

$

Usually ships in 3-6 days

0

19

Honda 90507-777-003

WASHER, SPECIAL (12MM)

$5.99

$

Usually ships in 3-6 days

0

20

Honda 90651-MA6-720

BAND, WIRE HARNESS

$5.99

$

Usually ships in 3-6 days

0

21

Honda 90753-777-003

PIN, CLUTCH LEVER

$5.49

$

Usually ships in 3-6 days

0

22

Honda 92101-10150-0A

BOLT, HEX. (10X150)

$11.99

$

Usually ships in 3-6 days

0

23

Honda 93500-06010-0H

SCREW, PAN (6X10)

Note: Use up to Frame SN 1007939.

$1.49

$

Usually ships in 3-6 days

0

23

Honda 95701-06012-07

BOLT, FLANGE (6X12)

Note: Use from Frame SN 1007940.

$2.49

$

In Stock, Qty 15

0

24

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM)

$1.99

$

In Stock, only 4 left!

0

25

Honda 94510-12000

CIRCLIP, OUTER (12MM)

$2.49

$

In Stock, only 3 left!

0

26

Honda 95801-10150-08

BOLT, FLANGE (10X150)

$6.49

$

Usually ships in 3-6 days

0

27

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

Note: Use from Frame SN 1007940.

$0.99

$

In Stock, Qty 20+

0

28

Honda 94201-20151

PIN, SPLIT (2.0)

Note: Use from Frame SN 1007940.

$0.99

$

In Stock, Qty 10

0
