FR750 AC (FZCG) - Honda Tiller, Made in Japan (SN: FZCG-1000001 - FZCG-1019999) ENGINE BED Parts Diagram

Tiller, Made in Japan

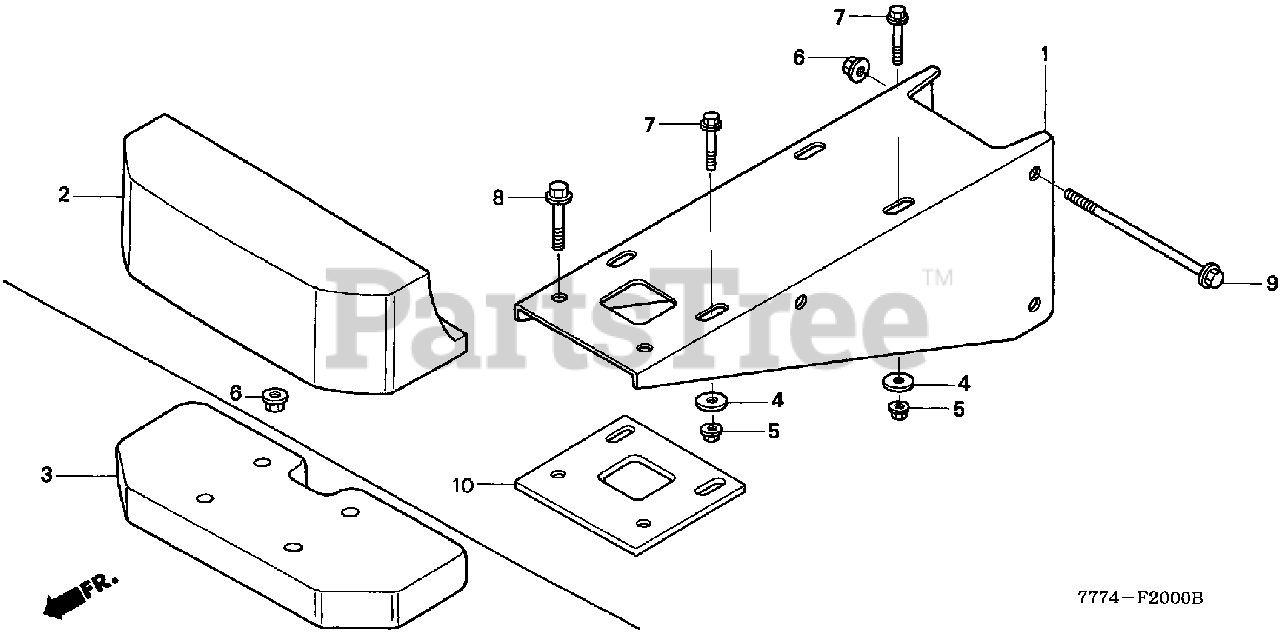

ENGINE BED Parts Diagram

  • Title
1

Honda 51111-777-000

BED, ENGINE

$

$

Not available

2

Honda 59301-777-000

WEIGHT, FR.

$

$

Not available

3

Honda 59302-777-730

WEIGHT, SUB

$97.99

$

Usually ships in 3-6 days

0

4

Honda 90402-344-820

WASHER (8X22)

$2.49

$

Usually ships in 3-6 days

0

5

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 16

0

6

Honda 94050-10080

NUT, FLANGE (10MM)

$3.99

$

In Stock, Qty 20+

0

7

Honda 95701-08035-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35)

Note: Use up to Frame SN 1006788.

$1.99

$

Usually ships in 3-6 days

0

7

Honda 95701-08040-08

BOLT, FLANGE (8X40)

Note: Use from Frame SN 1006789.

$2.99

$

Usually ships in 3-6 days

0

8

Honda 95701-10070-08

BOLT, FLANGE (10X70)

$4.49

$

Usually ships in 3-6 days

0

9

Honda 95701-10130-08

BOLT, FLANGE (10X130)

$6.99

$

Usually ships in 3-6 days

0

10

Honda 51113-777-000

PLATE, ENGINE BED

Note: Use from Frame SN 1006789.

$

$

Not available
