FR750 AC (FZCG) - Honda Tiller, Made in Japan (SN: FZCG-1000001 - FZCG-1019999) CHANGE LEVER Parts Diagram

Tiller, Made in Japan

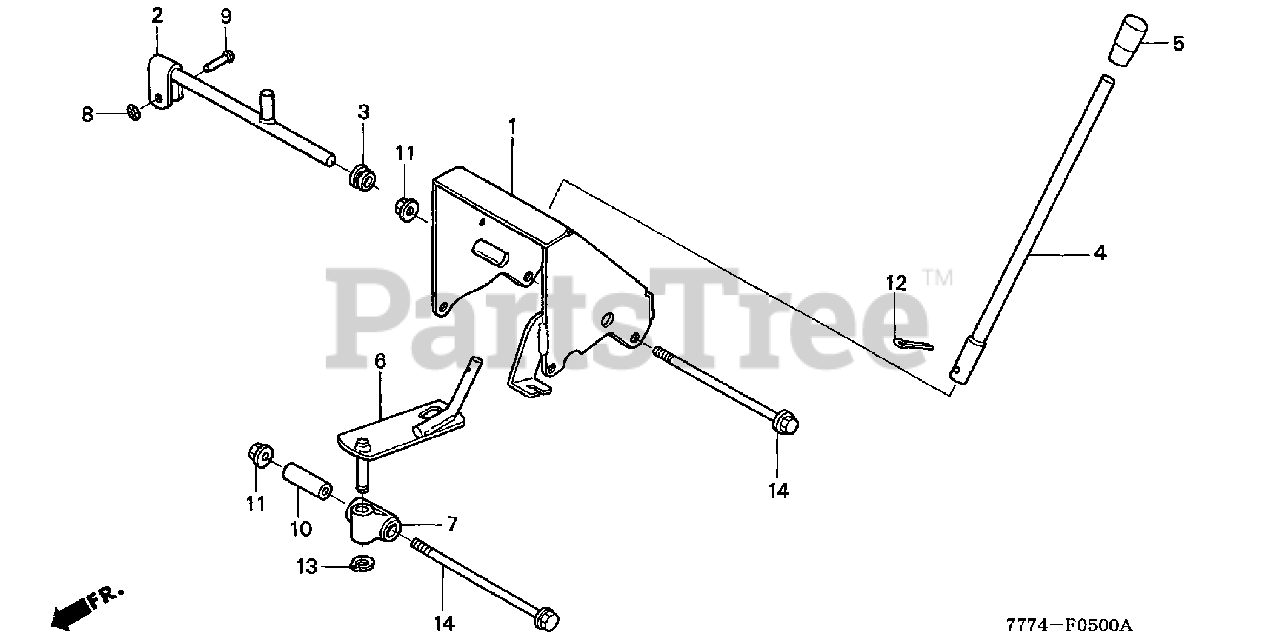

CHANGE LEVER Parts Diagram

  • Title

1

Honda 21310-777-000ZB

SEE PART DETAILS - SUP; COVER, CHANGE *R8* (BRIGHT RED)

Note: Use up to Frame SN 1009364.

$

$

Currently unavailable

1

Honda 21310-777-000ZC

SEE PART DETAILS - PRI; COVER, CHANGE *R280* (POWER RED)

Note: Use from Frame SN 1009365.

$110.99

$

Usually ships in 3-6 days

0

2

Honda 24360-777-000

ARM, CHANGE

$

$

Not available

3

Honda 24362-777-000

BUSH, CHANGE ARM

$

$

Not available

4

Honda 24410-777-000

LEVER, CHANGE

$62.99

$

Usually ships in 3-6 days

0

5

Honda 24411-777-003

GRIP, CHANGE LEVER

$9.49

$

Usually ships in 3-6 days

0

6

Honda 24450-777-000

LEVER, SELECT

$

$

Not available

7

Honda 24461-777-000

HOLDER, SELECT LEVER

$69.99

$

Usually ships in 3-6 days

0

8

Honda 90508-777-003

WASHER, SPECIAL (5MM)

$3.99

$

Usually ships in 3-6 days

0

9

Honda 90751-744-000

PIN, CHANGE (5X23)

$3.99

$

Usually ships in 3-6 days

0

10

Honda 91555-777-000

COLLAR, SELECT LEVER HOLD

$14.99

$

Usually ships in 3-6 days

0

11

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

12

Honda 94201-25300

SEE PART DETAILS - PRI; PIN, COTTER (2.5MM)

$1.49

$

Usually ships in 3-6 days

0

13

Honda 94510-12000

CIRCLIP, OUTER (12MM)

$2.49

$

In Stock, only 3 left!

0

14

Honda 95701-08140-00

BOLT, FLANGE (8X140)

$3.99

$

Usually ships in 3-6 days

0
