FR750 AC (FZCG) - Honda Tiller, Made in Japan (SN: FZCG-1000001 - FZCG-1019999) BELT COVER Parts Diagram

Tiller, Made in Japan

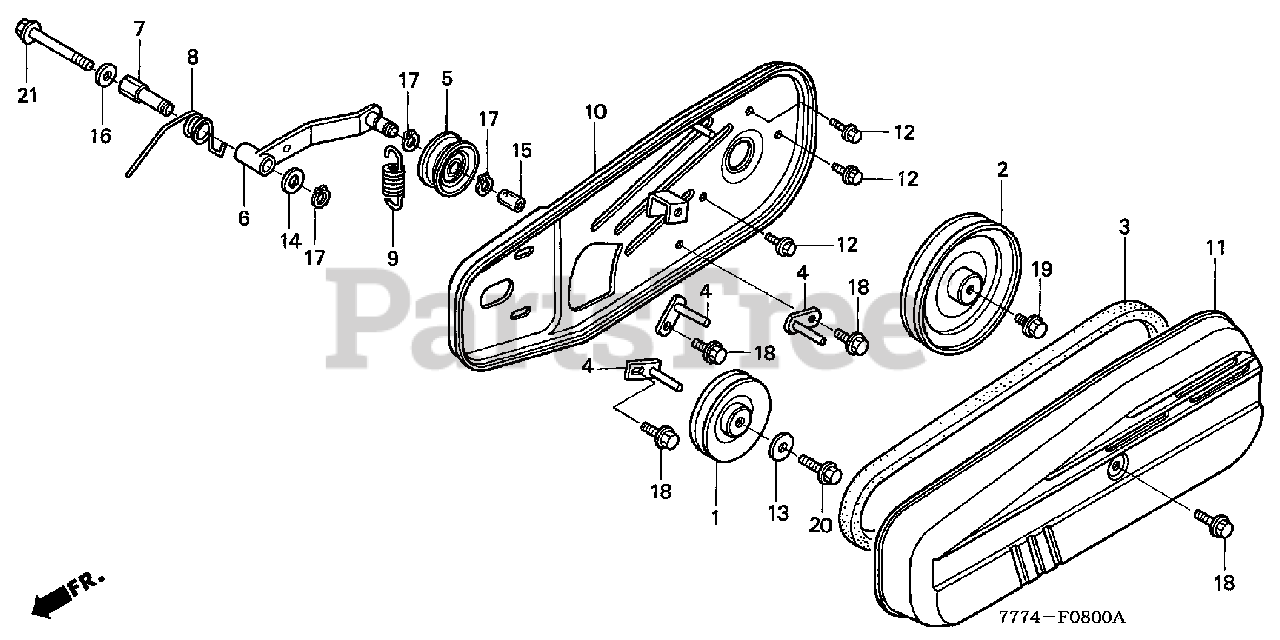

BELT COVER Parts Diagram

  • Title

1

Honda 22411-733-751

PULLEY, DRIVE

$47.99

$

Usually ships in 3-6 days

0

2

Honda 22420-773-000

PULLEY, DRIVEN (130MM)

$

$

Not available

3

Honda 22431-777-731

V-BELT (SB-38)

$40.99

$

In Stock, only 1 left!

0

4

Honda 22442-777-000

STOPPER A, BELT

$11.99

$

In Stock, only 1 left!

0

5

Honda 22465-777-003

ROLLER, TENSIONER

$

$

Not available

6

Honda 22520-777-000

ARM, TENSIONER

$

$

Not available

7

Honda 22523-777-003

SHAFT, TENSIONER ARM

$25.99

$

Usually ships in 3-6 days

0

8

Honda 22529-773-000

SPRING, TENSIONER ARM RETURN

$

$

Not available

9

Honda 22531-777-000

SPRING, BELT TENSIONER

$

$

Not available

10

Honda 50651-777-003ZB

COVER, BELT (INNER) *R8* (BRIGHT RED)
(Superseded to 50651-777-003ZC)

Note: Use up to Frame SN 1009397.

$

$

Not available

10

Honda 50651-777-003ZC

COVER, BELT (INNER) *R280* (POWER RED)

Note: Use from Frame SN 1009398.

$

$

Not available

11

Honda 63611-777-003ZC

SEE PART DETAILS - PRI; COVER, BELT *R280* (POWER RED)

$

$

Not available

12

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$2.99

$

In Stock, only 4 left!

0

13

Honda 90428-844-650

WASHER (8MM)

$4.99

$

Usually ships in 3-6 days

0

14

Honda 90528-229-000

WASHER (12.5MM)

$2.49

$

Usually ships in 3-6 days

0

15

Honda 91451-777-003

TUBE, VINYL (10MM)

$6.49

$

Usually ships in 3-6 days

0

16

Honda 94102-10000

WASHER, PLAIN (10MM)

$0.99

$

In Stock, only 1 left!

0

17

Honda 94510-12000

CIRCLIP, OUTER (12MM)

$2.49

$

In Stock, only 3 left!

0

18

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0

19

Honda 95701-08018-08

BOLT, FLANGE (8X18)

$2.49

$

In Stock, Qty 6

0

20

Honda 95701-08025-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25)

$0.99

$

In Stock, Qty 12

0

21

Honda 95701-10075-00

BOLT, FLANGE (10X75)

$3.49

$

Usually ships in 3-6 days

0
