FR750 AC/A (FZCG) - Honda Tiller, Made in Japan (SN: FZCG-1020001 - FZCG-9999999) CARBURETOR Parts Diagram

Tiller, Made in Japan

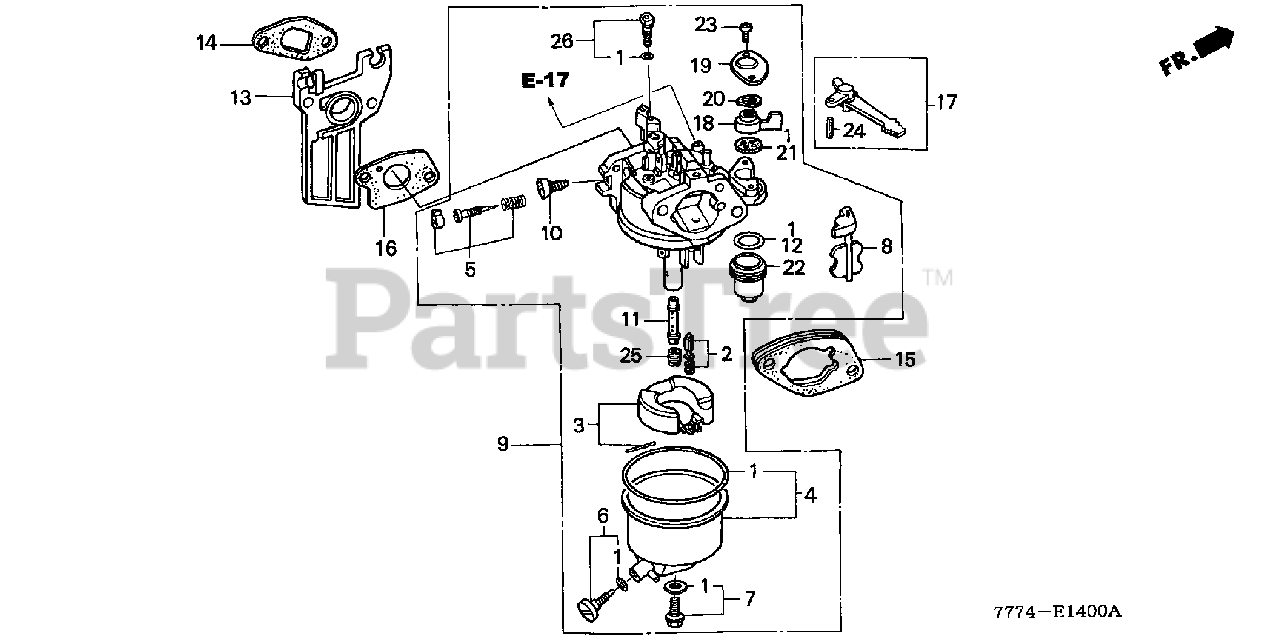

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZH7-A20

GASKET SET

$18.99

$

In Stock, only 1 left!

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT

$30.99

$

In Stock, only 1 left!

0

3

Honda 16013-ZE0-005

FLOAT SET

$31.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZH7-A21

SEE PART DETAILS - SUP; CHAMBER SET, FLOAT
(Superseded to 16015-ZK7-S91)

$32.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZH7-W01

SCREW SET, PILOT

$21.99

$

In Stock, only 1 left!

0

6

Honda 16024-ZH7-A20

SCREW SET, DRAIN

$11.99

$

Usually ships in 3-6 days

0

7

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

8

Honda 16044-ZE0-005

CHOKE SET

$39.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZL0-B21

CARBURETOR ASSY. (BE64L B)

$

$

Not available

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZL0-000

NOZZLE, MAIN

$30.99

$

Usually ships in 3-6 days

0

12

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

$7.49

$

In Stock, only 1 left!

0

13

Honda 16211-ZL0-000

INSULATOR, CARBURETOR

$22.99

$

In Stock, only 2 left!

0

14

Honda 16212-ZH8-800

GASKET, INSULATOR

$3.49

$

In Stock, Qty 20+

0

15

Honda 16220-ZE1-020

SEE PART DETAILS - PRI; SPACER, CARBURETOR

$8.49

$

In Stock, Qty 18

0

16

Honda 16221-ZH8-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

17

Honda 16610-ZE1-000

LEVER, CHOKE (STD)

$11.99

$

In Stock, Qty 8

0

18

Honda 16953-ZE1-812

LEVER, PETCOCK

$10.99

$

In Stock, Qty 10

0

19

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING

$4.49

$

In Stock, only 1 left!

0

20

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER

$4.49

$

Usually ships in 3-6 days

0

21

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK

$4.49

$

In Stock, Qty 20+

0

22

Honda 16967-ZE0-811

CUP, FUEL STRAINER

$23.99

$

In Stock, only 2 left!

0

23

Honda 93500-03006-0H

SCREW, PAN (3X6)

$1.49

$

In Stock, only 3 left!

0

24

Honda 94305-20122

PIN, SPRING (2X12)

$2.49

$

In Stock, only 4 left!

0

25

Honda 99101-ZH8-0680

SEE PART DETAILS - SUP; JET, MAIN (#68)
(Superseded to 99101-ZK7-0680)

$8.49

$

Usually ships in 3-6 days

0

25

Honda 99101-ZH8-0700

SEE PART DETAILS - SUP; JET, MAIN (#70)
(Superseded to 99101-ZK7-0700)

$10.99

$

In Stock, Qty 9

0

25

Honda 99101-ZH8-0720

SEE PART DETAILS - PRI; JET, MAIN (#72)

$8.49

$

Usually ships in 3-6 days

0

26

Honda 99204-ZA0-0450

JET SET, PILOT (#45)

$25.99

$

In Stock, only 1 left!

0
