FR730V-BS04 - Kawasaki Engine COOLING-EQUIPMENT Parts Diagram

Engine

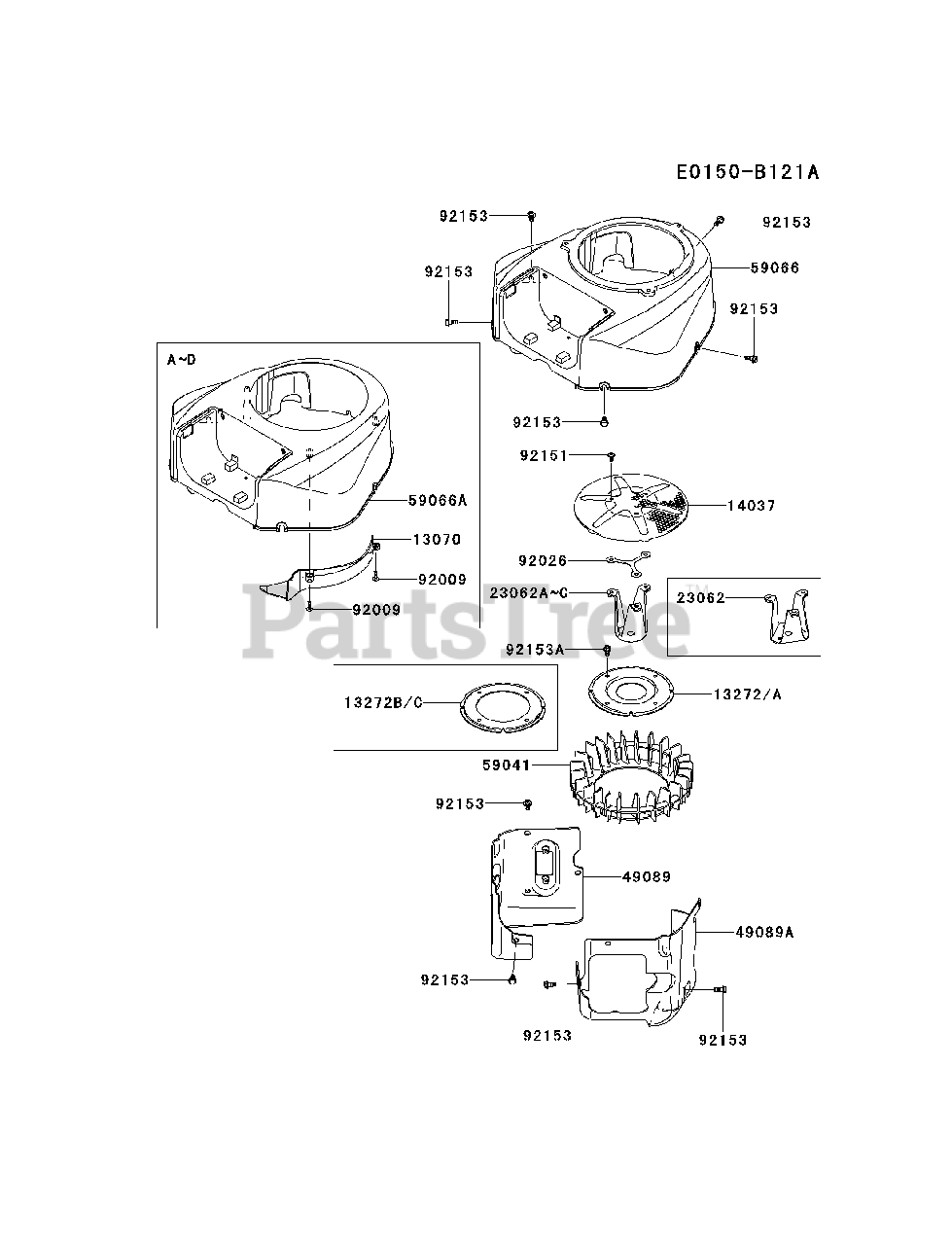

COOLING-EQUIPMENT Parts Diagram

  • Title

13070

Kawasaki 13070-7019

GUIDE,COOLING AIR
(Superseded to 99999-0398)

$

$

Not available

13272B

Kawasaki 13272-7006

PLATE,FAN
(Superseded to 132721488)

$10.99

$

In Stock, only 1 left!

0

14037

Kawasaki 14037-7008-9H

SCREEN
(Superseded to 14037-7008)

$35.99

$

In Stock, Qty 11

0

23062A

Kawasaki 23062-7022

BRACKET-COMP

$12.99

$

In Stock, only 1 left!

0

49089

Kawasaki 49089-7079

SHROUD-ENGINE
(Superseded to 49089-0951)

$21.99

$

In Stock, only 1 left!

0

49089A

Kawasaki 49089-7080

SHROUD-ENGINE

$

$

Not available

59041

Kawasaki 59041-7014

FAN

$17.99

$

Usually ships in 2-5 days

0

59066A

Kawasaki 59066-7052

HOUSING-FAN
(Superseded to 99999-0398)

$

$

Not available

92009

Kawasaki 92009-2303

SCREW

$2.99

$

In Stock, Qty 7

0

92026

Kawasaki 92026-7007

SPACER

$5.99

$

In Stock, Qty 20+

0

92151

Kawasaki 92151-7012

BOLT,6X12
(Superseded to 92154-2687)

$1.49

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-7007

BOLT

$4.49

$

In Stock, Qty 18

0

92153A

Kawasaki 92153-7043

BOLT,6X12

$

$

Not available
