FR730V-AS05 - Kawasaki Engine CYLINDER/CRANKCASE Parts Diagram

Engine

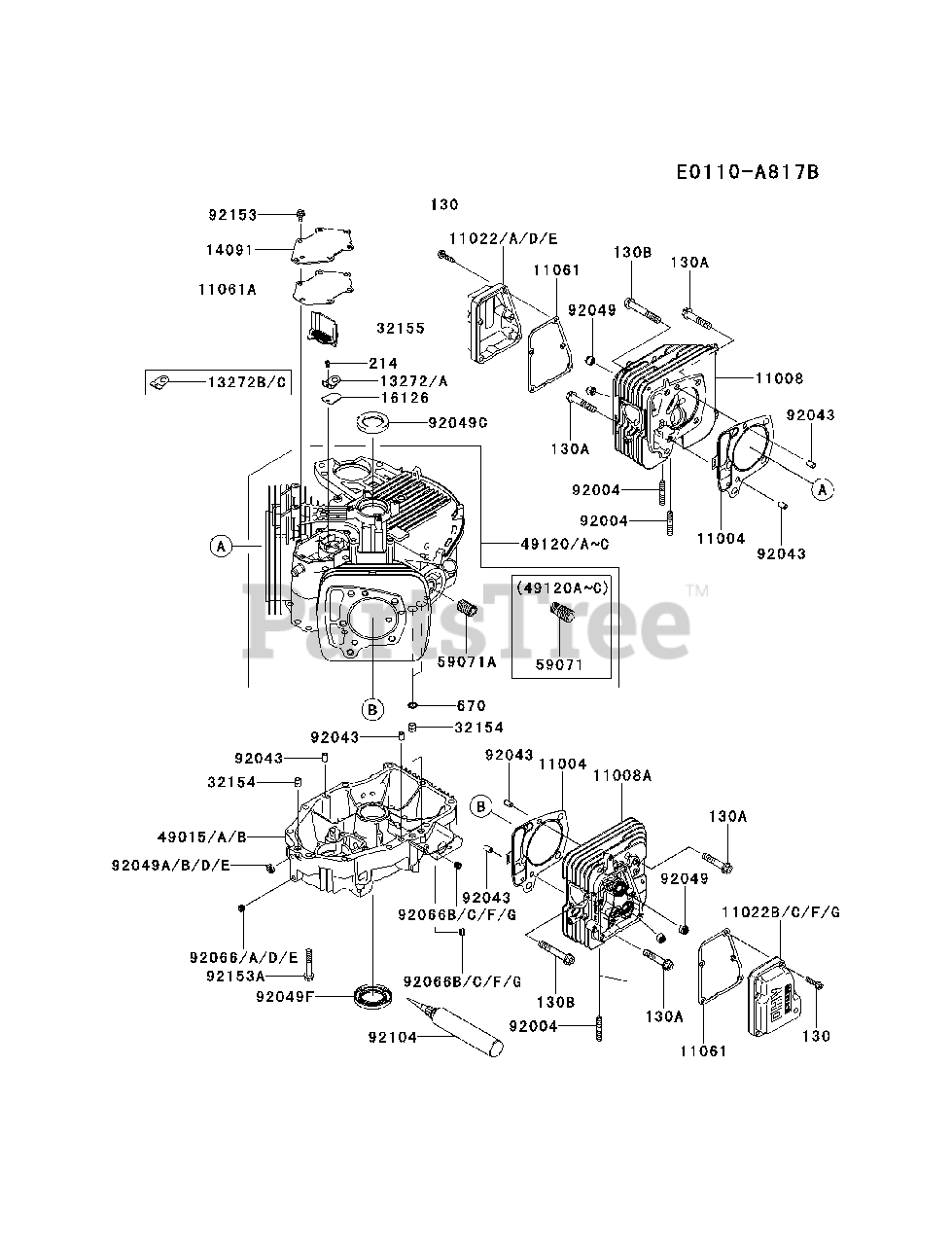

CYLINDER/CRANKCASE Parts Diagram

  • Title
11004

Kawasaki 11004-7026

GASKET-HEAD
(Superseded to 11004-0762)

$27.99

$

In Stock, Qty 20+

0

11008

Kawasaki 11008-7039

HEAD-COMP-CYLINDER,#1
(Superseded to 11008-0861)

$236.99

$

In Stock, Qty 20+

0

11008A

Kawasaki 11008-7040

HEAD-COMP-CYLINDER,#2
(Superseded to 11008-0845)

$236.99

$

In Stock, Qty 12

0

11022D

Kawasaki 11022-7019

CASE-ROCKER,#1

$16.99

$

In Stock, only 1 left!

0

11022F

Kawasaki 11022-7020

CASE-ROCKER,#2

$16.99

$

In Stock, only 1 left!

0

11061

Kawasaki 11061-7083

GASKET,CASE-ROCKER
(Superseded to KM-11061-1285)

$4.99

$

Usually ships in 3-6 days

0

11061A

Kawasaki 11061-7094

GASKET,BREATHER
(Superseded to 11061-7084)

$8.99

$

In Stock, Qty 20+

0

13272B

Kawasaki 13272-7004

PLATE,BREATHER
(Superseded to 132721374)

$1.99

$

In Stock, Qty 7

0

14091

Kawasaki 14091-7064

COVER,BREATHER

$2.49

$

In Stock, Qty 11

0

16126

Kawasaki 16126-7020

VALVE,BREATHER

$4.99

$

In Stock, Qty 20+

0

32154

Kawasaki 32154-7019

PIPE
(Superseded to 920430858)

$2.49

$

In Stock, Qty 20+

0

32155

Kawasaki 32155-7003

PIPE,BREATHER
(Superseded to 321552214)

$2.99

$

In Stock, Qty 11

0

49015

Kawasaki 49015-7079

COVER-CRANKCASE
(Superseded to 49015-7106)

$204.99

$

In Stock, only 4 left!

0

49015B

Kawasaki 49015-7106

COVER-CRANKCASE
(Superseded to 49015-0023)

$204.99

$

In Stock, only 4 left!

0

49120A

Kawasaki 49120-7134

CRANKCASE-COMP
(Superseded to 49120-0733)

$609.99

$

Usually ships in 2-5 days

0

49120C

Kawasaki 49120-7142

CRANKCASE-COMP
(Superseded to 49120-0733)

$609.99

$

Usually ships in 2-5 days

0

59071

$6.49

$

In Stock, Qty 8

0

92004

$6.99

$

In Stock, only 2 left!

0

$0.99

$

In Stock, Qty 20+

0

92049

Kawasaki 92049-7001

SEAL-OIL,RVC2 6X11X10.2

$8.49

$

Usually ships in 2-5 days

0

92049A

Kawasaki 92049-7005

SEAL-OIL,SO 8X14X5 HS
(Superseded to 920497019)

$2.49

$

In Stock, Qty 20+

0

92049C

Kawasaki 92049-7010

SEAL-OIL,SD 35X48X8 R HS

$3.49

$

In Stock, Qty 20+

0

92049F

Kawasaki 92049-7028

SEAL-OIL,38X62X8MTCLV

$14.99

$

In Stock, Qty 20+

0
