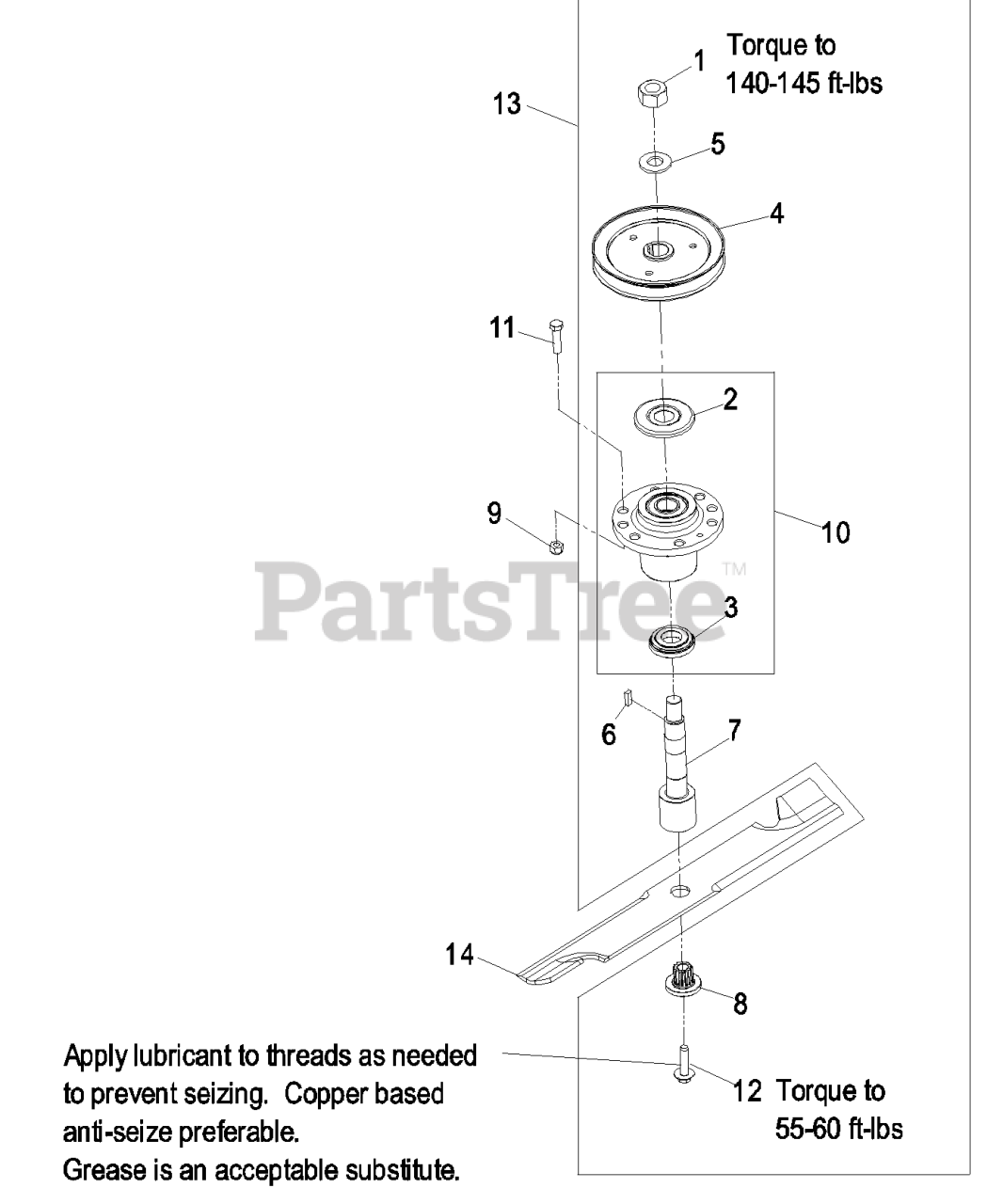

FR724 - Exmark 72" Front Runner Deck (SN: 720000 - 789999) (2008) Spindle Assembly Parts Diagram

Exmark 3217-46

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on nut, Item #13.

Exmark 103-1330

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

Exmark 103-2535

Exmark 103-2794

Note: (52" & 60") Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

Exmark 103-2795

Note: (72")

Exmark 103-2802

Exmark 103-2982

Exmark 103-9086

Note: Kit includes items #1, #5, #6, #8, #12 & #13. Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-se

Exmark 103-3037

Exmark 3296-39

Exmark 103-8280

Exmark 323-8

Note: (60" & 72")

Exmark 323-7

Note: (52")

Exmark 109-5958

Exmark 103-9076

Note: (52"& 60")

Exmark 103-9074

Note: (72")

Exmark 103-6402

Note: (52")

Exmark 103-6387

Note: (52")

Exmark 103-6382

Note: (52")

Exmark 103-6397

Note: (52")

Exmark 103-6392

Note: (52") Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK524Q (52"), MK604Q (60") and MK724

Exmark 103-6403

Note: (60")

Exmark 103-6388

Note: (60")

Exmark 103-6383

Note: (60")

Exmark 103-6398

Note: (60")

Exmark 103-6393

Note: (60") Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK524Q (52"), MK604Q (60") and MK724

Exmark 103-6404

Note: (72")

Exmark 103-6389

Note: (72")

Exmark 103-6384

Note: (72")

Exmark 103-6399

Note: (72")

Exmark 103-6394

Note: (72") Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK524Q (52"), MK604Q (60") and MK724
