FR724 - Exmark 72" Front Runner Deck (SN: 720000 - 789999) (2008) FR524, FR604, FR724 Deck Groups (cont.) Parts Diagram

72" Front Runner Deck

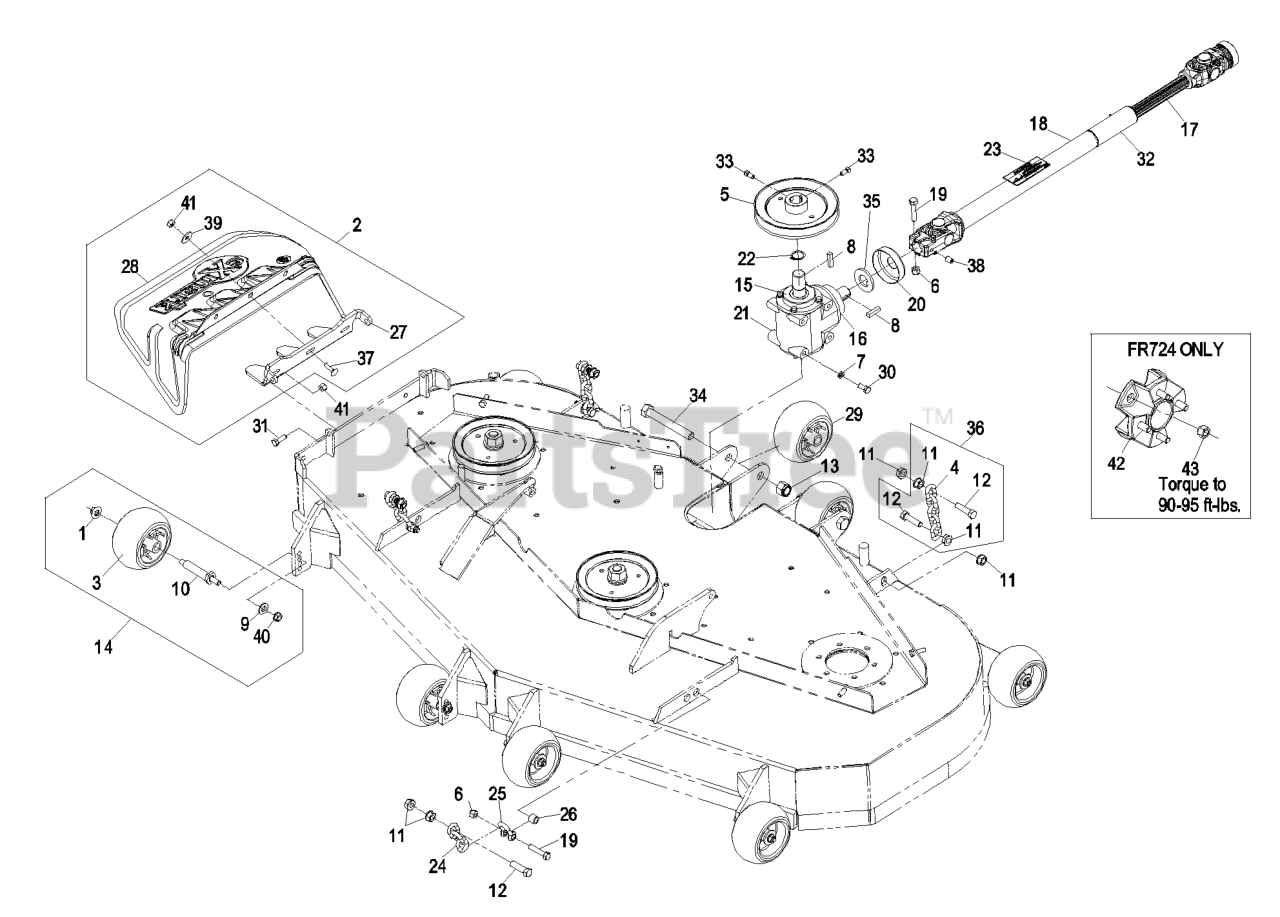

FR524, FR604, FR724 Deck Groups (cont.) Parts Diagram

  • Title

1

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

2

Exmark 109-2148

116-1745
(Superseded to 116-1745)

$239.99

$

In Stock, only 2 left!

0

3

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 20+

0

4

Exmark 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 12

0

5

Exmark 109-2714

SHEAVE,6.88 ED B-SEC

Note: (52")

$

$

Not available

Exmark 1-643292

SHEAVE-SPLIT

Note: (60" & 72")

$104.99

$

In Stock, only 1 left!

0

6

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 7

0

8

Exmark 13-2840

KEY-SQUARE

$1.99

$

In Stock, Qty 5

0

9

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

10

Exmark 99-2842

126-2928
(Superseded to 126-2928)

$27.99

$

In Stock, Qty 20+

0

11

Exmark 32128-37

NUT-HF

$4.49

$

In Stock, Qty 13

0

12

Exmark 103-1898

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

13

Exmark 3296-53

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Exmark 103-4051

116-9981
(Superseded to 116-9981)

$52.99

$

In Stock, Qty 20+

0

15

Exmark 100-4576

253-118
(Superseded to 253-118)

$19.99

$

In Stock, Qty 20+

0

16

Exmark 100-4575

SEAL

$57.99

$

In Stock, only 1 left!

0

17

Exmark 109-4449

DISCONTINUED

$

$

Not available

18

Exmark 109-4448

116-0311
(Superseded to 116-0311)

$958.99

$

Usually ships in 3-6 days

0

19

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Exmark 109-4941

GUARD,SEAL (PLTD)

$44.99

$

In Stock, only 1 left!

0

21

Exmark 103-7959

GEARBOX,90 DEGREES

$

$

Not available

22

Exmark 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 15

0

23

Exmark 103-8425

DECAL-DRIVELINE

$11.99

$

Usually ships in 3-6 days

0

24

Exmark 103-9859

CHAIN-DECKLIFT

$6.99

$

Usually ships in 3-6 days

0

25

Exmark 103-9861

SHACKLE,FRONT CHAIN

$

$

Not available

26

Exmark 103-9863

BUSHING,SHACKLE

$8.49

$

Usually ships in 3-6 days

0

27

Exmark 109-0938-01

BRACKET,DISCHARGE CHUTE

$92.99

$

Usually ships in 3-6 days

0

28

Exmark 109-2738

CHUTE,DISCHARGE

$81.99

$

In Stock, Qty 20+

0

29

Exmark 109-2965

ROLLER, FULL HUB

$35.99

$

Usually ships in 3-6 days

0

30

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

31

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

32

Exmark 109-2767

116-0312
(Superseded to 116-0312)

$

$

Not available

33

Exmark 1-803022

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on setscrews, items #33 and #38.

$2.99

$

In Stock, Qty 20+

0

34

Exmark 327-12

SCREW-HH

$19.99

$

Usually ships in 3-6 days

0

35

Exmark 109-4492

WASHER,SPECIAL

$14.99

$

Usually ships in 3-6 days

0

36

Exmark 103-9792

DECK CHAIN ASM

$13.99

$

In Stock, only 1 left!

0

37

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, Qty 20+

0

38

Exmark 3247-4

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on setscrews, items #33 and #38.

$5.99

$

Usually ships in 3-6 days

0

39

Exmark 3256-82

WASHER-FLAT

$0.99

$

In Stock, Qty 7

0

40

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

41

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

42

Exmark 109-6207

Asm, Wheel Spacer

$

$

Currently unavailable

43

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0
