FR724 - Exmark 72" Front Runner Deck (SN: 670000 - 719999) (2007) Spindle Assembly Parts Diagram

72" Front Runner Deck

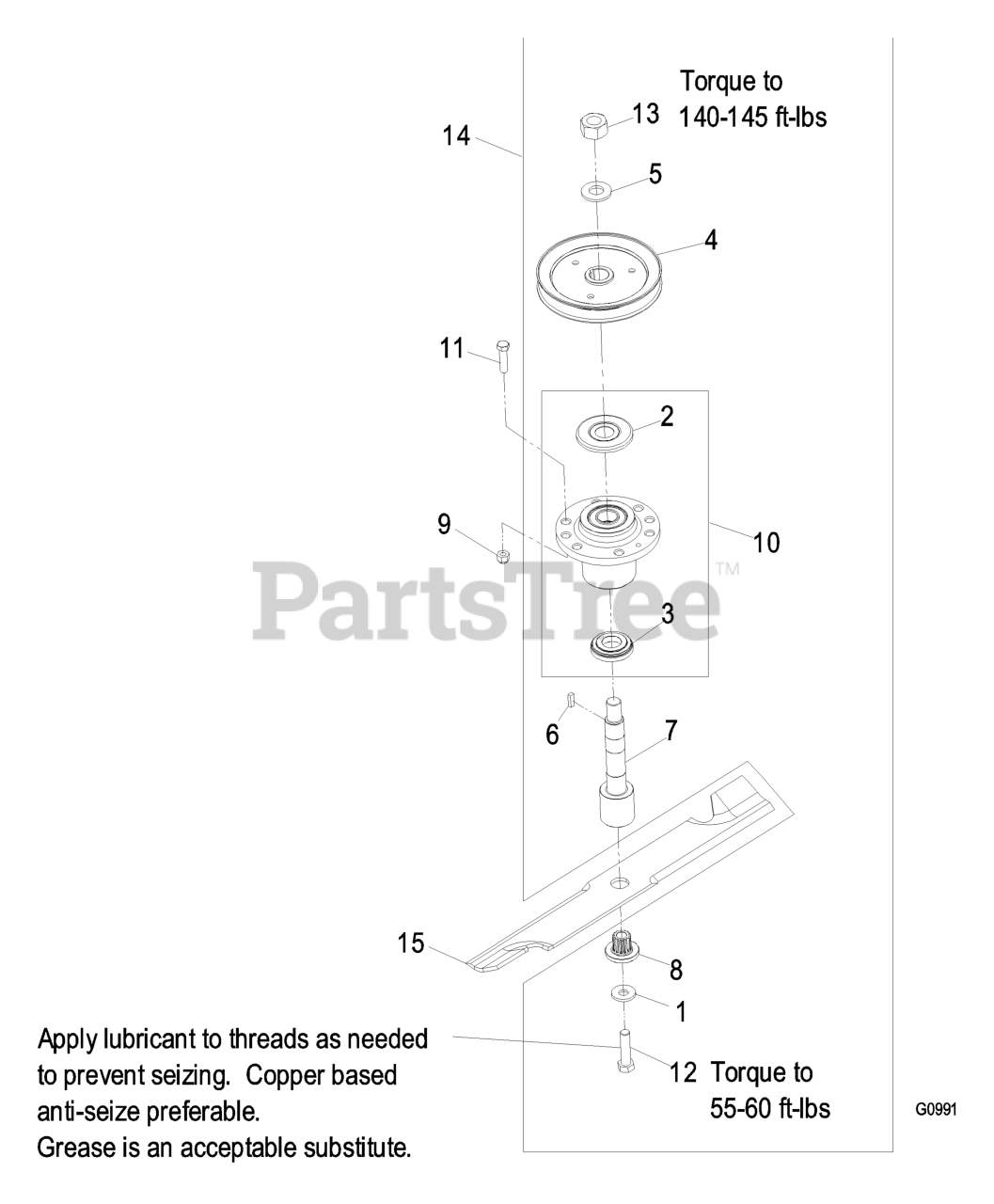

Spindle Assembly Parts Diagram

  • Title

1

Exmark 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 13

0

2

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$5.49

$

In Stock, only 2 left!

0

3

Exmark 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, only 3 left!

0

4

Exmark 103-2794

SHEAVE,BLADE DRIVE 6.30

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$68.99

$

In Stock, only 2 left!

0

Exmark 103-2795

SHEAVE,BLADE DRIVE 7.5

$99.99

$

Usually ships in 3-6 days

0

5

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 14

0

6

Exmark 103-2982

KEY

$2.99

$

In Stock, Qty 12

0

7

Exmark 103-9086

KIT, SPLINED SPINDLE 103-

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize.; Kit includes items #1, #5, #6, #8, #12 &

$214.99

$

In Stock, only 3 left!

0

8

Exmark 103-3037

BUSHING,SPLINED

$22.99

$

In Stock, Qty 20+

0

9

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

10

Exmark 103-8280

KIT, CUTTER HOUSING

$254.99

$

In Stock, only 3 left!

0

11

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

12

Exmark 3213-5

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

13

Exmark 3217-46

NUT-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on nut, Item #13.

$12.99

$

In Stock, Qty 13

0

14

Exmark 103-9076

ASM, CUTTER HSG COMPLETE

$470.99

$

In Stock, only 4 left!

0

Exmark 103-9074

ASM, CUTTER HSG COMP 72

$535.99

$

Usually ships in 3-6 days

0

15

Exmark 103-6402

103-6402-S
(Superseded to 103-6402-S)

$30.99

$

In Stock, Qty 20+

0

Exmark 103-6387

103-6387-S
(Superseded to 103-6387-S)

$31.99

$

In Stock, Qty 11

0

Exmark 103-6382

103-6382-S
(Superseded to 103-6382-S)

$36.99

$

In Stock, only 4 left!

0

Exmark 103-6397

116-5175-S
(Superseded to 116-5175-S)

$30.99

$

In Stock, only 1 left!

0

Exmark 103-6392

103-6392-S
(Superseded to 103-6392-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK524Q (52"), MK604Q (60") and MK724

$30.99

$

In Stock, Qty 20+

0

Exmark 103-6403

103-6403-S
(Superseded to 103-6403-S)

$31.99

$

In Stock, Qty 20+

0

Exmark 103-6388

103-6388-S
(Superseded to 103-6388-S)

$37.99

$

In Stock, Qty 20+

0

Exmark 103-6383

103-6383-S
(Superseded to 103-6383-S)

$34.99

$

In Stock, only 2 left!

0

Exmark 103-6398

116-5174-S
(Superseded to 116-5174-S)

$30.99

$

In Stock, only 1 left!

0

Exmark 103-6393

103-6393-S
(Superseded to 103-6393-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK524Q (52"), MK604Q (60") and MK724

$30.99

$

In Stock, Qty 20+

0

Exmark 103-6404

103-6404-S
(Superseded to 103-6404-S)

$43.99

$

In Stock, Qty 20+

0

Exmark 103-6389

103-6389-S
(Superseded to 103-6389-S)

$38.99

$

In Stock, Qty 7

0

Exmark 103-6384

103-6384-S
(Superseded to 103-6384-S)

$43.99

$

In Stock, Qty 20+

0

Exmark 103-6399

116-5171-S
(Superseded to 116-5171-S)

$43.99

$

In Stock, Qty 5

0

Exmark 103-6394

103-6394-S
(Superseded to 103-6394-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK524Q (52"), MK604Q (60") and MK724

$38.99

$

In Stock, Qty 20+

0
