FR700 K1 AS (FR700) - Honda Tiller, Made in Japan (SN: FR700-1100001 - FR700-9999999) TRANSMISSION CASE Parts Diagram

Tiller, Made in Japan

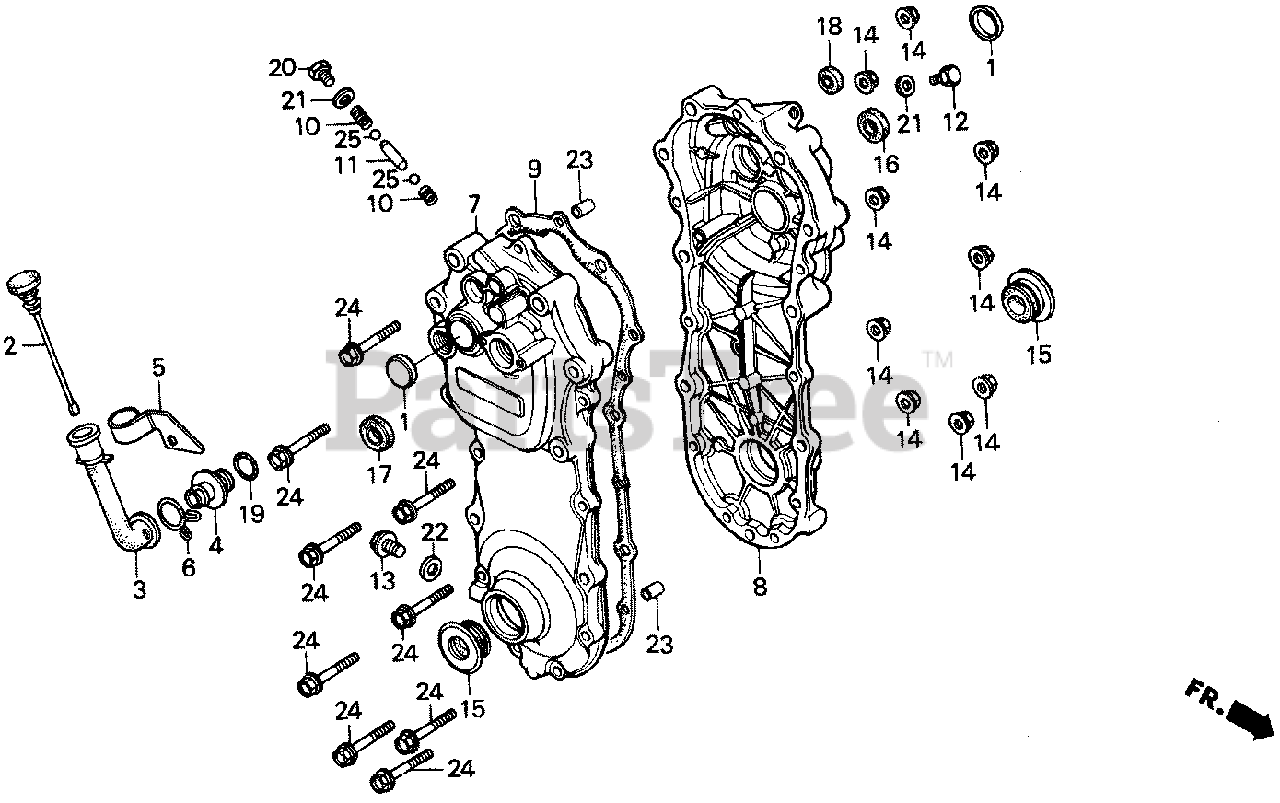

TRANSMISSION CASE Parts Diagram

  • Title
1

Honda 11105-657-300

PLUG, SEALING (30MM)

$8.49

$

Usually ships in 3-6 days

0

2

Honda 15621-723-750

DIPSTICK, OIL

$

$

Not available

3

Honda 15631-723-751

PIPE, OIL FILLER

$

$

Not available

4

Honda 15645-723-751

JOINT, OIL PIPE

$19.99

$

Usually ships in 3-6 days

0

5

Honda 15646-723-980

STAY, OIL PIPE

$

$

Not available

6

Honda 17348-673-000

CLIP, AIR HOSE (20.5MM)

$13.99

$

In Stock, only 1 left!

0

7

Honda 21111-723-751

CASE, R. TRANSMISSION

$

$

Currently unavailable

8

Honda 21211-723-751

CASE, L. TRANSMISSION

$

$

Not available

9

Honda 21281-723-307

GASKET, TRANSMISSION CASE

$

$

Not available

10

Honda 24271-765-000

SPRING, BALL SETTING

$2.49

$

Usually ships in 3-6 days

0

11

Honda 24481-719-000

PIECE, INTERLOCK

$

$

Not available

12

Honda 90101-721-000

BOLT, HEX. (8X10)

$

$

Not available

13

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$4.99

$

In Stock, Qty 12

0

14

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

15

Honda 91205-723-672

SEE PART DETAILS - PRI; SEAL, WATER

$18.99

$

In Stock, only 2 left!

0

16

Honda 91201-862-003

OIL SEAL (17X30X8)

$15.99

$

Usually ships in 3-6 days

0

17

Honda 91252-721-003

OIL SEAL (15X30X7)

$13.99

$

Usually ships in 3-6 days

0

18

Honda 91253-706-003

OIL SEAL (12X22X6)

$12.99

$

Usually ships in 3-6 days

0

19

Honda 91303-800-000

O-RING (16MM)

$2.99

$

In Stock, only 1 left!

0

20

Honda 92101-08010-0A

BOLT, HEX. (8X10)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 94102-08000

WASHER, PLAIN (8MM)

$1.49

$

Usually ships in 3-6 days

0

22

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 12

0

23

Honda 94301-08140

PIN A, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

24

Honda 95701-06035-00

BOLT, FLANGE (6X35)

$2.49

$

In Stock, only 2 left!

0

25

Honda 96211-08000

BALL, STEEL (#8) (1/4)

$1.99

$

Usually ships in 3-6 days

0
