FR700 K1 AS (FR700) - Honda Tiller, Made in Japan (SN: FR700-1100001 - FR700-9999999) PRIMARY CASE Parts Diagram

Tiller, Made in Japan

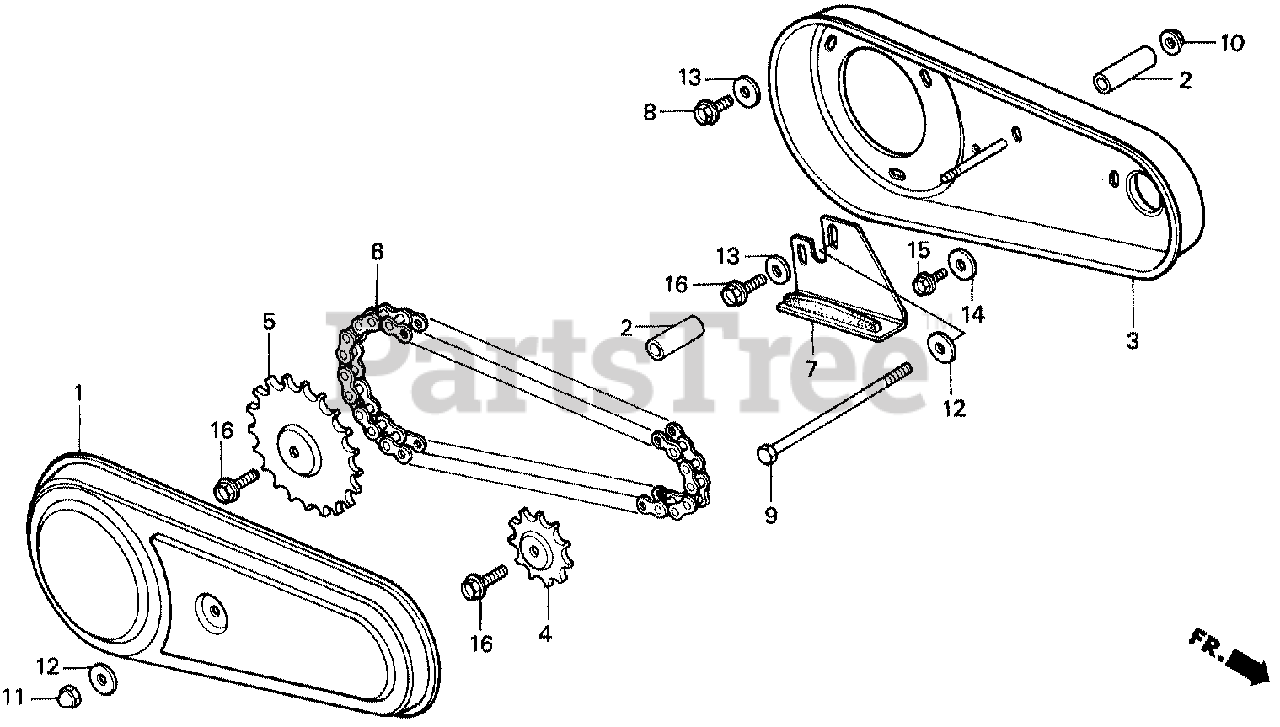

PRIMARY CASE Parts Diagram

  • Title

1

Honda 71111-723-Y00

COVER, PRIMARY

$

$

Not available

2

Honda 71115-723-980

COLLAR B, DISTANCE

$

$

Not available

3

Honda 71121-723-Y00

CASE, PRIMARY

$

$

Not available

4

Honda 73511-723-750

SPROCKET, PRIMARY DRIVE (11T) (NOT AVAILABLE)

$30.99

$

Usually ships in 3-6 days

0

5

Honda 73520-723-750

SPROCKET, PRIMARY DRIVEN (22T) (NOT AVAILABLE)

$

$

Not available

6

Honda 73531-723-751

SEE PART DETAILS - PRI; CHAIN, PRIMARY

$136.99

$

Usually ships in 3-6 days

0

7

Honda 73615-723-750

TENSIONER, PRIMARY CHAIN

$

$

Not available

8

Honda 90105-952-720

BOLT, FLANGE (8MM)

$5.99

$

Usually ships in 3-6 days

0

9

Honda 90105-GK8-000

BOLT, ENGINE HANGER

$

$

Not available

10

Honda 90236-300-000

SEE PART DETAILS - SUP; NUT, FLANGE (8MM)

$

$

Currently unavailable

10

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

11

Honda 94021-08000-0S

NUT, CAP (8MM)

$2.49

$

In Stock, Qty 7

0

12

Honda 94101-08000

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 20+

0

13

Honda 94101-08800

SEE PART DETAILS - SUP; WASHER, PLAIN (8MM)

$2.49

$

In Stock, only 3 left!

0

14

Honda 94103-06800

WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 10

0

15

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

15

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

16

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.49

$

In Stock, only 3 left!

0
