FR700 K1 AS (FR700) - Honda Tiller, Made in Japan (SN: FR700-1100001 - FR700-9999999) PISTON Parts Diagram

Tiller, Made in Japan

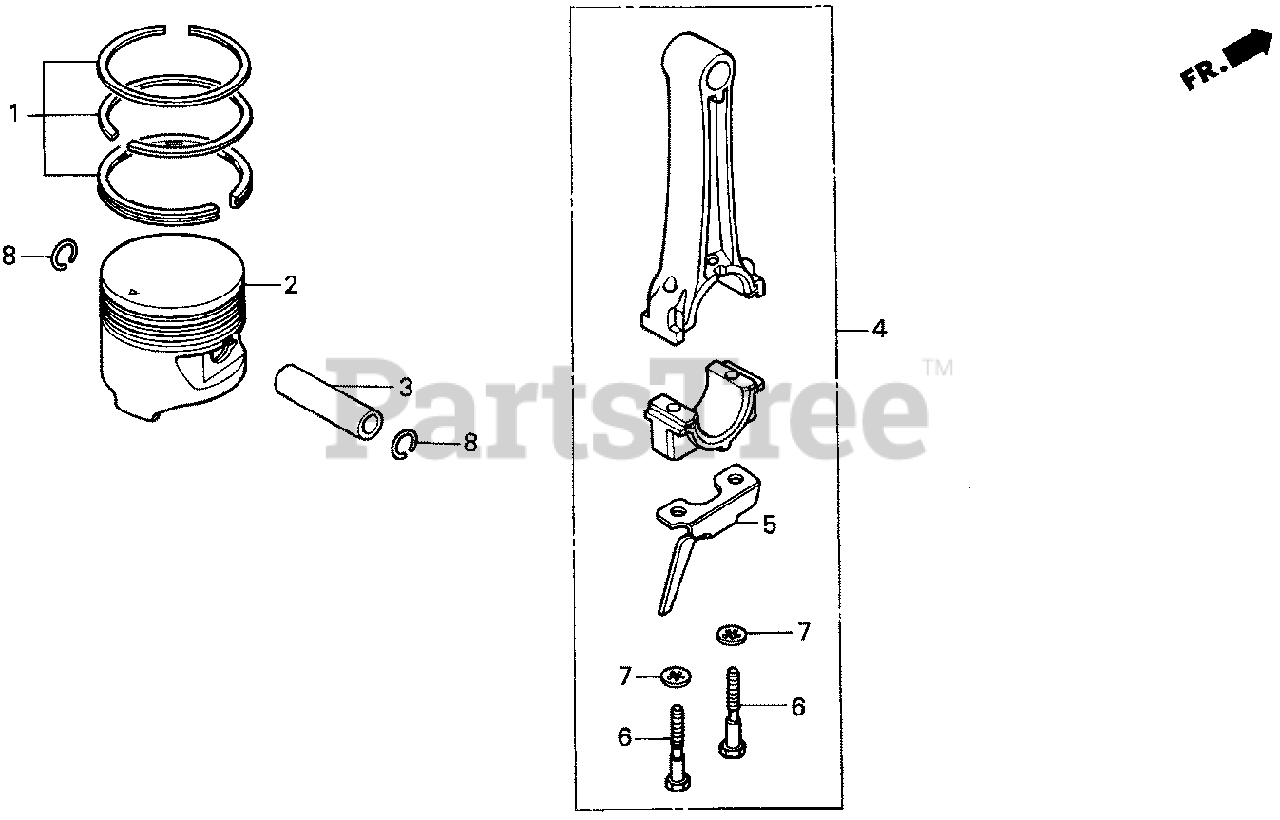

PISTON Parts Diagram

  • Title

1

Honda 13010-YA1-003

SEE PART DETAILS - PRI; RING SET, PISTON

$52.99

$

Usually ships in 3-6 days

0

1

Honda 13011-YA1-003

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25)

$

$

Not available

1

Honda 13011-889-013

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.25)
(Superseded to 13011-YA1-003)

$

$

Not available

1

Honda 13012-YA1-003

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50)

$56.99

$

Usually ships in 3-6 days

0

1

Honda 13013-YA1-003

SEE PART DETAILS - PRI; RING SET, PISTON (0.75)

$56.99

$

Usually ships in 3-6 days

0

2

Honda 13101-889-010

PISTON (STD)

$100.99

$

Usually ships in 3-6 days

0

2

Honda 13102-889-010

PISTON (OS 0.25)

$84.99

$

Usually ships in 3-6 days

0

2

Honda 13103-889-010

PISTON (OS 0.50)

$84.99

$

Usually ships in 3-6 days

0

2

Honda 13104-889-010

PISTON (0.75)

$84.99

$

Usually ships in 3-6 days

0

3

Honda 13111-369-000

PIN, PISTON

$

$

Not available

4

Honda 13200-889-030

ROD ASSY., CONNECTING

$158.99

$

Usually ships in 3-6 days

0

4

Honda 13200-889-506

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (US)

$

$

Currently unavailable

5

Honda 13281-889-010

DIPPER, CONNECTING ROD

$13.99

$

Usually ships in 3-6 days

0

6

Honda 90001-883-020

SEE PART DETAILS - PRI; BOLT, CONNECTING ROD (7MM)

$4.49

$

Usually ships in 3-6 days

0

7

Honda 90432-889-003

WASHER, LOCK (7MM)

$1.99

$

Usually ships in 3-6 days

0

8

Honda 94601-16000

CLIP, PISTON PIN (16MM)

$0.99

$

Usually ships in 3-6 days

0
