FR700 K1 AS (FR700) - Honda Tiller, Made in Japan (SN: FR700-1100001 - FR700-9999999) FR700 MUFFLER K-K1 Parts Diagram

Tiller, Made in Japan

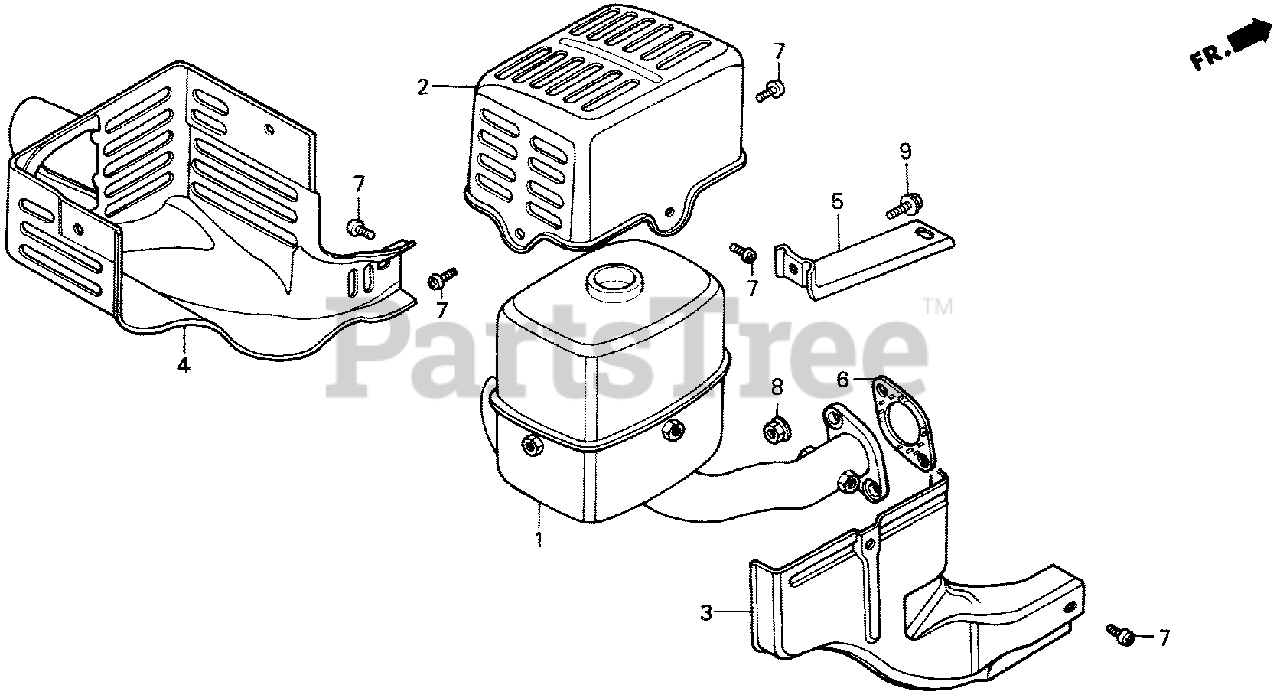

FR700 MUFFLER K-K1 Parts Diagram

  • Title

$

$

Currently unavailable

2

Honda 18311-728-000

COVER, MUFFLER

$

$

Currently unavailable

3

Honda 18315-728-000

PROTECTOR, R. MUFFLER

$

$

Currently unavailable

4

Honda 18316-728-010

PROTECTOR, L. MUFFLER

$

$

Currently unavailable

5

Honda 18321-889-770

STAY, MUFFLER

$

$

Not available

6

Honda 18381-889-306

SEE PART DETAILS - SUP; GASKET, MUFFLER
(Superseded to 18381-889-800)

$6.49

$

Usually ships in 3-6 days

0

6

Honda 18381-889-800

SEE PART DETAILS - PRI; GASKET, MUFFLER

$6.49

$

Usually ships in 3-6 days

0

7

Honda 93500-06006-0B

SCREW, PAN (6X6)

$1.49

$

Usually ships in 3-6 days

0

8

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 16

0

9

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 13

0
