FR700 K1 AS (FR700) - Honda Tiller, Made in Japan (SN: FR700-1100001 - FR700-9999999) FR700 CRANKCASE COVER K-K1 Parts Diagram

Tiller, Made in Japan

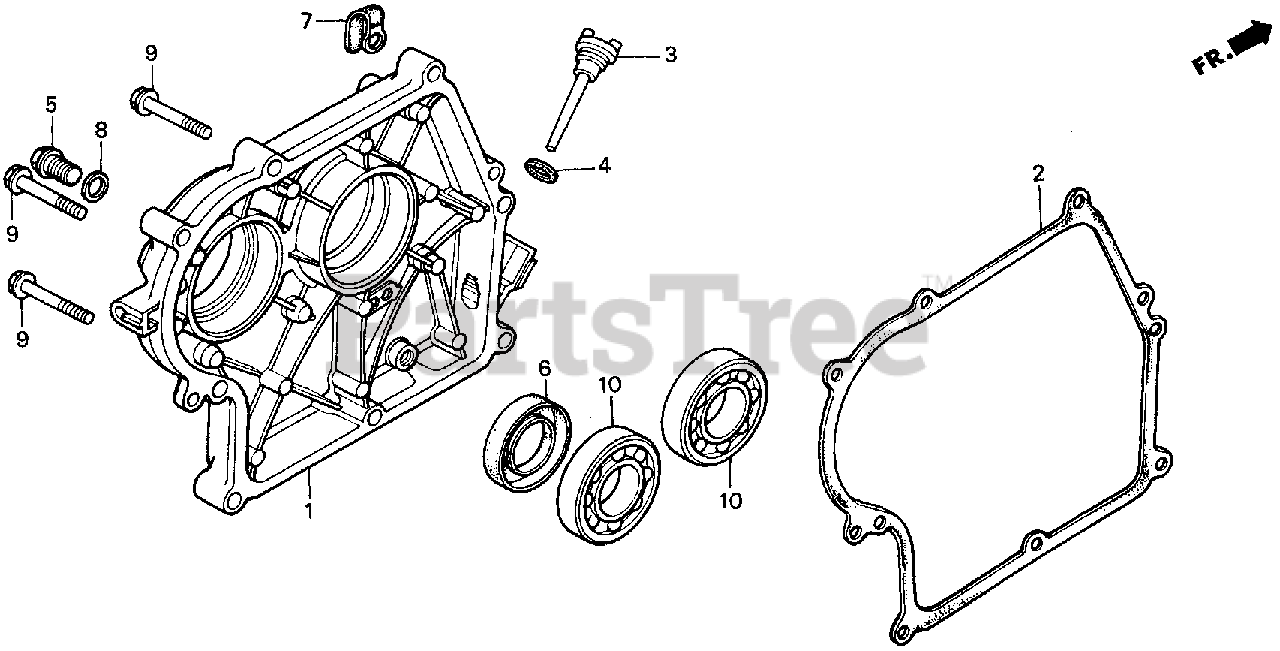

FR700 CRANKCASE COVER K-K1 Parts Diagram

  • Title
1

Honda 11310-728-010

COVER, CRANKCASE

$

$

Not available

2

Honda 11381-889-800

GASKET, CASE COVER

$16.99

$

Usually ships in 3-6 days

0

3

Honda 15620-890-000

CAP, OIL FILLER

$

$

Not available

4

Honda 15621-896-010

GASKET, OIL FILLER CAP

$5.49

$

In Stock, Qty 5

0

5

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$4.99

$

In Stock, Qty 12

0

6

Honda 91201-890-003

OIL SEAL (30X46X8)

$11.99

$

In Stock, Qty 5

0

8

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 12

0

9

Honda 95701-08040-08

BOLT, FLANGE (8X40)

$2.99

$

Usually ships in 3-6 days

0

10

Honda 96100-62060-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6206)

$30.99

$

In Stock, only 1 left!

0
