FR700 K1 AS (FR700) - Honda Tiller, Made in Japan (SN: FR700-1100001 - FR700-9999999) BELT COVER + DRIVE PULLEY Parts Diagram

Tiller, Made in Japan

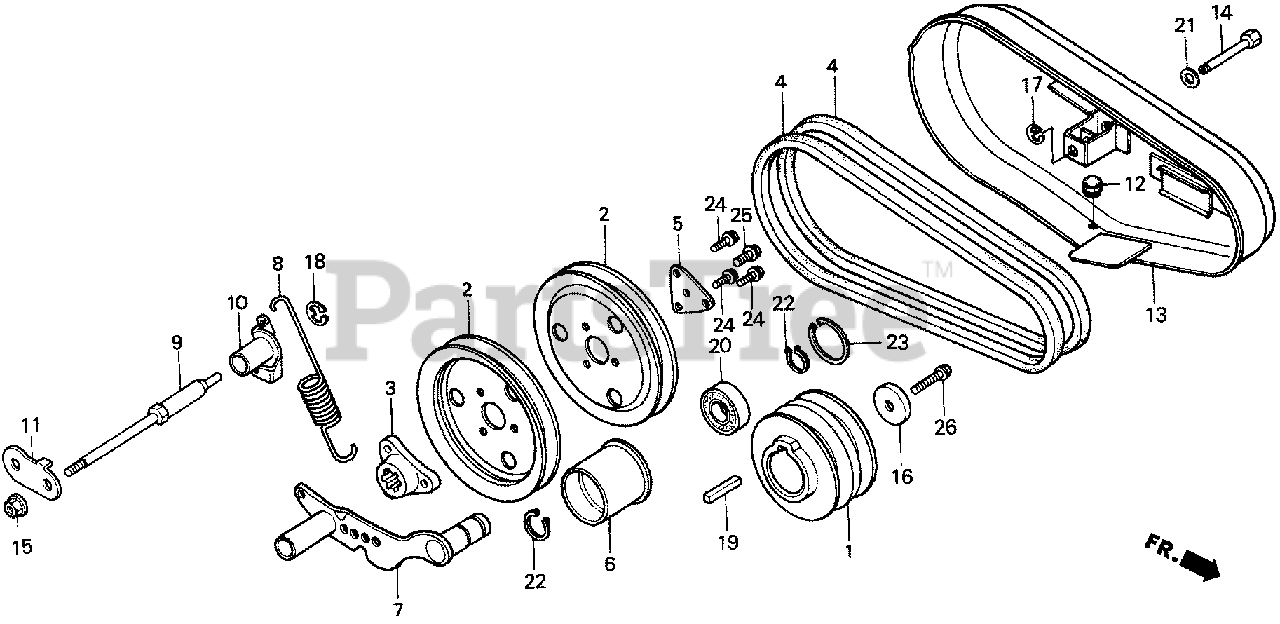

BELT COVER + DRIVE PULLEY Parts Diagram

  • Title
1

Honda 22411-723-770

PULLEY, DRIVEN (80MM) (NOT AVAILABLE)

$

$

Not available

2

Honda 22415-723-000

PULLEY (156MM)

$

$

Not available

3

Honda 22426-723-751

BOSS, DRIVEN PULLEY

$

$

Not available

4

Honda 22431-723-772

SEE PART DETAILS - PRI; V-BELT (35)

$

$

Not available

5

Honda 22461-723-000

PLATE, PULLEY

$

$

Not available

6

Honda 22511-723-000

ROLLER, TENSIONER

$

$

Not available

7

Honda 22520-723-750

ARM, TENSIONER

$

$

Not available

8

Honda 22531-723-750

SPRING, BELT TENSIONER

$

$

Currently unavailable

9

Honda 22553-723-750

SHAFT, CLUTCH LINK

$

$

Not available

10

Honda 22554-723-750

LINK, CLUTCH

$

$

Currently unavailable

11

Honda 32304-723-980

STAY D, CLIP

$

$

Not available

12

Honda 61112-715-000

STOPPER, TENSIONER ARM

$

$

Not available

13

Honda 63610-723-700

COVER, BELT

$

$

Currently unavailable

14

Honda 63615-723-670

LATCH, BELT COVER

$23.99

$

Usually ships in 3-6 days

0

15

Honda 90236-300-000

SEE PART DETAILS - SUP; NUT, FLANGE (8MM)

$

$

Currently unavailable

15

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

16

Honda 90534-706-010

WASHER, LOCK (8MM)

$6.99

$

Usually ships in 3-6 days

0

17

Honda 90652-719-000

E-RING (9MM)

$2.49

$

Usually ships in 3-6 days

0

18

Honda 90653-723-000

E-RING (10MM)

$1.99

$

In Stock, only 2 left!

0

19

Honda 90741-889-810

SEE PART DETAILS - PRI; KEY (7X7X33)

$9.49

$

Usually ships in 3-6 days

0

20

Honda 91058-719-003

BEARING, RADIAL BALL (6202G)

$30.99

$

Usually ships in 3-6 days

0

21

Honda 94101-10000

SEE PART DETAILS - PRI; WASHER, PLAIN (10MM)

$1.49

$

Usually ships in 3-6 days

0

22

Honda 94511-15000

CIRCLIP (OUTER) (15MM)

$0.99

$

In Stock, only 2 left!

0

23

Honda 94521-35000

CIRCLIP (INNER) (35MM) (NOT AVAILABLE)

$

$

Currently unavailable

24

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 5

0

25

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.49

$

In Stock, only 3 left!

0

26

Honda 95701-08028-08

BOLT, FLANGE (8X28)

$2.99

$

In Stock, only 2 left!

0
