FR700 AS (FR700) - Honda Tiller, Made in Japan (SN: FR700-1016293 - FR700-9999999) FR700 WIRE HARNESS K-K1 Parts Diagram

Tiller, Made in Japan

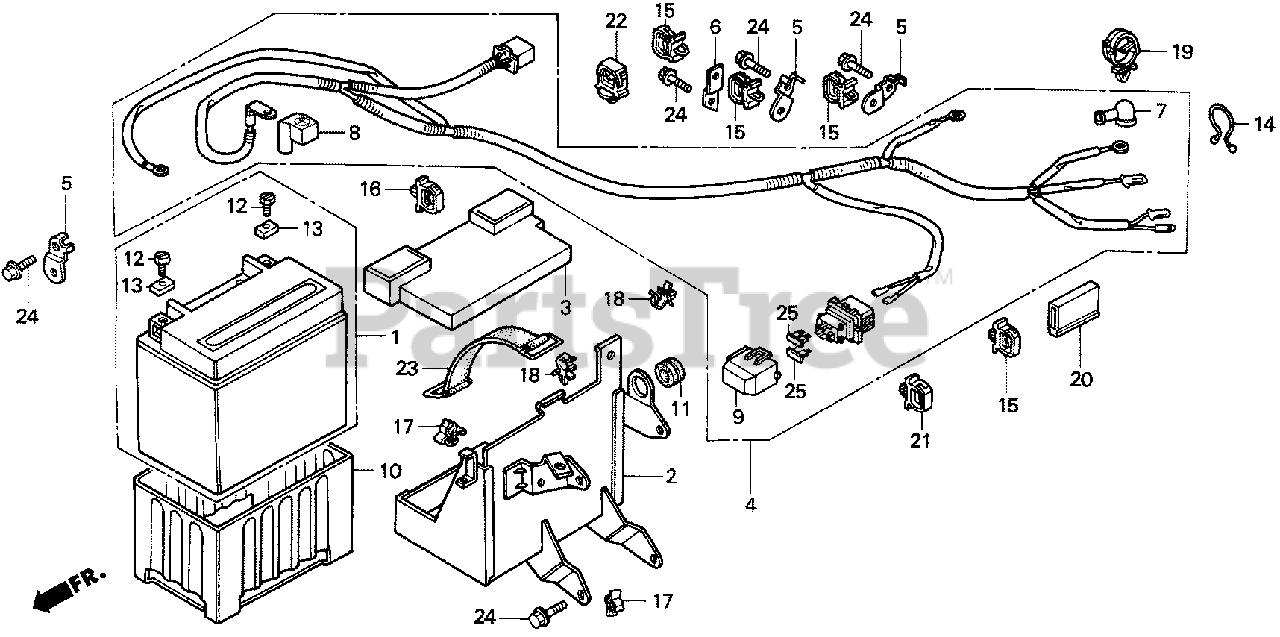

FR700 WIRE HARNESS K-K1 Parts Diagram

  • Title

1

Honda 31500-HA0-681

SEE PART DETAILS - SUP; BATTERY (YTH12-12B) (YUASA)

$

$

Not available

1

Honda 31500-HA0-682

SEE PART DETAILS - SUP; BATTERY (YTH12-12B) (YUASA)
(Superseded to 31500-HF1-678AH)

$153.99

$

Usually ships in 3-6 days

0

1

Honda 31500-HA0-683

SEE PART DETAILS - SUP; BATTERY (YTH12-12B) (YUASA)

$

$

Not available

1

Honda 31500-KM1-834

SEE PART DETAILS - SUP; BATTERY (YTX12-BS) (YUASA)

$

$

Not available

1

Honda 31500-HA0-685

SEE PART DETAILS - SUP; BATTERY (YTX12-BS) (YUASA)

$

$

Not available

1

Honda 31500-HA0-686

SEE PART DETAILS - SUP; BATTERY (YTX12-BS) (YUASA)

$

$

Not available

1

Honda 31500-HF1-677

SEE PART DETAILS - SUP; BATTERY (YTX12-BS) (YUASA)

$

$

Not available

1

Honda 31500-HF1-678

SEE PART DETAILS - SUP; BATTERY (YTX12-BS) (YUASA)
(Superseded to 31500-HF1-678AH)

$153.99

$

Usually ships in 3-6 days

0

2

Honda 31510-723-980

BOX, BATTERY

$

$

Not available

3

Honda 31513-ZB7-000

COVER, BATTERY

$21.99

$

Usually ships in 3-6 days

0

4

Honda 32100-723-981

WIRE HARNESS ASSY.

$

$

Not available

5

Honda 32302-723-980

STAY B, CLIP

$

$

Not available

6

Honda 32303-723-980

STAY C, CLIP

$

$

Not available

7

Honda 32411-230-000

COVER, STARTER MOTOR TERMINAL

$8.99

$

Usually ships in 3-6 days

0

8

Honda 32412-471-000

COVER, BATTERY TERMINAL

$

$

Not available

9

Honda 38251-723-981

COVER, FUSE CASE

$

$

Not available

10

Honda 50334-HA0-000

RUBBER, BATTERY

$

$

Not available

11

Honda 80115-KS5-000

RUBBER, BRACKET MOUNTING

$3.99

$

Usually ships in 3-6 days

0

12

Honda 90122-HA0-007

BOLT, BATTERY TERMINAL

$3.49

$

Usually ships in 3-6 days

0

13

Honda 90306-HA0-681

NUT, BATTERY TERMINAL

$2.49

$

Usually ships in 3-6 days

0

14

Honda 90630-751-000

SEE PART DETAILS - PRI; CLIP, PURSE LOCK

$2.49

$

Usually ships in 3-6 days

0

15

Honda 90650-SB2-003

CLIP, WIRE HARNESS (10MM)

$8.99

$

Usually ships in 3-6 days

0

16

Honda 90651-SB2-003

CLIP, WIRE HARNESS (13MM) (GRAY)

$8.99

$

Usually ships in 3-6 days

0

17

Honda 90654-SA4-003

CLIP, WIRE HARNESS (6MM) (WHITE)

$0.99

$

In Stock, Qty 8

0

18

Honda 90684-723-980

CLIP, HARNESS

$

$

Not available

19

Honda 90690-SA0-003

STRAP, WIRE HARNESS (25MM) (BLACK)

$9.99

$

Usually ships in 3-6 days

0

20

Honda 91406-ZE2-003

TUBE, FASTENER (30)

$6.99

$

Usually ships in 3-6 days

0

22

Honda 91505-ZA0-601

CLIP, HARNESS (7MM)

$4.99

$

Usually ships in 3-6 days

0

23

Honda 95012-17001

BAND F, BATTERY

$9.99

$

Usually ships in 3-6 days

0

24

Honda 95701-08014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14)

$2.49

$

In Stock, Qty 20+

0

25

Honda 98200-30500

FUSE, BLADE (5A)

$1.99

$

In Stock, Qty 5

0
