FR700 AS (FR700) - Honda Tiller, Made in Japan (SN: FR700-1016293 - FR700-9999999) FR700 HANDLE COLUMN K-K1 Parts Diagram

Tiller, Made in Japan

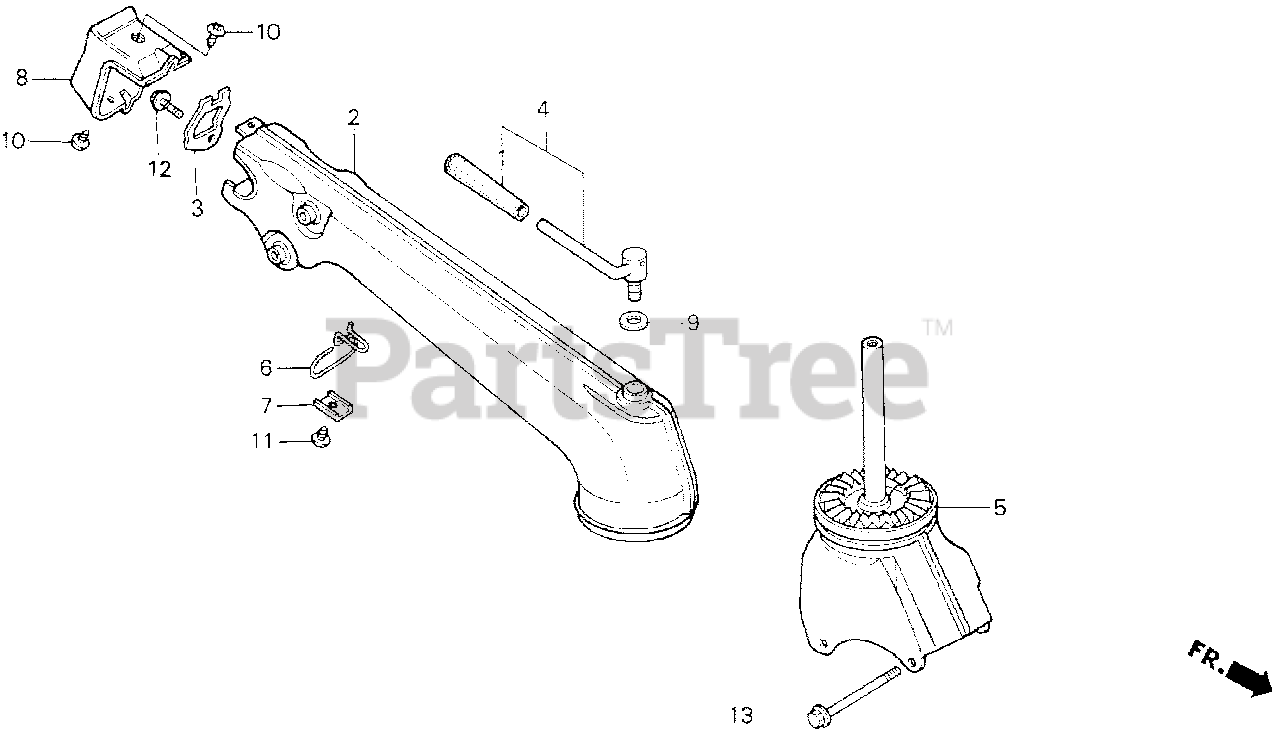

FR700 HANDLE COLUMN K-K1 Parts Diagram

  • Title

1

Honda 22542-900-000

GRIP, LEVER

$6.99

$

Usually ships in 3-6 days

0

2

Honda 50110-727-010ZA

COLUMN, HANDLE *R8* (BRIGHT RED)

$

$

Not available

3

Honda 50111-727-000

PLATE, HANDLE LOCK

$

$

Not available

4

Honda 50165-723-000

LEVER, HANDLE ADJUSTING

$

$

Not available

5

Honda 50220-723-980

BASE, SWING

$

$

Currently unavailable

6

Honda 50275-727-000

GUIDE, CABLE

$7.99

$

Usually ships in 3-6 days

0

7

Honda 50276-728-000

BRACKET, CABLE GUIDE

$4.49

$

Usually ships in 3-6 days

0

8

Honda 66111-727-000ZA

DASHBOARD, COLUMN *NH31* (MCKINLEY WHITE)

$9.49

$

In Stock, only 1 left!

0

9

Honda 90411-706-000

WASHER (10MM)

$1.99

$

Usually ships in 3-6 days

0

10

Honda 93903-35010

SCREW, TAPPING (5X8) (NOT AVAILABLE)

$0.99

$

Usually ships in 3-6 days

0

11

Honda 93903-35010

SCREW, TAPPING (5X8) (NOT AVAILABLE)

$0.99

$

Usually ships in 3-6 days

0

12

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

12

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

13

Honda 95801-10095-00

BOLT, FLANGE (10X95)

$5.99

$

In Stock, only 1 left!

0
