FR700 A (FR700) - Honda Tiller, Made in Japan (SN: FR700-1000001 - FR700-9999999) FR700 FAN COVER K-K1 Parts Diagram
Tiller, Made in Japan

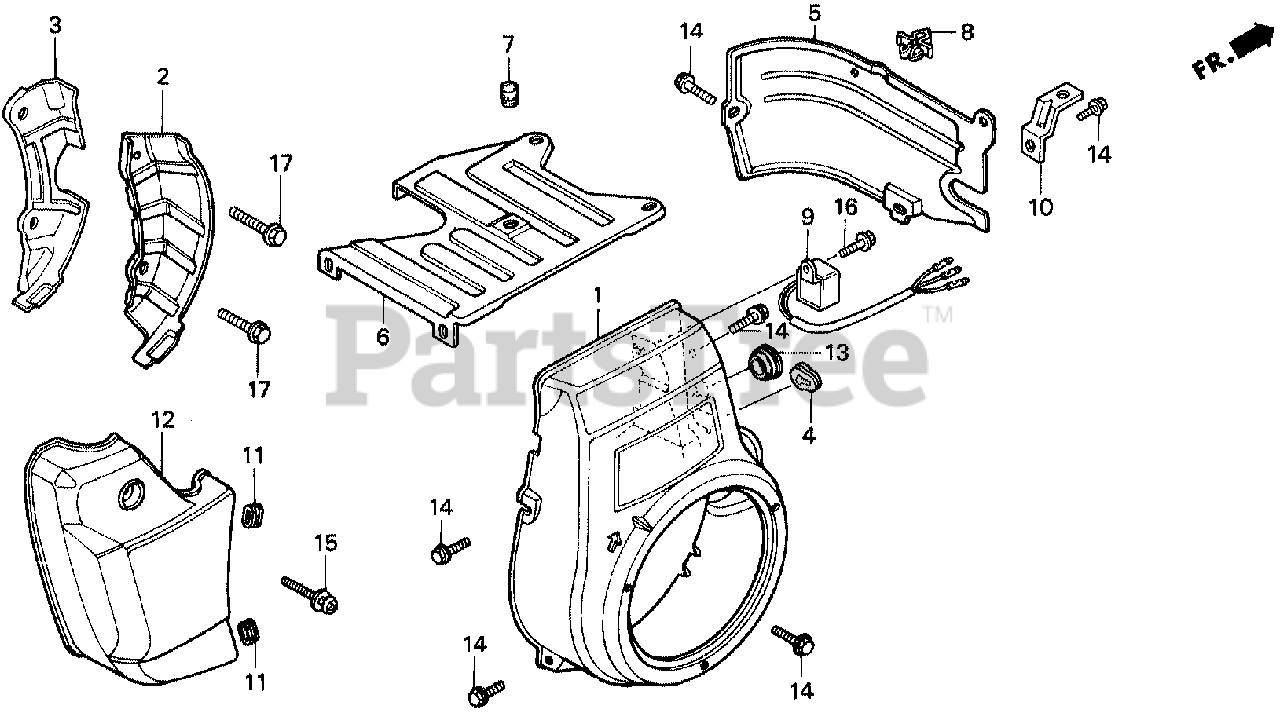

FR700 FAN COVER K-K1 Parts Diagram
Honda 19610-889-000H
SEE PART DETAILS - SUP; COVER, FAN *R8* (BRIGHT RED)
$
$
Currently unavailable
Honda 19611-889-000
PLATE, SIDE
$17.99
$
Usually ships in 3-6 days
Honda 19631-889-000
SHROUD
$
$
Not available
Honda 19641-889-010
COVER, TOP
$34.99
$
Usually ships in 3-6 days
Honda 19643-890-730
GROMMET, COVER
$
$
Not available
Honda 30701-883-000
SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM)
$3.99
$
In Stock, only 1 left!
Honda 40513-310-000
RUBBER, CHAIN CASE SETTING
$3.49
$
In Stock, only 2 left!
Honda 63501-889-770H
SEE PART DETAILS - SUP; COVER, ENGINE SIDE *R8* (BRIGHT RED)
$
$
Currently unavailable
Honda 81329-567-020
GROMMET, DRAIN HOLE
$5.49
$
Usually ships in 3-6 days
Honda 90013-883-000
BOLT, FLANGE (6X12) (CT200)
$1.99
$
In Stock, Qty 20+
Honda 93891-06028-00
SCREW-WASHER (6X28)
$0.99
$
Usually ships in 3-6 days
Honda 95701-08020-08
BOLT, FLANGE (8X20)
$2.49
$
Usually ships in 3-6 days
