FR700 A (FR700) - Honda Tiller, Made in Japan (SN: FR700-1000001 - FR700-9999999) FR700 CARBURETOR K-K1 Parts Diagram

Tiller, Made in Japan

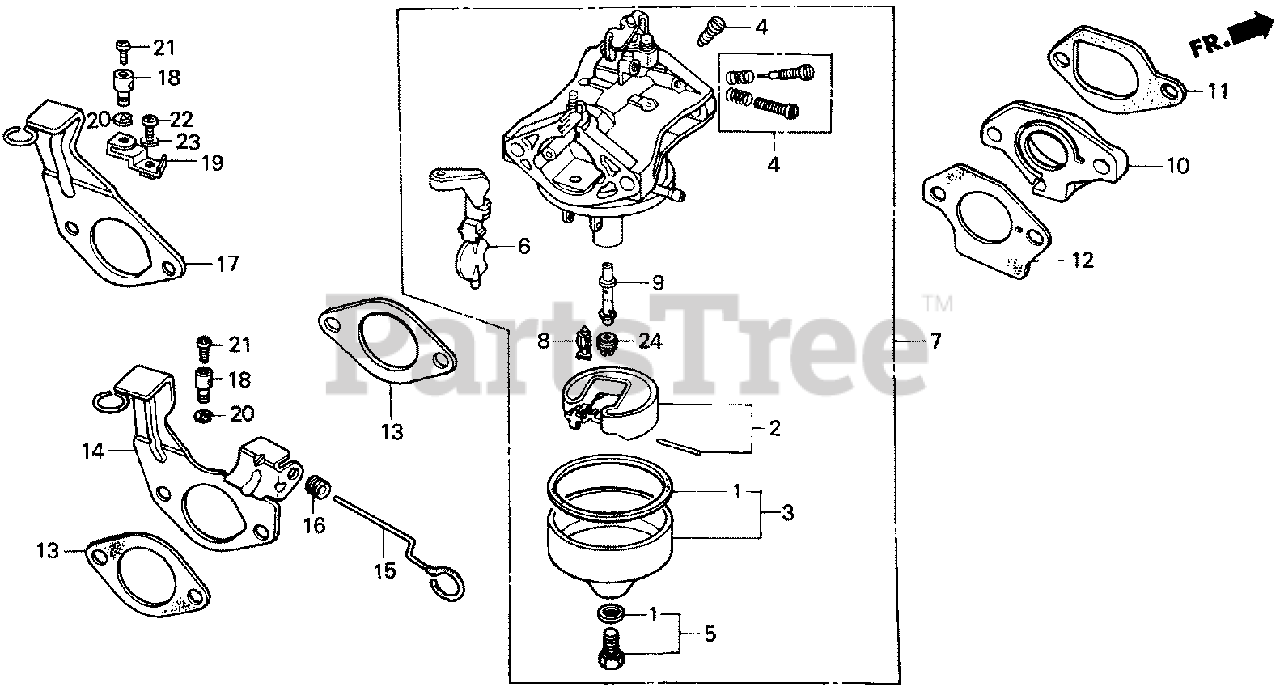

FR700 CARBURETOR K-K1 Parts Diagram

  • Title

1

Honda 16010-883-015

GASKET SET

Note: Use up to Engine SN BB33D C.

$13.99

$

In Stock, Qty 13

0

1

Honda 16010-883-015

GASKET SET

Note: Use from Engine SN BB33D D.

$13.99

$

In Stock, Qty 13

0

2

Honda 16013-883-005

FLOAT SET

$39.99

$

Usually ships in 3-6 days

0

3

Honda 16015-896-505

CHAMBER SET, FLOAT

Note: Use up to Engine SN BB33B B.

$41.99

$

Usually ships in 3-6 days

0

3

Honda 16015-896-702

CHAMBER SET, FLOAT

Note: Use from Engine SN BB33D D.

$

$

Not available

3

Honda 16015-896-702

CHAMBER SET, FLOAT

Note: Use from Engine SN BB33D A to BB33D C.

$

$

Not available

4

Honda 16016-ZA1-701

SCREW SET A

Note: Use from Engine SN BB33D D.

$12.99

$

Usually ships in 3-6 days

0

4

Honda 16016-883-661

SEE PART DETAILS - SUP; SCREW SET A

Note: Use from Engine SN BB33D A to BB33D C.

$

$

Currently unavailable

4

Honda 16016-890-015

SEE PART DETAILS - PRI; SCREW SET A (NOT AVAILABLE)

Note: Use up to Engine SN BB33B B.

$

$

Not available

5

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET B
(Superseded to 16028-ZK7-S91)

Note: Use from Engine SN BB33D C.

$13.99

$

In Stock, only 1 left!

0

5

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET B
(Superseded to 16028-ZK7-S91)

Note: Use up to Engine SN BB33D B.

$13.99

$

In Stock, only 1 left!

0

6

Honda 16044-889-005

CHOKE SET

$42.99

$

Usually ships in 3-6 days

0

7

Honda 16100-728-053

SEE PART DETAILS - SUP; CARBURETOR ASSY.

$

$

Currently unavailable

7

Honda 16100-728-663

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BB33D D)

Note: Use from Engine SN 1095733.

$

$

Currently unavailable

7

Honda 16100-728-663

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BB33D D)

$

$

Currently unavailable

8

Honda 16155-883-005

VALVE, FLOAT

$27.99

$

Usually ships in 3-6 days

0

9

Honda 16166-889-005

NOZZLE, MAIN

$36.99

$

Usually ships in 3-6 days

0

10

Honda 16211-889-000

INSULATOR, CARBURETOR

$17.99

$

Usually ships in 3-6 days

0

11

Honda 16212-889-800

GASKET, INSULATOR

$2.49

$

In Stock, only 1 left!

0

12

Honda 16221-890-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-890-800)

$2.99

$

In Stock, only 4 left!

0

12

Honda 16221-890-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.99

$

In Stock, only 4 left!

0

13

Honda 16269-890-306

SEE PART DETAILS - SUP; GASKET, AIR CLEANER
(Superseded to 16269-890-800)

$1.99

$

In Stock, only 3 left!

0

13

Honda 16269-890-800

SEE PART DETAILS - PRI; GASKET, AIR CLEANER

$1.99

$

In Stock, only 3 left!

0

14

Honda 16598-889-770

STAY, CHOKE CONTROL

$

$

Currently unavailable

15

Honda 16611-889-730

ROD, CHOKE CONTROL

$

$

Currently unavailable

16

Honda 16613-883-610

GROMMET, CHOKE ROD

$2.99

$

Usually ships in 3-6 days

0

18

Honda 16617-890-010

HOLDER, CABLE

$8.99

$

In Stock, only 1 left!

0

20

Honda 90605-230-000

CIRCLIP (5MM)

$4.49

$

In Stock, only 2 left!

0

21

Honda 93500-04008-0A

SCREW, PAN (4X8)

$1.49

$

In Stock, only 4 left!

0

24

Honda 99101-124-0850

JET, MAIN (#85)

$12.99

$

Usually ships in 3-6 days

0

24

Honda 99101-124-0880

JET, MAIN (#88)

$12.99

$

Usually ships in 3-6 days

0

24

Honda 99101-124-0900

JET, MAIN (#90)

$12.99

$

Usually ships in 3-6 days

0
