FR700 A (FR700) - Honda Tiller, Made in Japan (SN: FR700-1000001 - FR700-9999999) BELT COVER STAY Parts Diagram

Tiller, Made in Japan

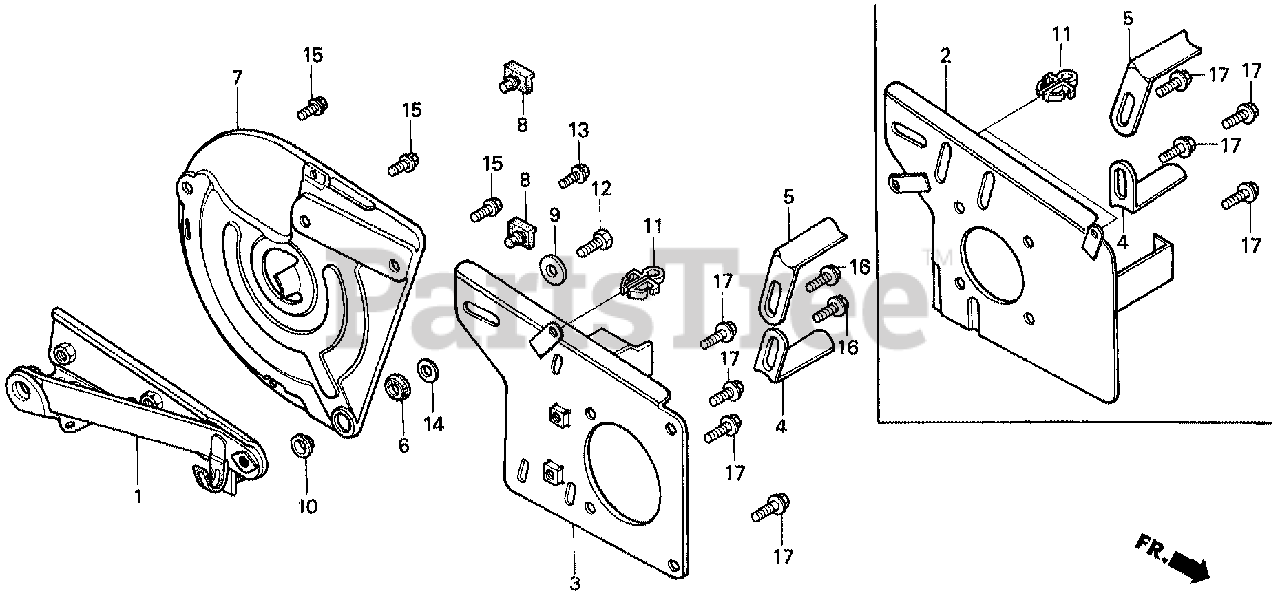

BELT COVER STAY Parts Diagram

  • Title

1

Honda 11801-723-750

STAY, ENGINE

$

$

Currently unavailable

3

Honda 11802-723-770

PLATE, ENGINE ADJUSTING

$

$

Not available

4

Honda 22441-723-750

STOPPER A, BELT (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 22442-723-750

STOPPER B, BELT

$11.99

$

Usually ships in 3-6 days

0

6

Honda 32983-028-000

GROMMET, WIRE HARNESS

$1.99

$

Usually ships in 3-6 days

0

7

Honda 50650-723-000

STAY, BELT COVER

$

$

Not available

8

Honda 62611-727-000

GROMMET, BELT COVER

$4.49

$

Usually ships in 3-6 days

0

9

Honda 90430-657-000

WASHER (8MM)

$9.49

$

In Stock, only 1 left!

0

10

Honda 90563-045-000

WASHER, NUMBER BRACKET SETTING

$4.49

$

Usually ships in 3-6 days

0

12

Honda 92101-08016-0H

SEE PART DETAILS - PRI; BOLT, HEX. (8X16)

$2.49

$

Usually ships in 3-6 days

0

13

Honda 93404-06016-00

SEE PART DETAILS - PRI; BOLT-WASHER (6X16)

Note: Use from Frame SN 1016293.

$2.49

$

Usually ships in 3-6 days

0

13

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

Note: Use up to Frame SN 1016292.

$

$

Currently unavailable

13

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

Note: Use up to Frame SN 1016292.

$2.49

$

In Stock, only 1 left!

0

14

Honda 94102-08000

WASHER, PLAIN (8MM)

Note: Use up to Frame SN 1016292.

$1.49

$

Usually ships in 3-6 days

0

15

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

Note: Use from Frame SN 1016293.

$

$

Currently unavailable

15

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

Note: Use from Frame SN 1016293.

$2.49

$

In Stock, only 1 left!

0

16

Honda 95701-08014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14)

$2.49

$

In Stock, Qty 20+

0

17

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.49

$

In Stock, only 3 left!

0
