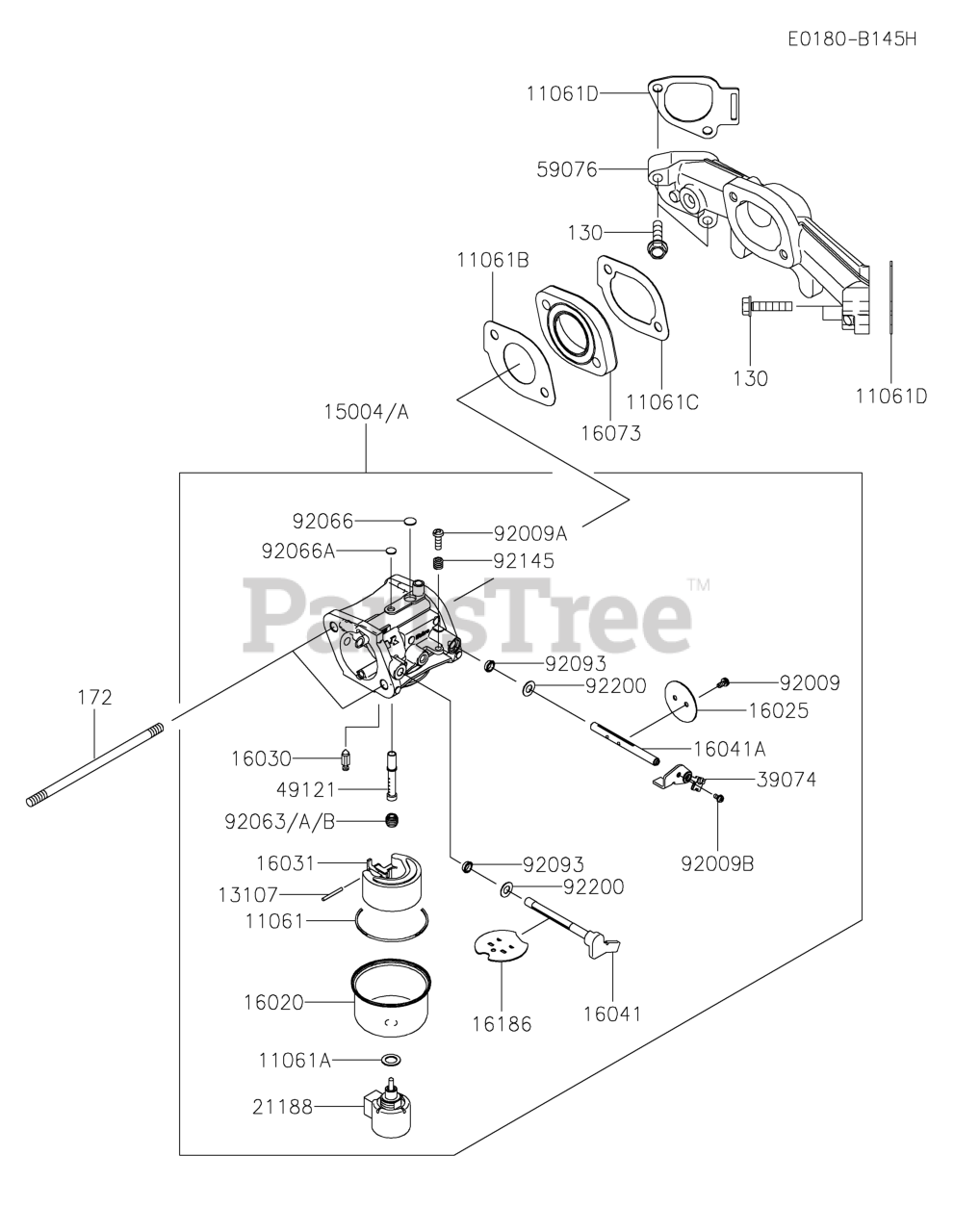

FR691V-HS05 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

CARBURETOR Parts Diagram

  • Title

11061

Cub Cadet KM-11061-7009

GASKET-FLOAT CHAMBER

$2.99

$

In Stock, Qty 20+

0

11061A

Cub Cadet KM-11061-7010

WASHER-CHAMBER BOL

$3.49

$

In Stock, Qty 20+

0

11061B

Cub Cadet KM-11061-7087

GASKET-INSULATOR

$1.99

$

In Stock, Qty 20+

0

11061C

Cub Cadet KM-11061-7088

GASKET-INSULATOR/MANIFOLD

$1.99

$

In Stock, Qty 16

0

11061D

Cub Cadet KM-11061-7093

INTAKE MANIFOLD GASKET

$1.99

$

In Stock, Qty 20+

0

13107

Cub Cadet KM-13107-7018

PIN-FLOAT

$4.49

$

In Stock, only 3 left!

0

15004

Cub Cadet KM-15004-1063

CARBURETOR
(Superseded to KM-15004-0985)

$

$

Not available

16020

Cub Cadet KM-16020-7003

CHAMBER-FLOAT

$14.99

$

In Stock, only 1 left!

0

16025

Cub Cadet KM-16025-7017

PLATE-THROTTLE SHA

$16.99

$

Usually ships in 2-5 days

0

16030

Cub Cadet KM-16030-7003

FLOAT NEEDLE VALVE

$20.99

$

In Stock, Qty 13

0

16031

Cub Cadet KM-16031-7002

FLOAT

$28.99

$

In Stock, only 1 left!

0

16041

Cub Cadet KM-16041-0007

CHOKE SHAFT

$16.99

$

In Stock, only 2 left!

0

16041A

Cub Cadet KM-16041-7051

THROTTLE SHAFT

$28.99

$

In Stock, only 1 left!

0

16073

Cub Cadet KM-16073-7013

CARBURETOR INSULATOR MOUNTING

$8.99

$

In Stock, only 3 left!

0

16186

Cub Cadet KM-16186-7006

CHOKE SHAFT PLATE

$15.99

$

In Stock, only 1 left!

0

21188

Cub Cadet KM-21188-7002

FUEL SOLENOID

$171.99

$

In Stock, only 1 left!

0

39074

Cub Cadet KM-39074-7001

LEVER-THROTTLE SHA

$7.49

$

In Stock, only 1 left!

0

49121

Cub Cadet KM-49121-7018

MAIN NOZZLE

$34.99

$

Usually ships in 2-5 days

0

59076

Cub Cadet KM-59076-0009

INTAKE MANIFOLD

$159.99

$

Usually ships in 2-5 days

0

92009

Cub Cadet KM-92009-2083

SCREW

$2.49

$

In Stock, Qty 5

0

92009A

Cub Cadet KM-92009-2349

SCREW-THROTTLE STO

$1.49

$

In Stock, only 3 left!

0

92009B

Cub Cadet KM-92009-2402

SCREW-THROTTLE LVR

$1.99

$

In Stock, only 1 left!

0

92063

Cub Cadet KM-92063-7141

MAIN JET #122

$12.99

$

Usually ships in 2-5 days

0

92063A

Cub Cadet KM-92063-7142

MAIN JET #124

$13.99

$

In Stock, only 1 left!

0

92063B

Cub Cadet KM-92063-7149

MAIN JET #120

$13.99

$

In Stock, only 1 left!

0

92066

Cub Cadet KM-92066-2204

PLUG

$3.99

$

In Stock, only 2 left!

0

92066A

Cub Cadet KM-92066-2244

PLUG

$1.99

$

In Stock, only 3 left!

0

92093

Cub Cadet KM-92093-0593

SEAL-THROT/CHOK SH

$2.49

$

In Stock, Qty 20+

0

92145

Cub Cadet KM-92145-1579

SPRING

$2.49

$

Usually ships in 2-5 days

0

92200

Cub Cadet KM-92200-0848

WASHER-THROT/CHOK

$1.49

$

In Stock, Qty 20+

0

130

Cub Cadet KM-130BA0630

BOLT-FLANGED-6X30

$1.99

$

In Stock, Qty 17

0

172

Cub Cadet KM-172BA06120

BOLT-STUD

$3.99

$

In Stock, only 1 left!

0
