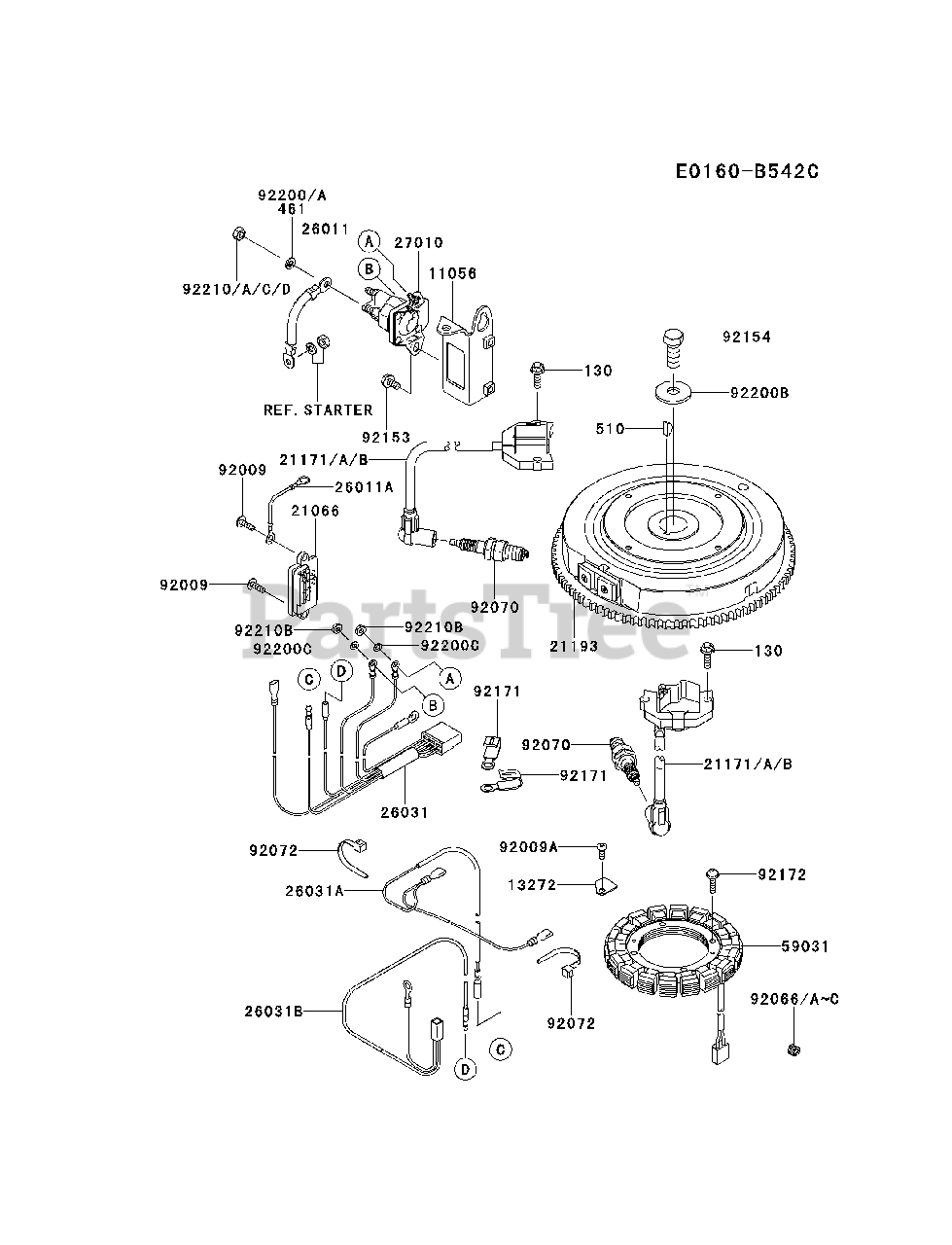

FR691V-BS13 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

11056

Kawasaki 11056-7003

BRACKET

$7.99

$

Usually ships in 2-5 days

0

13272

Kawasaki 13272-7012

PLATE

$1.49

$

Usually ships in 2-5 days

0

21066

Kawasaki 21066-7017

REGULATOR-VOLTAGE

$52.99

$

In Stock, Qty 20+

0

21171

Kawasaki 21171-0711

COIL-ASSY-IGNITION
(Superseded to 211710743)

$77.99

$

In Stock, Qty 20+

0

21193

Kawasaki 21193-7038

FLYWHEEL-ASSY
(Superseded to 21193-0016)

$266.99

$

In Stock, only 3 left!

0

26011

Kawasaki 26011-7023

WIRE-LEAD
(Superseded to 26011-0911)

$4.49

$

Usually ships in 2-5 days

0

26011A

Kawasaki 26011-7025

WIRE-LEAD,L=95

$2.99

$

In Stock, Qty 9

0

26031

Kawasaki 26031-1196

HARNESS

$28.99

$

In Stock, Qty 10

0

26031A

Kawasaki 26031-7040

HARNESS

$5.99

$

In Stock, Qty 20+

0

26031B

Kawasaki 26031-7041

HARNESS

$11.99

$

In Stock, Qty 20+

0

27010

Kawasaki 27010-7007

SWITCH

$24.99

$

In Stock, only 1 left!

0

59031

Kawasaki 59031-7017

COIL-CHARGING

$127.99

$

In Stock, Qty 20+

0

92009

Kawasaki 92009-2303

SCREW

$2.99

$

In Stock, Qty 20+

0

92009A

Kawasaki 92009-2308

SCREW

$0.99

$

In Stock, Qty 6

0

92066A

Kawasaki 92066-0762

PLUG
(Superseded to 920660881)

$4.49

$

In Stock, Qty 6

0

92066C

Kawasaki 92066-7026

PLUG
(Superseded to 920660881)

$4.49

$

In Stock, Qty 6

0

92070

Kawasaki 92070-7004

PLUG-SPARK,BPR4ES,SOLID
(Superseded to BPR4ES)

$3.49

$

In Stock, only 2 left!

0

92072

Kawasaki 92072-7003

BAND

$1.49

$

In Stock, Qty 7

0

92153

Kawasaki 92153-7043

BOLT,6X12

$

$

Not available

92154

Kawasaki 92154-7003

BOLT,12X30

$4.99

$

In Stock, Qty 20+

0

92171

Kawasaki 92171-7008

CLAMP

$1.99

$

In Stock, Qty 5

0

92172

Kawasaki 92172-7018

SCREW,5X20

$0.99

$

In Stock, Qty 20+

0

92200A

Kawasaki 92200-0834

WASHER

$0.99

$

Usually ships in 2-5 days

0

92200B

Kawasaki 92200-7002

WASHER

$3.49

$

In Stock, Qty 10

0

92200C

Kawasaki 92200-7037

WASHER

$0.99

$

In Stock, only 2 left!

0

92210A

Kawasaki 92210-0834

NUT

$

$

Not available

92210B

Kawasaki 92210-7030

NUT

$0.99

$

In Stock, only 2 left!

0

92210D

Kawasaki 92210-7034

NUT

$0.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130AA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)

$3.49

$

In Stock, Qty 20+

0

461

Kawasaki 461DA0600

WASHER-SPRING,6MM
(Superseded to 92022-1580)

$0.99

$

In Stock, Qty 6

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
