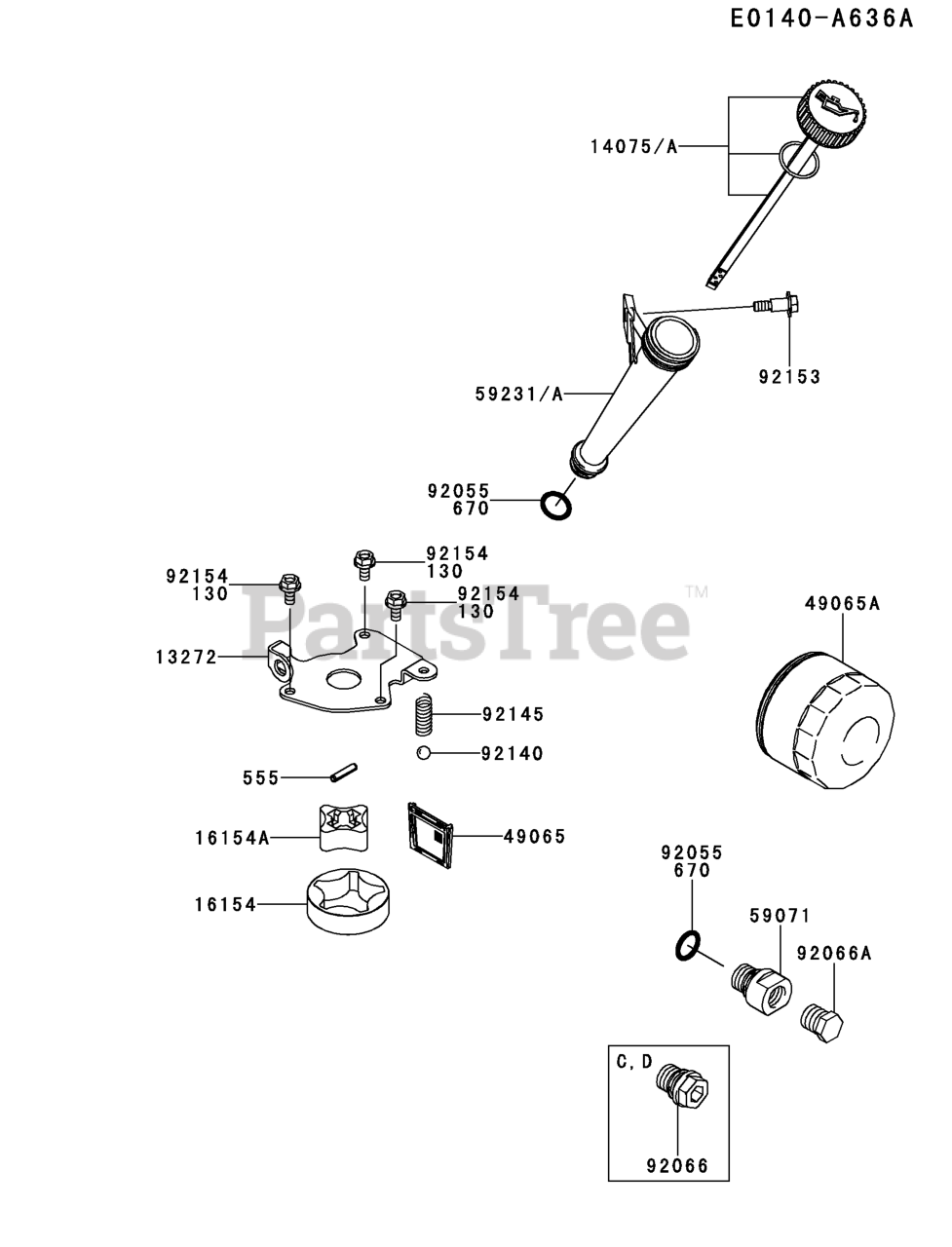

FR691V-AS19 - Kawasaki Engine LUBRICATION-EQUIPMENT Parts Diagram

Engine

LUBRICATION-EQUIPMENT Parts Diagram

  • Title

13272

Kawasaki 13272-7011

PLATE,ROTOR

$8.49

$

Usually ships in 2-5 days

0

14075

Kawasaki 14075-0037

CAP-ASSY
(Superseded to 14075-7013)

$

$

Not available

16154

Kawasaki 16154-7010

ROTOR-PUMP,OUTER

$18.99

$

In Stock, only 4 left!

0

16154A

Kawasaki 16154-7011

ROTOR-PUMP,INNER

$8.99

$

In Stock, Qty 13

0

49065

Kawasaki 49065-7006

FILTER-OIL

$

$

Not available

49065A

Kawasaki 49065-7007

FILTER-OIL
(Superseded to 49065-0721)

$18.99

$

Usually ships in 2-5 days

0

59071

Kawasaki 59071-7023

JOINT
(Superseded to 59071-7004)

$8.99

$

In Stock, Qty 11

0

59231

Kawasaki 59231-0712

FILLER
(Superseded to 59231-7016)

$

$

Not available

92066A

Kawasaki 92066-0827

PLUG

$1.49

$

In Stock, only 3 left!

0

92140

Kawasaki 92140-7003

BALL,STEEL,13/32

$1.49

$

In Stock, Qty 13

0

92145

Kawasaki 92145-1809

SPRING,OIL RELIEF

$0.99

$

In Stock, Qty 8

0

92153

Kawasaki 92153-7008

BOLT

$

$

Not available

130

Kawasaki 130BA0612

BOLT-FLANGED,6X12
(Superseded to 92009-7008)

$1.99

$

In Stock, Qty 20+

0

555

Kawasaki 555A0420

PIN-SPRING,4X20

$0.99

$

In Stock, Qty 11

0

670

Kawasaki 670D2016

O RING,16MM
(Superseded to M88478)

$1.99

$

In Stock, Qty 20+

0
