FR651V-CS30 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

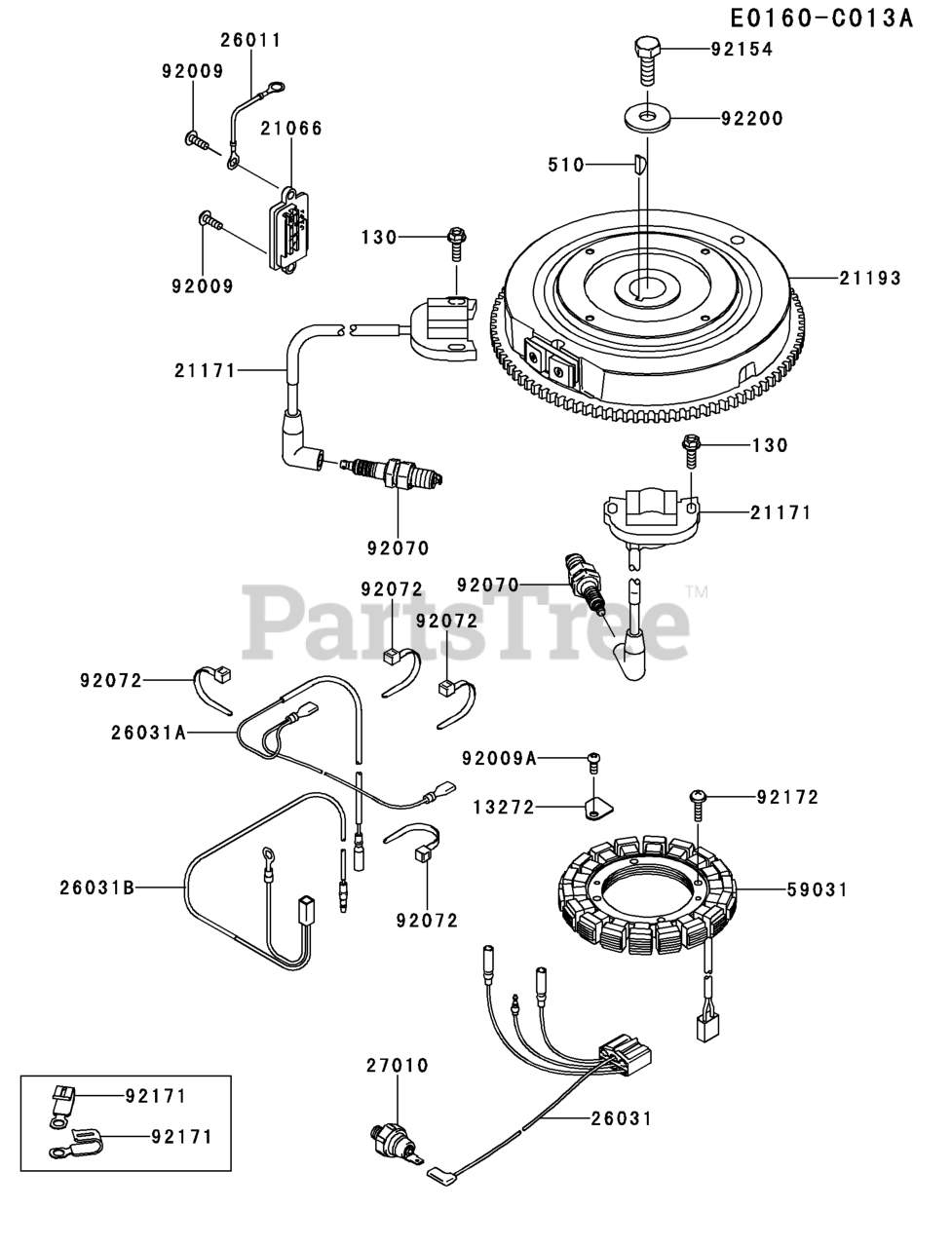

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

130

Kawasaki 130BA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)

$3.49

$

In Stock, Qty 20+

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0

13272

Kawasaki 13272-7012

PLATE

$1.49

$

Usually ships in 2-5 days

0

21066

Kawasaki 21066-7017

REGULATOR-VOLTAGE

$52.99

$

In Stock, Qty 20+

0

21171

Kawasaki 21171-0711

COIL-ASSY-IGNITION
(Superseded to 211710743)

$77.99

$

In Stock, Qty 20+

0

21193

Kawasaki 21193-0016

FLYWHEEL-ASSY
(Superseded to 21193-0035)

$266.99

$

In Stock, only 3 left!

0

26011

Kawasaki 26011-7025

WIRE-LEAD,L=95

$2.99

$

In Stock, Qty 9

0

26031

Kawasaki 26031-1630

HARNESS

$9.99

$

In Stock, only 1 left!

0

26031A

Kawasaki 26031-7040

HARNESS

$5.99

$

In Stock, Qty 20+

0

26031B

Kawasaki 26031-7041

HARNESS

$11.99

$

In Stock, Qty 20+

0

27010

Kawasaki 27010-7001

SWITCH
(Superseded to 27010-0817)

$23.99

$

In Stock, Qty 9

0

59031

Kawasaki 59031-7017

COIL-CHARGING

$127.99

$

In Stock, Qty 20+

0

92009

Kawasaki 92009-2303

SCREW

$2.99

$

In Stock, Qty 20+

0

92009A

Kawasaki 92009-2308

SCREW

$0.99

$

In Stock, Qty 6

0

92070

Kawasaki 92070-7004

PLUG-SPARK,BPR4ES
(Superseded to BPR4ES)

Note: NGK

$3.49

$

In Stock, only 1 left!

0

92072

Kawasaki 92072-7003

BAND

$1.49

$

In Stock, Qty 7

0

92154

Kawasaki 92154-7003

BOLT,12X30

$4.99

$

In Stock, Qty 20+

0

92171

Kawasaki 92171-7008

CLAMP

$1.99

$

In Stock, Qty 5

0

92172

Kawasaki 92172-7018

SCREW,5X20

$0.99

$

In Stock, Qty 20+

0

92200

Kawasaki 92200-7002

WASHER

$3.49

$

In Stock, Qty 10

0
