FR651V-BS27 - Kawasaki Engine VALVE/CAMSHAFT Parts Diagram

Engine

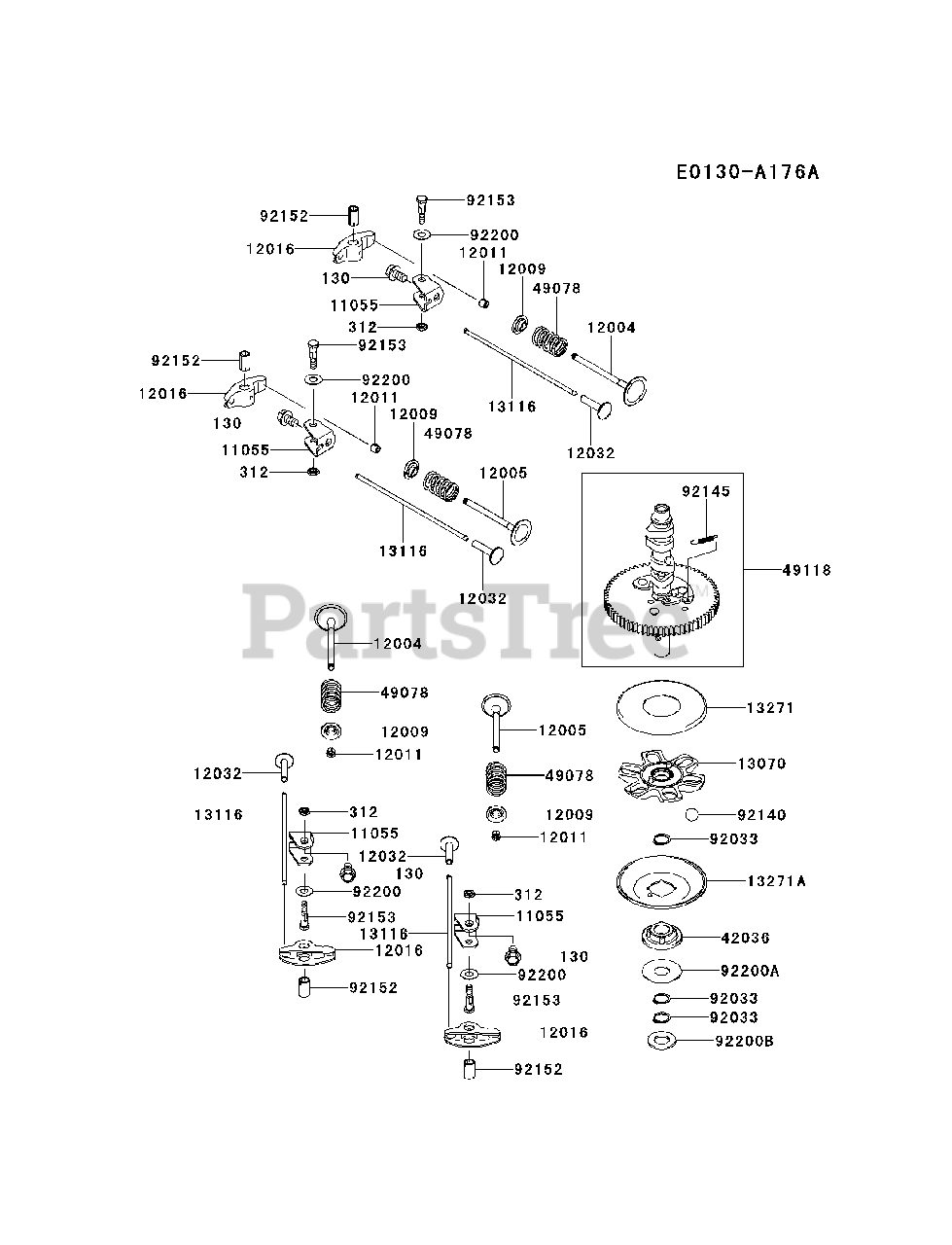

VALVE/CAMSHAFT Parts Diagram

  • Title
11055

Kawasaki 110557009

BRACKET
(Superseded to 11054-7018)

$3.49

$

In Stock, Qty 20+

0

12004

Kawasaki 12004-0705

VALVE-INTAKE
(Superseded to 12004-0733)

$25.99

$

In Stock, Qty 20+

0

12005

Kawasaki 12005-0720

VALVE-EXHAUST
(Superseded to 12005-0750)

$27.99

$

In Stock, Qty 20+

0

12009

Kawasaki 120097001

RETAINER-VALVE SPRING

$2.49

$

In Stock, Qty 20+

0

12011

$2.99

$

In Stock, Qty 20+

0

12016

Kawasaki 12016-2066

ARM-ROCKER
(Superseded to 120160040)

$13.99

$

In Stock, Qty 20+

0

12032

$8.99

$

In Stock, Qty 20+

0

13070

Kawasaki 130707017

GUIDE,GOVERNOR

$4.99

$

In Stock, Qty 11

0

13116

Kawasaki 13116-7007

ROD-PUSH
(Superseded to 13116-0725)

$9.49

$

In Stock, Qty 20+

0

13271

Kawasaki 132717007

PLATE
(Superseded to 13270-7003)

$5.49

$

In Stock, Qty 12

0

13271A

Kawasaki 132717021

PLATE,GOVERNOR
(Superseded to 13270-7002)

$5.49

$

In Stock, Qty 20+

0

42036

$5.99

$

Usually ships in 2-5 days

0

49078

Kawasaki 490787002

SPRING-ENGINE VALVE,IN

$6.99

$

In Stock, Qty 20+

0

49118

Kawasaki 491187022

CAMSHAFT-COMP

$

$

Not available

92033

Kawasaki 92033-0727

RING-SNAP
(Superseded to 92033-0778)

$0.99

$

In Stock, Qty 20+

0

92140

$

$

Not available

92145

Kawasaki 92145-7001

SPRING
(Superseded to 921451653)

$1.49

$

In Stock, Qty 8

0

92152

$5.49

$

In Stock, Qty 20+

0

92153

Kawasaki 921537100

BOLT,6X29.5

$3.49

$

In Stock, Qty 20+

0

92200

Kawasaki 922002151

WASHER,8.1X18X0.5

$1.49

$

In Stock, Qty 20+

0

92200A

Kawasaki 92200-7009

WASHER,16X42X0.91
(Superseded to 922000945)

$0.99

$

In Stock, Qty 11

0

92200B

Kawasaki 922007048

WASHER,16.3X30X2.28

$2.49

$

In Stock, Qty 7

0

130

Kawasaki 130AA0814

BOLT-FLANGED,8X14
(Superseded to 130B0814)

$

$

Not available

312

Kawasaki 312AA0600

NUT-HEX,6MM
(Superseded to 43032-002)

$0.99

$

In Stock, Qty 20+

0
