FR651V-AS07 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

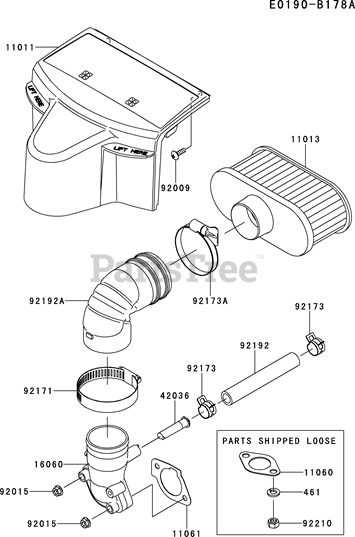

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11011

Kawasaki 11011-7065

CASE-AIR FILTER
(Superseded to 11011-0820)

$33.99

$

In Stock, Qty 15

0

11013

Kawasaki 11013-7049

ELEMENT-AIR FILTER
(Superseded to 110130752)

$17.99

$

In Stock, Qty 20+

0

11060

Kawasaki 11060-7016

GASKET,MUFFLER

$2.49

$

In Stock, Qty 20+

0

11061

Kawasaki 11061-7086

GASKET,CARBURETOR/PIPE-INTAKE

$1.99

$

In Stock, only 4 left!

0

16060

Kawasaki 16060-7035

PIPE-INTAKE
(Superseded to 160600048)

$43.99

$

Usually ships in 2-5 days

0

42036

Kawasaki 42036-7017

SLEEVE,BREATHER
(Superseded to 42036-7022)

$1.49

$

In Stock, Qty 20+

0

92009

Kawasaki 92009-2303

SCREW

$2.99

$

In Stock, Qty 7

0

92015

Kawasaki 92015-1367

NUT,FLANGED,6MM

$4.49

$

In Stock, only 2 left!

0

92171

Kawasaki 92171-7007

CLAMP
(Superseded to 92173-7010)

$8.49

$

In Stock, Qty 14

0

92173

Kawasaki 92173-7003

CLAMP

$2.49

$

In Stock, Qty 15

0

92173A

Kawasaki 92173-7007

CLAMP
(Superseded to 92173-1001)

$3.99

$

In Stock, Qty 20+

0

92192

Kawasaki 92192-7146

TUBE,12.6X18.6X118

$1.99

$

In Stock, only 2 left!

0

92192A

Kawasaki 92192-7165

TUBE

$13.99

$

Usually ships in 2-5 days

0

92210

Kawasaki 92210-7027

NUT,M8

$1.99

$

In Stock, Qty 6

0

461

Kawasaki 461DA0800

WASHER-SPRING,8MM
(Superseded to 92200-0918)

$0.99

$

In Stock, Qty 20+

0
