FR650 AC (FZBV) - Honda Tiller, Made in Japan (SN: FZBV-1000001 - FZBV-9999999) WHEEL SHAFT Parts Diagram

Tiller, Made in Japan

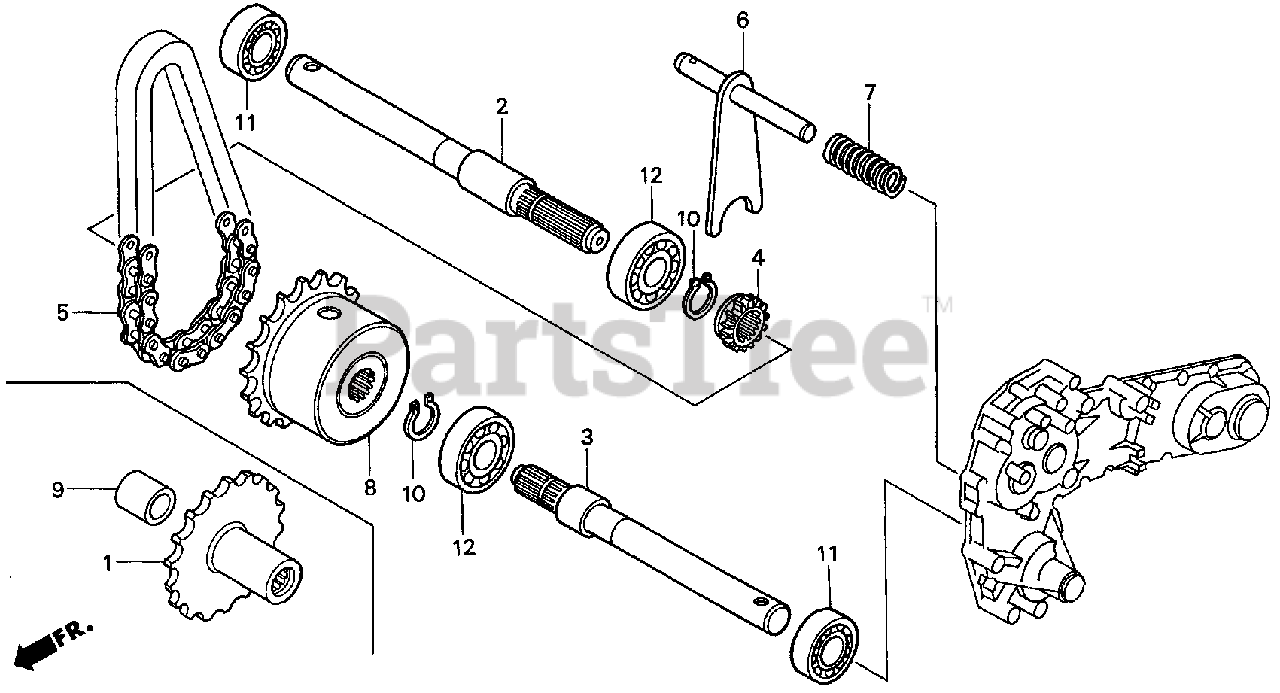

WHEEL SHAFT Parts Diagram

  • Title
1

Honda 23281-777-000

SPROCKET, DRIVEN

$275.99

$

Usually ships in 3-6 days

0

2

Honda 23371-777-610

SHAFT, R. WHEEL

$

$

Not available

3

Honda 23381-777-610

SHAFT, L. WHEEL

$

$

Not available

5

Honda 23861-777-003

CHAIN, FINAL

$63.99

$

Usually ships in 3-6 days

0

9

Honda 91559-777-000

COLLAR, WHEEL SHAFT

$11.99

$

Usually ships in 3-6 days

0

10

Honda 94510-20000

CIRCLIP, OUTER (20MM)

$1.99

$

Usually ships in 3-6 days

0

11

Honda 96100-60040-00

BEARING, RADIAL BALL (6004)

$20.99

$

In Stock, only 2 left!

0

12

Honda 96100-63040-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6304)

$18.99

$

Usually ships in 3-6 days

0
