FR650 AC (FZBV) - Honda Tiller, Made in Japan (SN: FZBV-1000001 - FZBV-9999999) TRANSMISSION CASE Parts Diagram

Tiller, Made in Japan

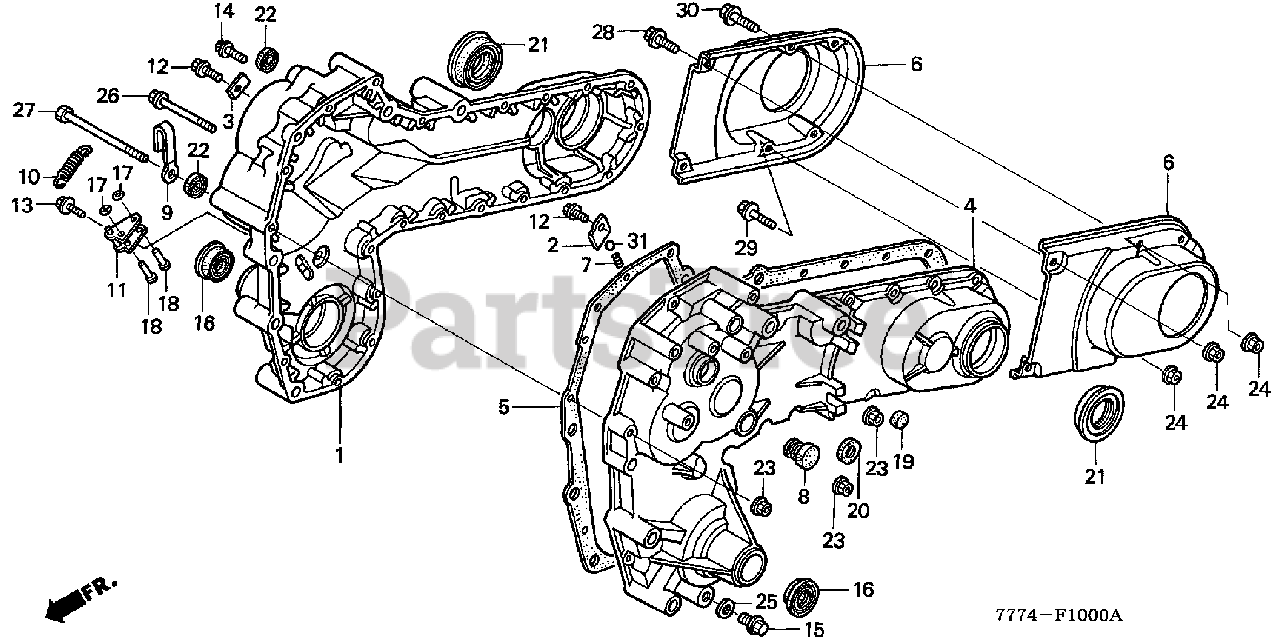

TRANSMISSION CASE Parts Diagram

  • Title

1

Honda 21111-777-000

CASE, R. TRANSMISSION

$

$

Not available

2

Honda 21163-777-000

PLATE, BALL STOPPER

$

$

Not available

3

Honda 21164-777-610

PLATE, CABLE STOPPER

$

$

Not available

4

Honda 21211-777-000

CASE, L. TRANSMISSION

$

$

Not available

5

Honda 21281-777-000

GASKET, TRANSMISSION CASE

$68.99

$

Usually ships in 3-6 days

0

6

Honda 21911-777-000

PROTECTOR, CASE

Note: Use up to Frame SN 1021912.

$

$

Not available

6

Honda 21911-777-010

SEE PART DETAILS - SUP; PROTECTOR, CASE

Note: Use from Frame SN 1021913.

$

$

Not available

7

Honda 24271-777-000

SPRING, BALL SETTING

$

$

Not available

8

Honda 25611-777-000

CAP, OIL HOLE

$10.99

$

Usually ships in 3-6 days

0

9

Honda 32901-MA1-000

CLIP, SUB-WIRE

$6.49

$

Usually ships in 3-6 days

0

10

Honda 41458-777-610

SPRING, DIFFERENTIAL LOCK LEVER

$

$

Not available

11

Honda 41461-777-610

ARM, DIFFERENTIAL LOCK

$

$

Not available

12

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$2.99

$

In Stock, only 4 left!

0

13

Honda 90017-ZV0-000

BOLT, FLANGE (6X18)

$2.49

$

Usually ships in 3-6 days

0

14

Honda 90104-777-000

BOLT, FLANGE (6X25)

$1.99

$

Usually ships in 3-6 days

0

15

Honda 90131-883-000

SEE PART DETAILS - SUP; BOLT, DRAIN PLUG (12X15)

$

$

Not available

15

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$4.99

$

In Stock, only 1 left!

0

16

Honda 90201-744-003

OIL SEAL (20X36X8)

$20.99

$

Usually ships in 3-6 days

0

17

Honda 90508-777-003

WASHER, SPECIAL (5MM)

$3.49

$

Usually ships in 3-6 days

0

18

Honda 90751-744-000

PIN, CHANGE (5X23)

$3.49

$

Usually ships in 3-6 days

0

19

Honda 90875-733-003

PLUG, SEALING (16) (ARAI)

$6.49

$

Usually ships in 3-6 days

0

20

Honda 91204-GK8-003

OIL SEAL (15X24X5)

$6.49

$

In Stock, only 1 left!

0

21

Honda 91252-777-003

OIL SEAL (40X55X7)

$25.99

$

Usually ships in 3-6 days

0

22

Honda 91253-706-003

OIL SEAL (12X22X6)

$12.99

$

Usually ships in 3-6 days

0

23

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 5

0

24

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 16

0

25

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, only 3 left!

0

26

Honda 95701-06080-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X80)

$3.49

$

Usually ships in 3-6 days

0

27

Honda 95701-06120-08

BOLT, FLANGE (6X120)

$4.99

$

Usually ships in 3-6 days

0

28

Honda 95701-08035-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35)

$1.99

$

Usually ships in 3-6 days

0

29

Honda 95701-08040-08

BOLT, FLANGE (8X40)

$2.99

$

Usually ships in 3-6 days

0

30

Honda 95701-08045-08

BOLT, FLANGE (8X45) (DENSO)

$2.99

$

In Stock, only 2 left!

0

31

Honda 96211-08000

BALL, STEEL (#8) (1/4)

$1.99

$

Usually ships in 3-6 days

0
