FR650 AC (FZBV) - Honda Tiller, Made in Japan (SN: FZBV-1000001 - FZBV-9999999) ROTARY SHAFT Parts Diagram

Tiller, Made in Japan

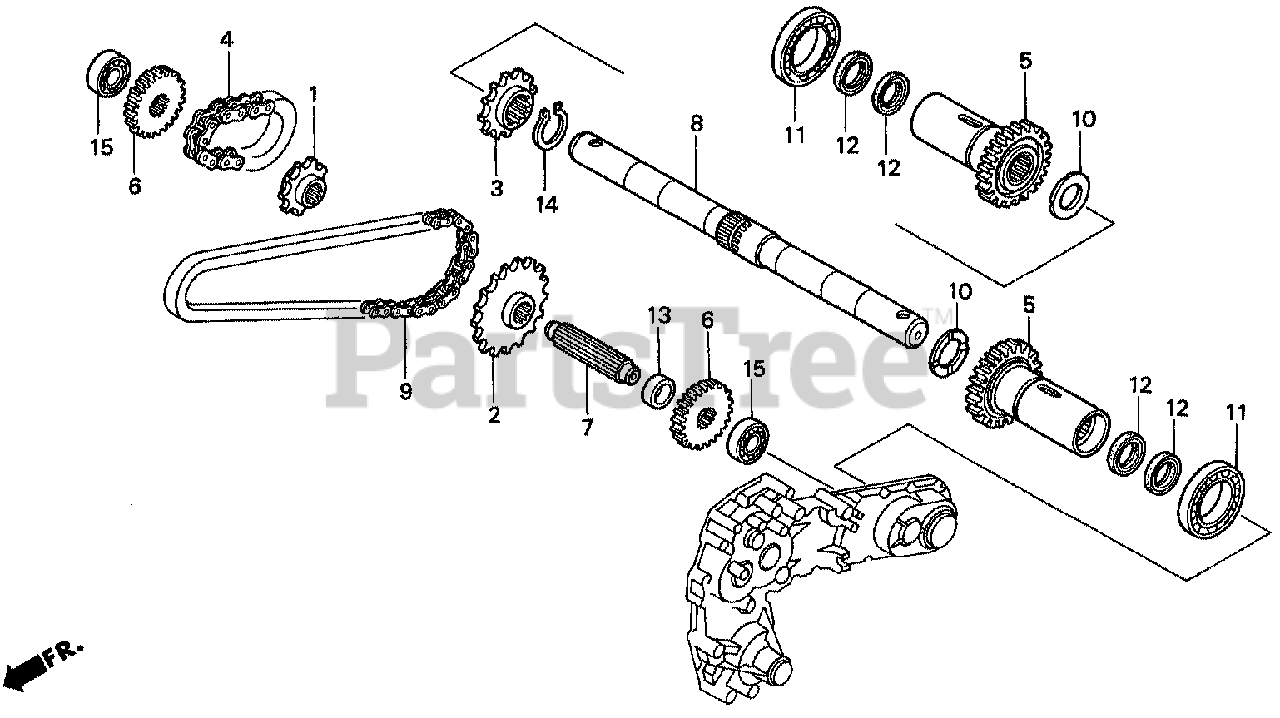

ROTARY SHAFT Parts Diagram

  • Title

1

Honda 23284-777-000

SPROCKET, ROTOR REVERSE DRIVEN

$

$

Not available

2

Honda 23287-777-000

SPROCKET, P.T.O. DRIVEN

$

$

Not available

3

Honda 23289-777-000

SPROCKET, ROTOR REVERSE DRIVEN

$

$

Not available

4

Honda 23867-777-003

CHAIN, P.T.O. REVERSE DRIVE

$

$

Not available

5

Honda 73210-777-000

GEAR, ROTOR DRIVEN

Note: Use up to Frame SN 1021912.

$

$

Not available

5

Honda 73210-777-010

GEAR, ROTOR DRIVEN

Note: Use from Frame SN 1021913.

$376.99

$

Usually ships in 3-6 days

0

6

Honda 73251-777-000

GEAR, ROTARY DRIVEN

$

$

Not available

7

Honda 73261-777-000

COUNTERSHAFT, ROTARY

$

$

Not available

8

Honda 73266-777-000

SHAFT, ROTARY

$306.99

$

Usually ships in 3-6 days

0

9

Honda 73571-777-003

CHAIN, ROTARY

$

$

Not available

10

Honda 90502-777-000

WASHER, THRUST (25MM)

$13.99

$

Usually ships in 3-6 days

0

11

Honda 91051-HA2-013

BEARING (40X62X12)

$43.99

$

Usually ships in 3-6 days

0

12

Honda 91251-777-003

OIL SEAL (25X35X6)

$11.99

$

Usually ships in 3-6 days

0

13

Honda 91556-777-000

COLLAR, ROTARY COUNTERSHAFT

$10.99

$

Usually ships in 3-6 days

0

14

Honda 94510-30000

CIRCLIP (OUTER) (30MM)

$1.99

$

Usually ships in 3-6 days

0

15

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202)

$12.99

$

In Stock, only 1 left!

0
