FR604 - Exmark 60" Front Runner Deck (SN: 600000 - 669999) (2006) Deck Group FR524 (Part 1) Parts Diagram

60" Front Runner Deck

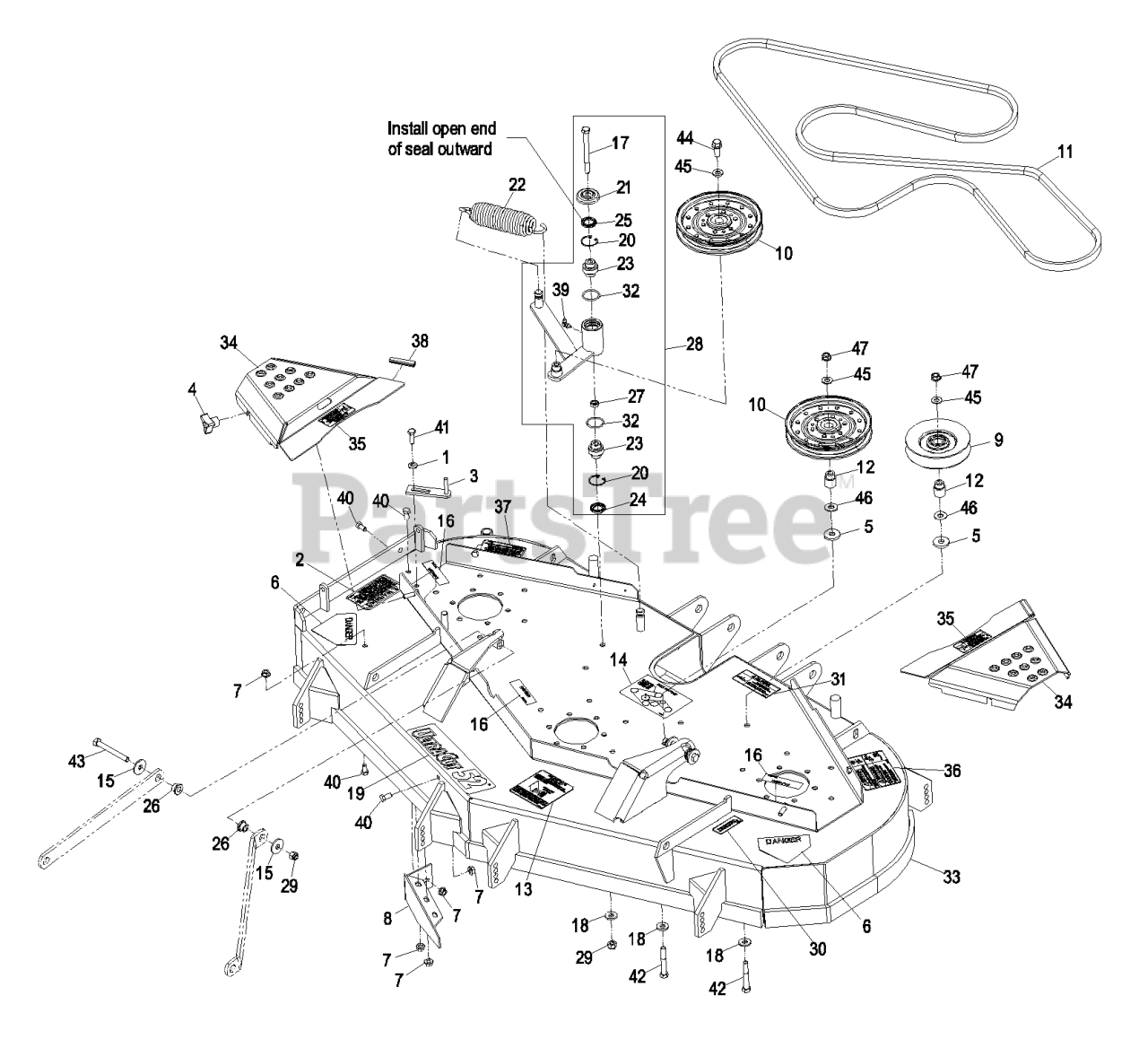

Deck Group FR524 (Part 1) Parts Diagram

  • Title

1

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 3 left!

0

2

Exmark 1-303508

DECAL-WARNING, DISCHARGE

$5.49

$

In Stock, Qty 20+

0

3

Exmark 1-322110

GUIDE-BELT

$12.99

$

In Stock, Qty 8

0

4

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

5

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

6

Exmark 1-403005

DECAL-DANGER

$5.49

$

In Stock, Qty 20+

0

7

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

8

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$51.99

$

In Stock, only 4 left!

0

9

Exmark 1-603805

PULLEY-IDLER

$54.99

$

In Stock, Qty 11

0

10

Exmark 1-633109

126-7685
(Superseded to 126-7685)

$62.99

$

In Stock, Qty 20+

0

11

Exmark 1-633366

BELT,BLADE DRIVE 52
(Superseded to 1-633366-SL)

$116.99

$

In Stock, Qty 6

0

12

Exmark 1-633456

BUSHING-IDLER

$4.99

$

In Stock, Qty 20+

0

13

Exmark 1-633922

DECAL,ANTISCALP

$6.49

$

In Stock, Qty 9

0

14

Exmark 1-643222

DECAL,BELT ROUTING

$7.99

$

In Stock, Qty 6

0

15

Exmark 63-8410

WASHER

$1.99

$

In Stock, Qty 13

0

16

Exmark 98-5954

DECAL-COVER, MISSING

$9.49

$

In Stock, Qty 7

0

17

Exmark 98-5961

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

18

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

19

Exmark 103-1145

DECAL,ULTRACUT 52

$10.99

$

In Stock, only 3 left!

0

20

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

21

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 20+

0

22

Exmark 103-3330

116-6317
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 20+

0

23

Exmark 103-3504

BEARING-SPHERICAL

$25.99

$

In Stock, Qty 20+

0

24

Exmark 103-3505

SEAL-LIP, DOUBLE

$5.49

$

In Stock, Qty 20+

0

25

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 20+

0

26

Exmark 103-3900

SPACER-STRUT

$8.49

$

In Stock, Qty 13

0

27

Exmark 103-5677

SPACER

$2.99

$

In Stock, Qty 13

0

28

Exmark 103-5693

KIT,DECK IDLER LZ/XP

Note: Kit also includes items #18 & #29.

$153.99

$

In Stock, Qty 11

0

29

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

30

Exmark 109-3148

DECAL,BOLT TORQUE

$3.49

$

In Stock, Qty 17

0

31

Exmark 103-8425

DECAL-DRIVELINE

$11.99

$

Usually ships in 3-6 days

0

32

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

33

Exmark 109-4383

DISCONTINUED

$

$

Not available

34

Exmark 109-2393

ASM,BELT SHIELD W/DECAL

$

$

Not available

35

Exmark 109-2354

DECAL,CRUSHING HAZARD

$

$

Not available

36

Exmark 109-2359

DECAL,DECK WARNING

$

$

Not available

37

Exmark 109-2376

DECAL,CRUSHING HAZARD

$

$

Not available

38

Exmark 109-2985

TRIM

$

$

Not available

39

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

40

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

41

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

42

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

43

Exmark 323-20

SCREW-HH

$3.99

$

In Stock, Qty 12

0

44

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

45

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

46

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

47

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

48

Exmark 109-4382

ASM,FR524 DECK ASM W/DECA

Note: Complete deck assembly includes all items from "Deck Group" & "Deck Group (Cont.)" except drive shaft assembly, drive shaft assembly hardware, deck chain, and deck chain hardware on "Deck Group (Cont.)".

$

$

Not available

Exmark 103-9140

PAINT, TOUCH UP

$22.99

$

In Stock, only 1 left!

0

Exmark 1-850337

PAINT,SPRAY RED

$33.99

$

In Stock, Qty 16

0
