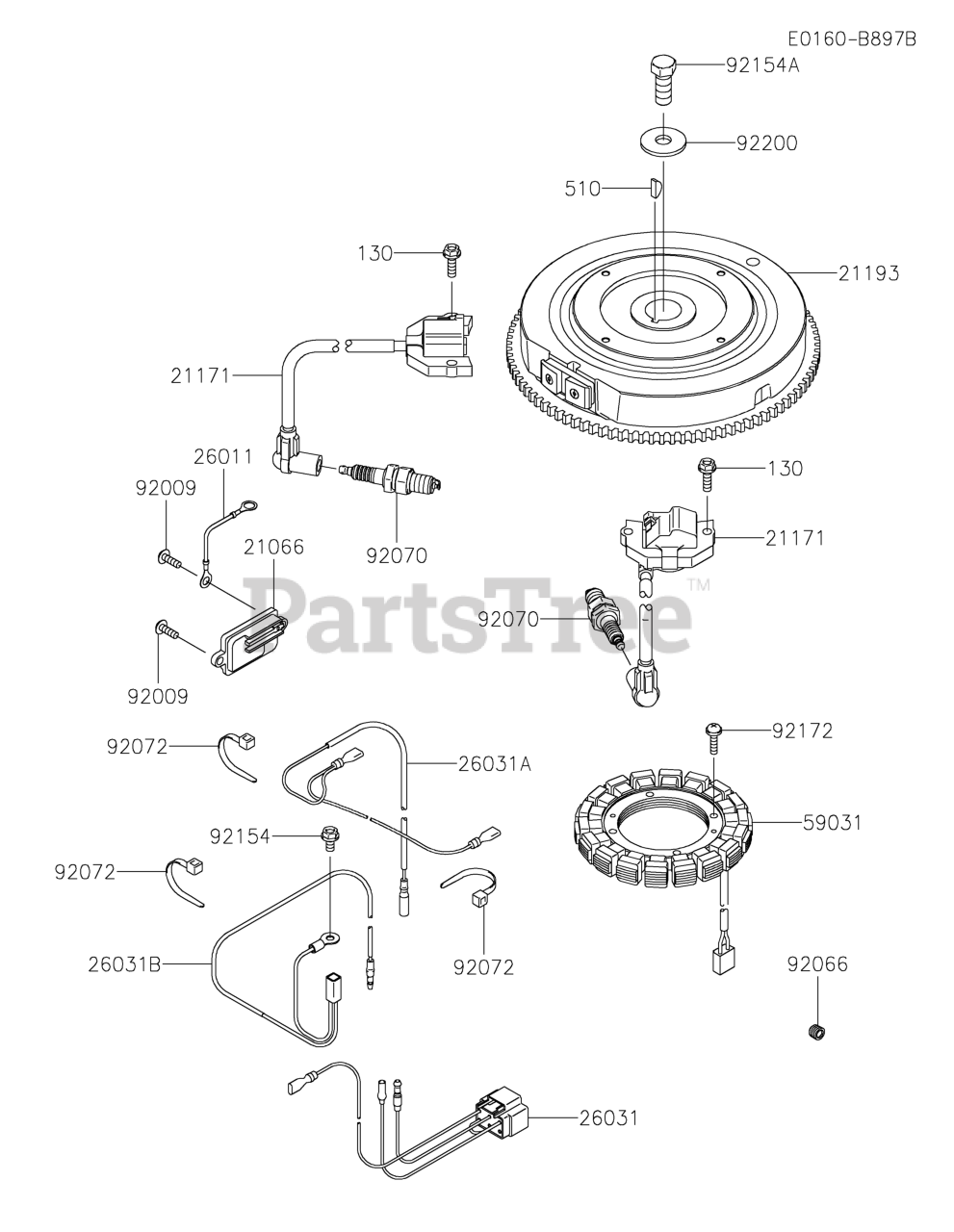

FR600V-GS06 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

21066

Kawasaki 21066-7017

REGULATOR-VOLTAGE

$52.99

$

In Stock, Qty 20+

0

21171

Kawasaki 21171-0740

COIL-ASSY-IGNITION

$77.99

$

In Stock, Qty 20+

0

21193

Kawasaki 21193-0719

FLYWHEEL-ASSY

$264.99

$

Usually ships in 2-5 days

0

26011

Kawasaki 26011-2234

WIRE-LEAD

$2.49

$

In Stock, only 2 left!

0

26031

Kawasaki 26031-1625

HARNESS
(Superseded to 26031-7044)

$23.99

$

In Stock, only 2 left!

0

26031A

Kawasaki 26031-7040

HARNESS

$5.99

$

In Stock, Qty 20+

0

26031B

Kawasaki 26031-7047

HARNESS

$9.49

$

In Stock, Qty 5

0

59031

Kawasaki 59031-7017

COIL-CHARGING

$127.99

$

In Stock, Qty 20+

0

92009

Kawasaki 92009-2303

SCREW

$2.99

$

In Stock, Qty 15

0

92066

Kawasaki 92066-0881

PLUG

$4.49

$

In Stock, only 4 left!

0

92070

Kawasaki 92070-7004

PLUG-SPARK,BPR4ES
(Superseded to BPR4ES)

$3.99

$

In Stock, Qty 20+

0

92072

Kawasaki 92072-0911

BAND

$

$

Not available

92154

Kawasaki 92154-2938

BOLT,6X12

$0.99

$

In Stock, Qty 20+

0

92154A

Kawasaki 92154-7003

BOLT,12X30

$4.99

$

In Stock, Qty 12

0

92172

Kawasaki 92172-7018

SCREW,5X20

$0.99

$

In Stock, Qty 9

0

92200

Kawasaki 92200-7002

WASHER

$3.49

$

In Stock, Qty 6

0

130

Kawasaki 130BA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)

$3.49

$

In Stock, Qty 20+

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 14

0
