FR600V-BS15 - Kawasaki Engine PISTON/CRANKSHAFT Parts Diagram

Engine

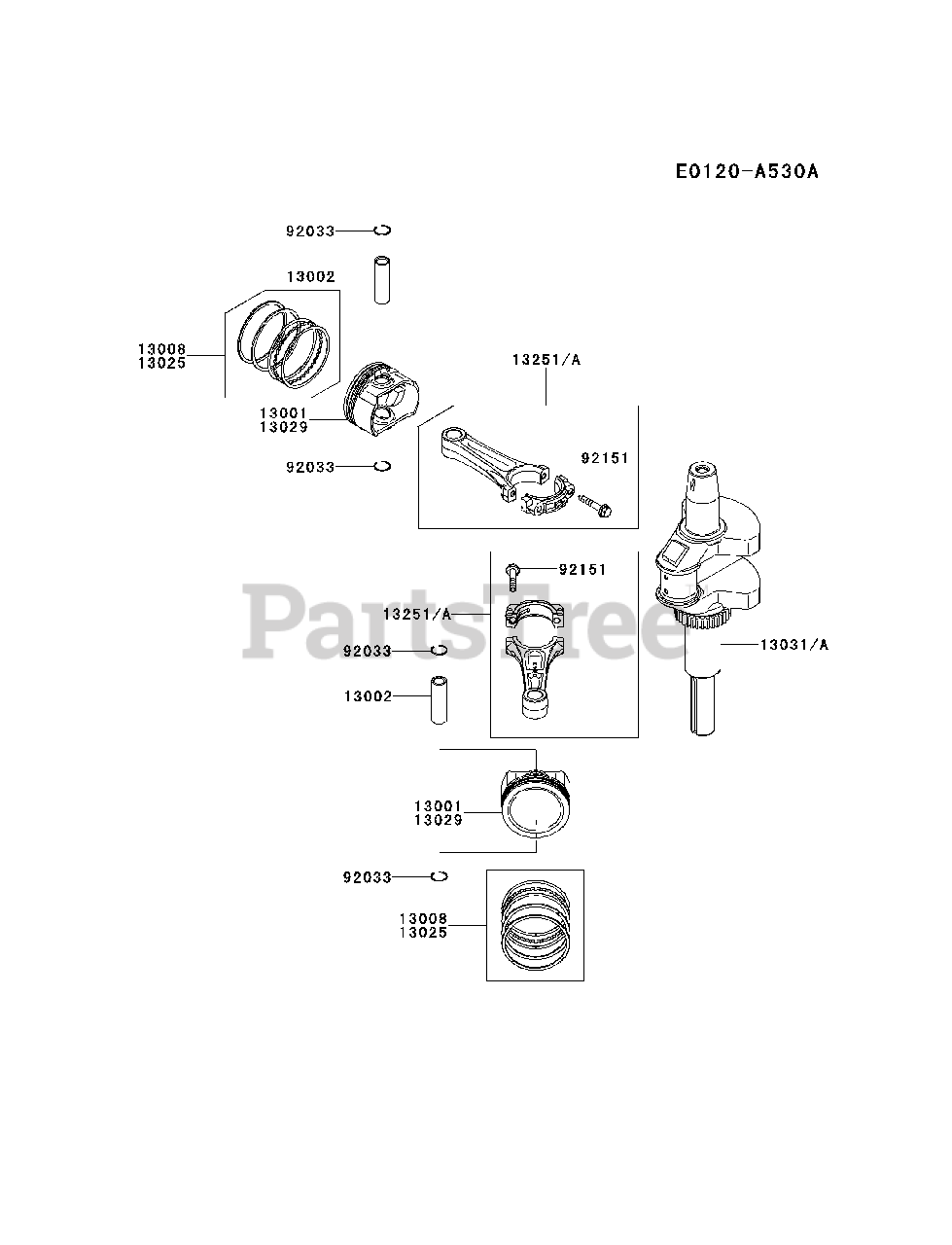

PISTON/CRANKSHAFT Parts Diagram

  • Title

13001

Kawasaki 130017031

PISTON-ENGINE

$59.99

$

In Stock, Qty 8

0

13002

Kawasaki 130027001

PIN-PISTON

$4.99

$

In Stock, Qty 11

0

13008

Kawasaki 130087006

RING-SET-PISTON

$

$

Not available

13025

Kawasaki 130257010

RING-SET-PISTON L,0.50

$47.99

$

In Stock, Qty 8

0

13029

Kawasaki 130297011

PISTON-ENGINE L,0.50

$59.99

$

In Stock, only 1 left!

0

13031

Kawasaki 130310814

CRANKSHAFT-COMP

$250.99

$

Usually ships in 2-5 days

0

13031A

Kawasaki 13031-7097

CRANKSHAFT-COMP
(Superseded to 13031-0814)

Note: Substitute part, supplied until the stock is exhausted.

$250.99

$

Usually ships in 2-5 days

0

13251

Kawasaki 132510718

ROD-ASSY-CONNECTING
(Superseded to 13251-7021)

$

$

Not available

13251A

Kawasaki 13251-7021

ROD-ASSY-CONNECTING
(Superseded to 132510718)

Note: Substitute part, supplied until the stock is exhausted.

$

$

Not available

92033

Kawasaki 92033-0725

RING-SNAP

$0.99

$

In Stock, Qty 11

0

92151

Kawasaki 92151-7017

BOLT,6X35
(Superseded to 921542842)

$1.49

$

In Stock, Qty 20+

0
