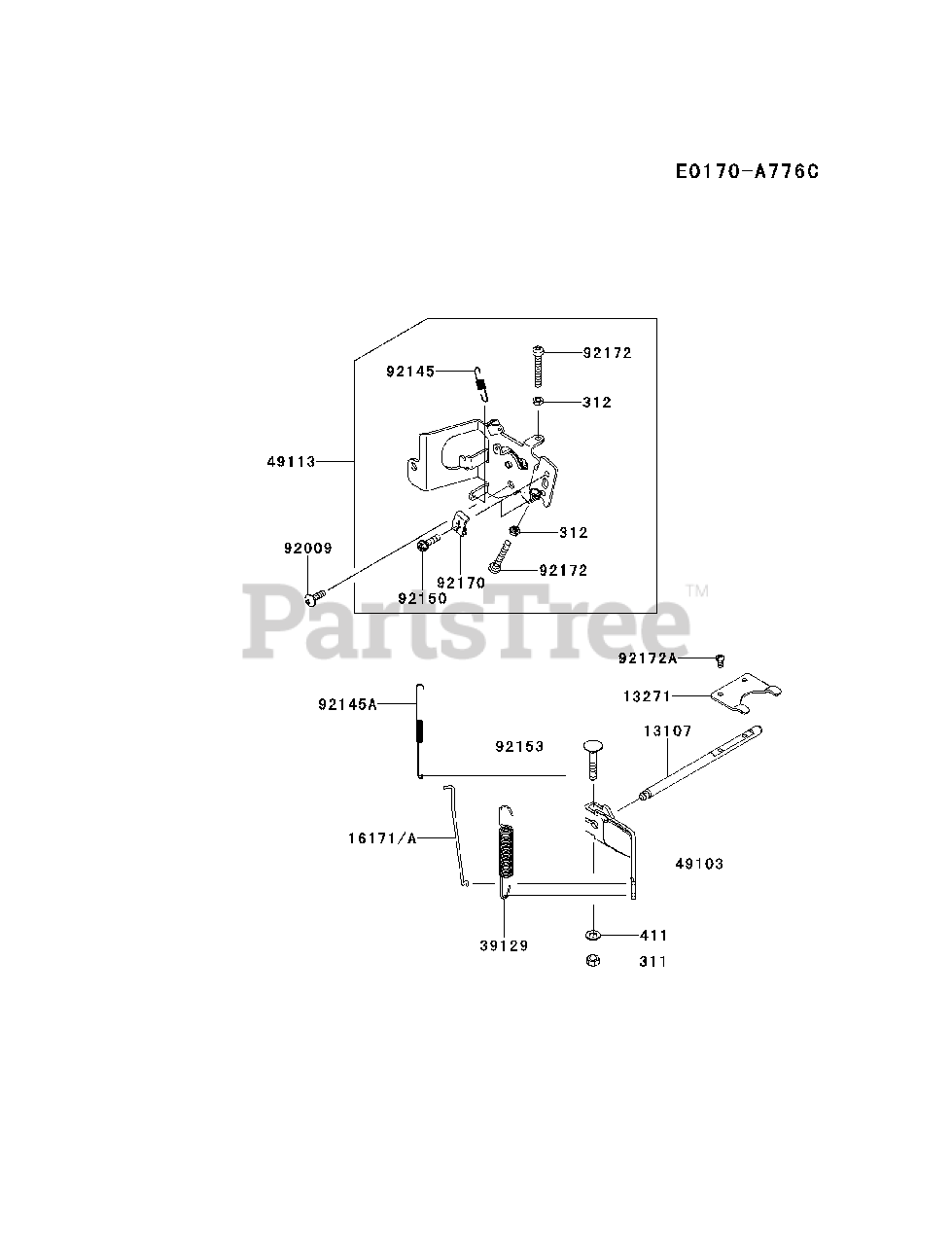

FR600V-BS15 - Kawasaki Engine CONTROL-EQUIPMENT Parts Diagram

Engine

CONTROL-EQUIPMENT Parts Diagram

  • Title

13107

Kawasaki 131077049

SHAFT

$12.99

$

In Stock, only 4 left!

0

13271

Kawasaki 132717038

PLATE

$3.49

$

In Stock, Qty 9

0

16171

Kawasaki 16171-0035

LINK

$

$

Not available

16171A

Kawasaki 16171-7025

LINK
(Superseded to 16171-0035)

Note: Substitute part, supplied until the stock is exhausted.

$

$

Not available

39129

Kawasaki 391290725

SPRING-GOVERNOR
(Superseded to 39129-7033)

$4.99

$

In Stock, Qty 10

0

49103

Kawasaki 491037017

ARM-GOVERNOR

$5.99

$

Usually ships in 2-5 days

0

49113

Kawasaki 49113-0725

PANEL-COMP-CONTROL
(Superseded to 491130047)

$

$

Not available

92009

Kawasaki 920092303

SCREW

$2.99

$

In Stock, Qty 20+

0

92145

Kawasaki 92145-7004

SPRING
(Superseded to 92145-7032)

$0.99

$

In Stock, Qty 20+

0

92145A

Kawasaki 92145-7057

SPRING

$3.99

$

In Stock, Qty 20+

0

92150

Kawasaki 921502182

BOLT,5X18

$0.99

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-7033

BOLT,6X35

$

$

Not available

92170

Kawasaki 921707001

CLAMP

$2.99

$

In Stock, Qty 20+

0

92172

Kawasaki 921720792

SCREW,5X35

$1.99

$

In Stock, Qty 12

0

92172A

Kawasaki 921720870

SCREW,4X8

$0.99

$

In Stock, only 4 left!

0

311

Kawasaki 311BA0600

NUT-HEX,6MM
(Superseded to 310G0600)

$

$

Not available

312

Kawasaki 312AA0500

NUT-HEX,5MM

$0.99

$

In Stock, Qty 6

0

411

Kawasaki 411AA0600

WASHER-PLAIN,6MM
(Superseded to 411B0600)

$4.49

$

In Stock, Qty 12

0
