FR600V-BS15 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

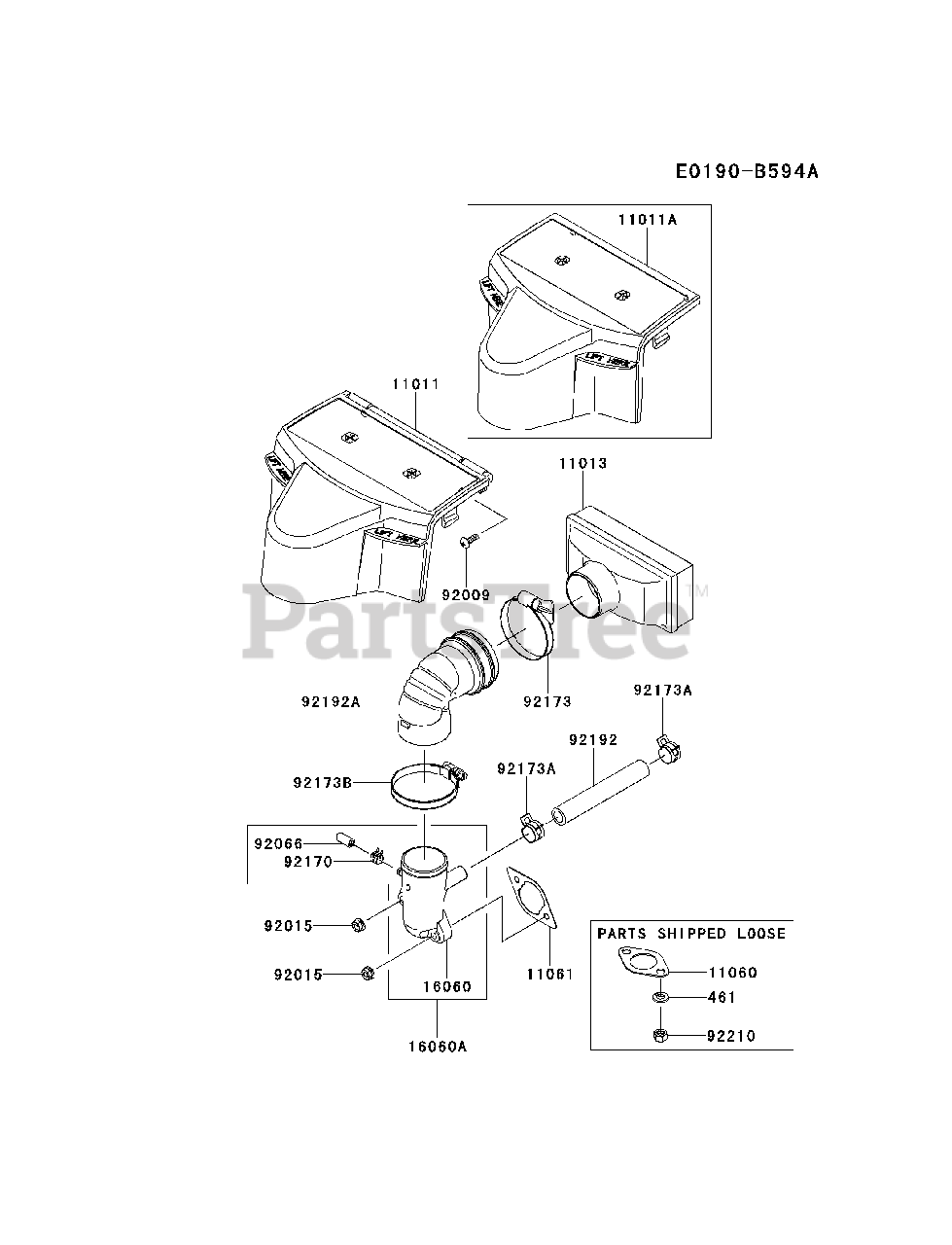

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11011

Kawasaki 110110821

CASE-AIR FILTER
(Superseded to 11011-7068)

$33.99

$

In Stock, Qty 7

0

11011A

Kawasaki 11011-7068

CASE-AIR FILTER
(Superseded to 11011-0821)

Note: Substitute part, supplied until the stock is exhausted.

$33.99

$

In Stock, Qty 7

0

11013

Kawasaki 110130727

ELEMENT-AIR FILTER
(Superseded to 99999-0383)

$13.99

$

In Stock, Qty 20+

0

11060

Kawasaki 110607016

GASKET,MUFFLER

$2.49

$

In Stock, Qty 20+

0

11061

Kawasaki 110617095

GASKET,AIR CLEANER

$4.49

$

In Stock, Qty 20+

0

16060

Kawasaki 160600740

PIPE-INTAKE

$12.99

$

Usually ships in 2-5 days

0

16060A

Kawasaki 160600742

PIPE-INTAKE

$14.99

$

In Stock, Qty 8

0

92009

Kawasaki 920092303

SCREW

$2.99

$

In Stock, Qty 20+

0

92015

Kawasaki 920151367

NUT,FLANGED,6MM

$4.49

$

In Stock, Qty 20+

0

92066

Kawasaki 920660095

PLUG

$5.49

$

In Stock, Qty 14

0

92170

Kawasaki 921702042

CLAMP

$1.49

$

In Stock, Qty 15

0

92173

Kawasaki 921731001

CLAMP

$3.99

$

In Stock, Qty 20+

0

92173A

Kawasaki 921737003

CLAMP

$2.49

$

In Stock, Qty 15

0

92173B

Kawasaki 921737009

CLAMP

$8.49

$

In Stock, only 2 left!

0

92192

Kawasaki 921927146

TUBE,12.6X18.6X118

$1.99

$

In Stock, Qty 20+

0

92192A

Kawasaki 921927164

TUBE,A/C

$13.99

$

Usually ships in 2-5 days

0

92210

Kawasaki 922107027

NUT,M8

$1.99

$

In Stock, Qty 20+

0

461

Kawasaki 461DA0800

WASHER-SPRING,8MM
(Superseded to 92200-0918)

$0.99

$

In Stock, Qty 20+

0
