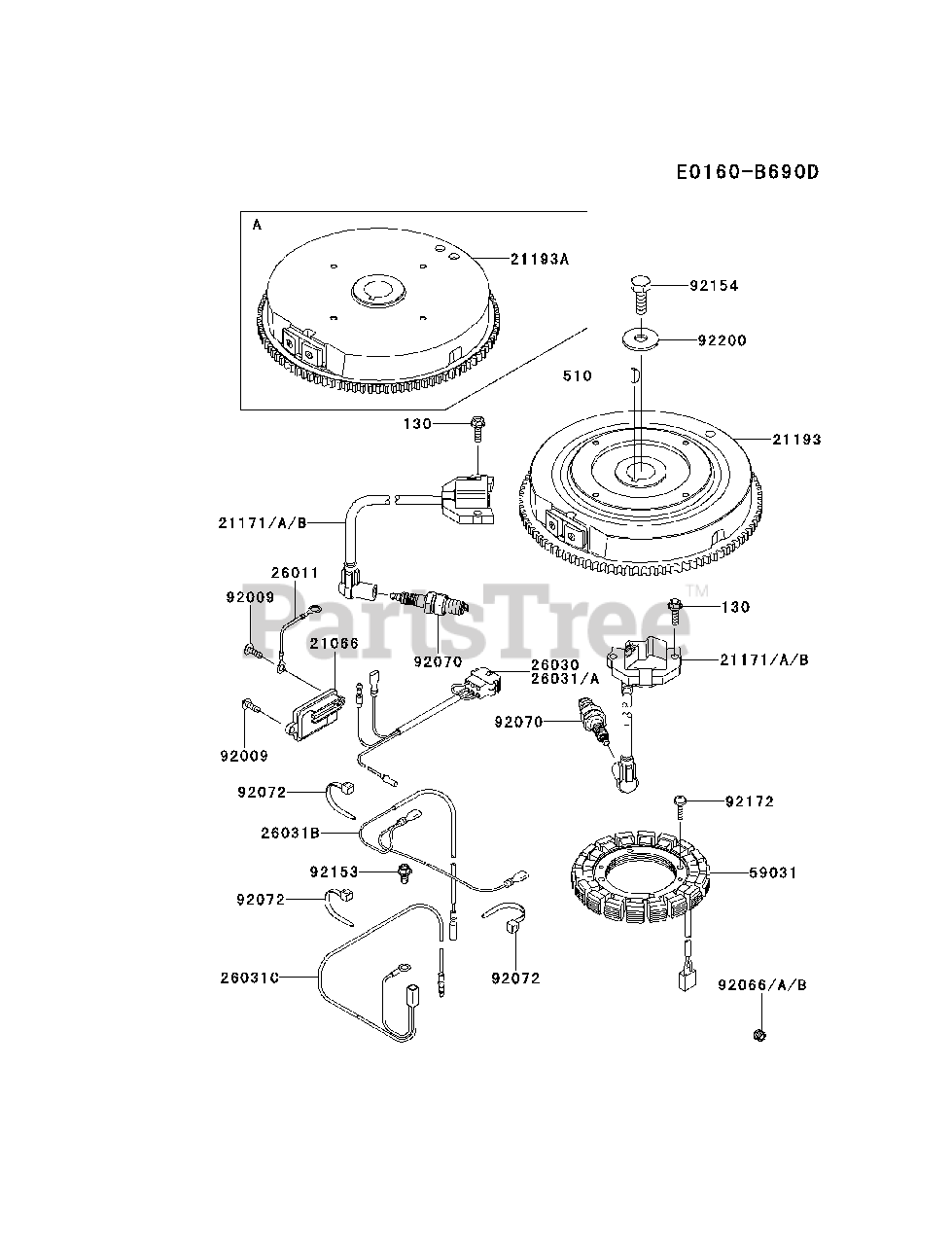

FR600V-AS04 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

21066

Kawasaki 21066-7017

REGULATOR-VOLTAGE

$52.99

$

In Stock, Qty 20+

0

21171A

Kawasaki 21171-0711

COIL-ASSY-IGNITION
(Superseded to 211710743)

$77.99

$

In Stock, Qty 20+

0

21171B

Kawasaki 21171-7047

COIL-ASSY-IGNITION
(Superseded to 21171-0711)

$77.99

$

In Stock, Qty 20+

0

21193A

Kawasaki 21193-7061

FLYWHEEL-ASSY
(Superseded to 99999-0400)

$

$

Not available

26011

Kawasaki 26011-7025

WIRE-LEAD,L=95

$2.99

$

In Stock, Qty 9

0

26030

Kawasaki 26030-7008

HARNESS
(Superseded to 26031-1624)

$22.99

$

In Stock, Qty 13

0

26031

Kawasaki 26031-1624

HARNESS
(Superseded to 26030-7008)

$22.99

$

In Stock, Qty 13

0

26031B

Kawasaki 26031-7040

HARNESS

$5.99

$

In Stock, Qty 20+

0

26031C

Kawasaki 26031-7047

HARNESS

$9.49

$

In Stock, Qty 9

0

59031

Kawasaki 59031-7017

COIL-CHARGING

$127.99

$

In Stock, Qty 20+

0

92009

Kawasaki 92009-2303

SCREW

$2.99

$

In Stock, Qty 20+

0

92066A

Kawasaki 92066-0762

PLUG
(Superseded to 920660881)

$4.49

$

In Stock, Qty 6

0

92066B

Kawasaki 92066-7026

PLUG
(Superseded to 920660881)

$4.49

$

In Stock, Qty 6

0

92070

Kawasaki 92070-7004

PLUG-SPARK,BPR4ES,SOLID
(Superseded to BPR4ES)

Note: NGK

$3.49

$

In Stock, Qty 20+

0

92072

Kawasaki 92072-7003

BAND

$1.49

$

In Stock, only 3 left!

0

92153

Kawasaki 92153-7043

BOLT,6X12

$

$

Not available

92154

Kawasaki 92154-7003

BOLT,12X30

$4.99

$

In Stock, Qty 20+

0

92172

Kawasaki 92172-7018

SCREW,5X20

$0.99

$

In Stock, Qty 20+

0

92200

Kawasaki 92200-7002

WASHER

$3.49

$

In Stock, Qty 7

0

130

Kawasaki 130AA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)

$3.49

$

In Stock, Qty 20+

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
