FR600 AC/D (FZAV) - Honda Tiller, Made in Japan (SN: FZAV-2010384 - FZAV-2099999) ROTARY COVER Parts Diagram

Tiller, Made in Japan

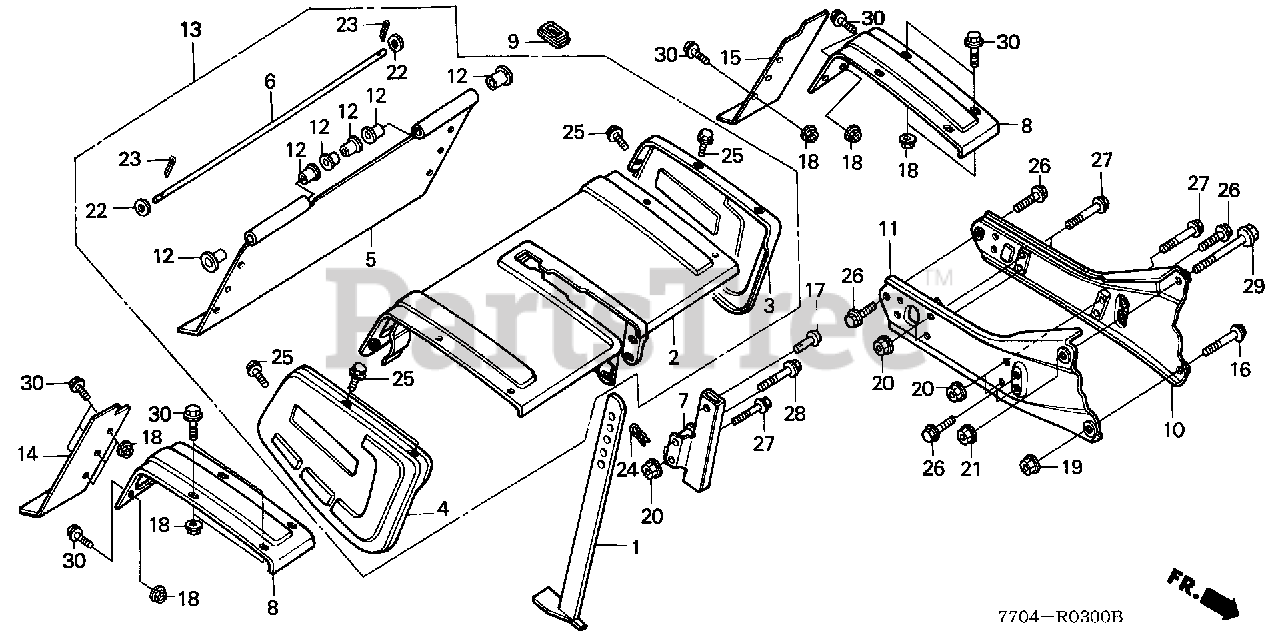

ROTARY COVER Parts Diagram

  • Title
1

Honda 72481-770-000ZC

BAR, DRAG *R280* (POWER RED)

$84.99

$

Usually ships in 3-6 days

0

2

Honda 76101-723-750

COVER, ROTARY

$321.99

$

Usually ships in 3-6 days

0

3

Honda 76102-723-750

COVER, L. ROTARY

$140.99

$

Usually ships in 3-6 days

0

4

Honda 76103-723-750

COVER, R. ROTARY

$140.99

$

Usually ships in 3-6 days

0

5

Honda 76104-770-700

SPLASH GUARD

$

$

Not available

6

Honda 76105-723-750

SHAFT, SPLASH GUARD

$34.99

$

Usually ships in 3-6 days

0

7

Honda 76112-723-751

HOLDER, DRAG BAR

$38.99

$

Usually ships in 3-6 days

0

8

Honda 76115-723-751

COVER, ROTARY EXTENSION

Note: (Optional).

$69.99

$

Usually ships in 3-6 days

0

9

Honda 76118-723-750

GROMMET, ROTARY COVER

$11.99

$

Usually ships in 3-6 days

0

10

Honda 76122-770-000

FRAME, L. ROTARY

$191.99

$

Usually ships in 3-6 days

0

11

Honda 76123-770-000

FRAME, R. ROTARY

$191.99

$

Usually ships in 3-6 days

0

12

Honda 76317-952-000

BUSH, DISCHARGE GUARD

$4.99

$

Usually ships in 3-6 days

0

13

Honda 76510-770-700ZC

COVER, ROTARY *R280* (POWER RED)

$

$

Not available

14

Honda 76563-770-700ZB

SPLASH GUARD, R. EXTENSION *R280* (POWER RED)

Note: (Optional).

$55.99

$

Usually ships in 3-6 days

0

15

Honda 76564-770-700ZB

SPLASH GUARD, L. EXTENSION *R280* (POWER RED)

Note: (Optional).

$55.99

$

Usually ships in 3-6 days

0

16

Honda 90159-437-000

BOLT, HEX. (8X50)

$

$

Not available

17

Honda 90757-723-750

PIN (10X30)

$8.49

$

Usually ships in 3-6 days

0

18

Honda 94050-06080

NUT, FLANGE (6MM)

Note: (Optional).

$0.99

$

In Stock, only 3 left!

0

19

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

20

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 15

0

21

Honda 94050-10000

NUT, FLANGE (10MM)

$1.99

$

In Stock, Qty 6

0

22

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

23

Honda 94201-25300

PIN, SPLIT (2.5X30)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 94252-10100

PIN, LOCK (10MM)

$

$

Not available

25

Honda 95701-06010-08

BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 20+

0

26

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.49

$

In Stock, only 3 left!

0

27

Honda 95701-08050-08

BOLT, FLANGE (8X50)

$3.49

$

Usually ships in 3-6 days

0

28

Honda 95701-08055-08

BOLT, FLANGE (8X55)

$3.49

$

Usually ships in 3-6 days

0

29

Honda 95801-10105-00

BOLT, FLANGE (10X105)

$

$

Not available

30

Honda 95701-06010-08

BOLT, FLANGE (6X10)

Note: (Optional).

$2.49

$

In Stock, Qty 20+

0
